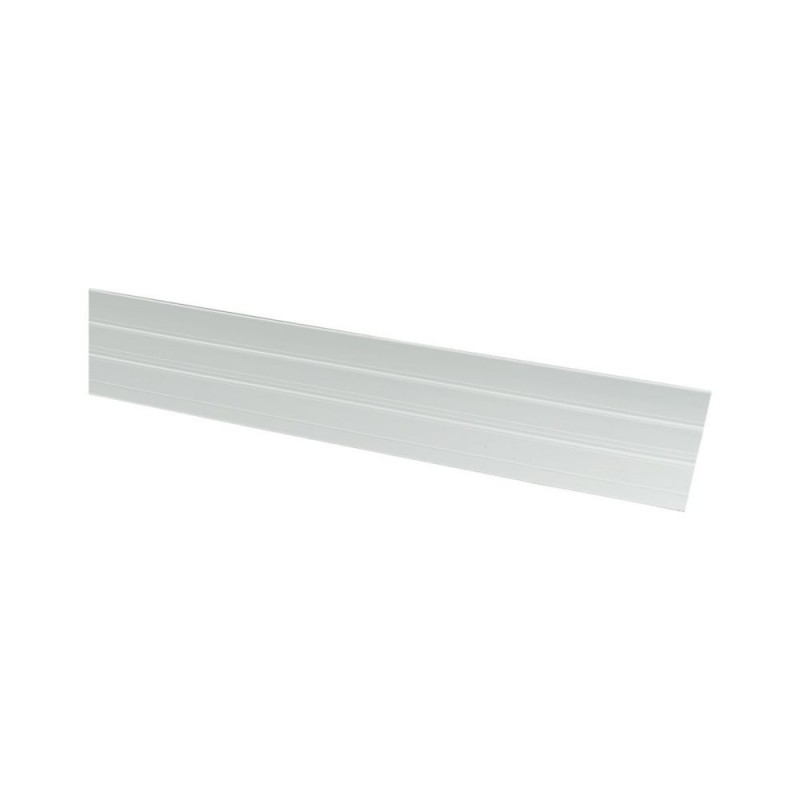

BBC-BT-NA 107172 Y7-107172 EATON ELECTRIC Bottom plate, B 1100 mm, UL approved View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BBC-BT-NA 107172 Y7-107172 EATON ELECTRIC Bottom plate, B 1100 mm, UL approved

BBC-BT-NA

107172

Y7-107172

EATON-MOELLER

Bottom plate, B=1100 mm, UL approved

BBC-BT-NA

UL bottom plate, UL approved, for SASY60i 60-mm system

More details


Energy distribution systems > Accessories/spare parts for busbars

Connection Accessories for Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $138.67
Unit price: $138.67
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Bottom plate, B=1100 mm, UL approved
UL bottom plate, UL approved, for SASY60i 60-mm system

General specifications
Product name
Eaton xEffect SASY 60i terminal plate
Part no.
BBC-BT-NA
EAN
4015081069354
Product Length/Depth
1010 millimetre
Product height
10 millimetre
Product width
224 millimetre
Product weight
0.698 kilogram
Compliances
IEC 60439-1
CSA-C22.2 No. 14
UL CSA09 (refer to approbation report)
CE marking
UL508A
RoHS conform
Certifications
North America (UL listed, CSA certified)
UL (Category Control Number NMTR, NMTR7)
CSA (File No. 236217)
CSA (Class No. 3211-37)
Specially designed for North America
UL (File No. E300273)
Product Tradename
xEffect SASY 60i
Product Type
Busbar system component
Product Sub Type
Terminal plate
Delivery program
Type
60 mm system
System for flat busbar
System for profile busbars
Accessory/spare part type
Bottom plate
Spare part
Accessory
Technical Data - Electrical
Voltage rating (UL CSA 13)
Max. 600 V AC
Technical Data - Mechanical
Material
Silicon free, chlorine free
Degree of protection
Feeder circuits
Design verification as per IEC/EN 61439 - technical data
Temperature resistance
Up to 110 °C
Additional information
Features
Self-extinguishing acc. UL 94
Functions
UL bottom plate
Current limiting circuit breaker, refer to approbation report
Accessory
Special features
For use when the air gap between the busbars and the mounting plate is not sufficient.
Used with
BBS-3/FL
Feeder circuits
BBS-3/FL-NA
BBS-3/PR
System for flat busbar
System for profile busbars
60 mm system

Technical data ETIM 9.0

Energy distribution systems (EG000015) / Accessories/spare parts for busbars (EC002270)
Electric engineering, automation, process control engineering / Electrical installation, device / Terminal (not overhead line) / Terminal (not overhead line, accessories) (ecl@ss13-27-14-11-92 [AFR653008])
Type of accessory/spare part
Bottom plate
Accessory
Yes
Spare part
Yes

ETIM for 107172 Power distribution systems (EC002270)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Bottom plate
Accessory (EF013236) Yes
Spare part (EF013237) Yes
