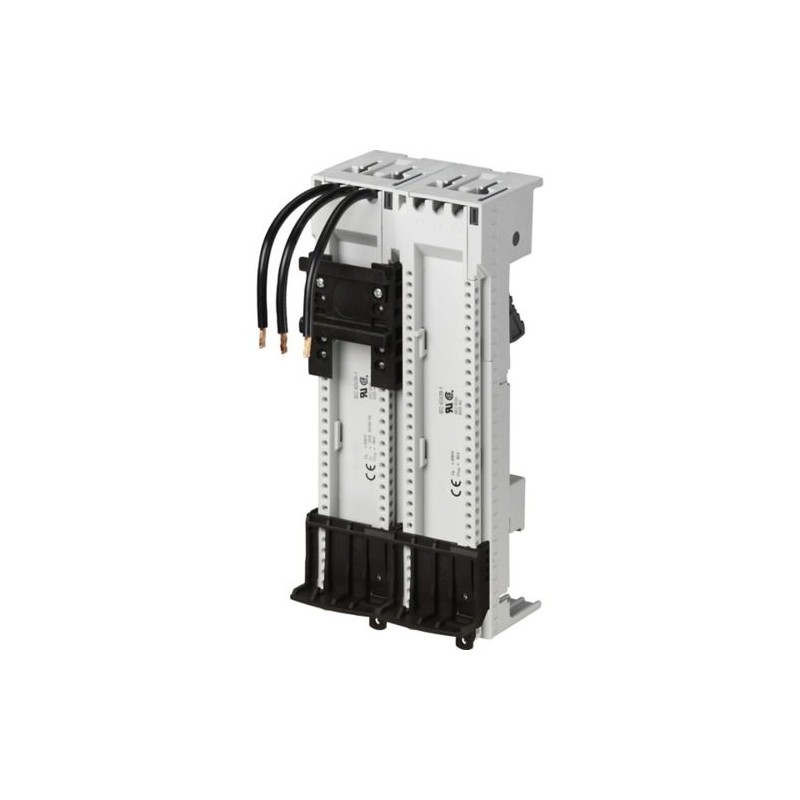

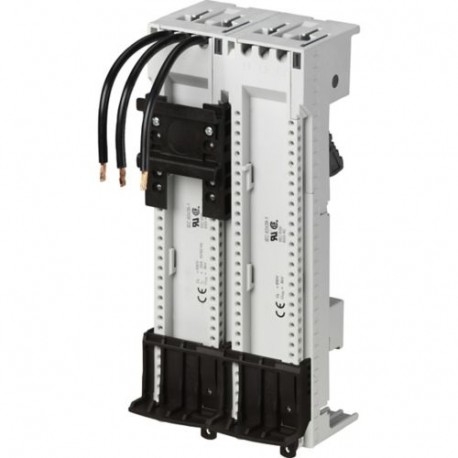

BBA0R-25-PI 199468 EATON ELECTRIC Adapter for busbars 90mm 25A 1TS Push-in
BBA0R-25-PI
199468
Y7-199468
EATON-MOELLER
2
Adapter for busbars 90mm 25A 1TS; Push-in
90mm busbar adapter for 60mm busbar system, one mounting rail, three prefabricated cables (AWG12/4 square millimeter) for connection of switching device, can be used for motor-protective circuit-breaker PKZM0, PKE and reversing starter/ MSC-R with contactor DILM7 to DILM15, rated operational current: 25A
Low-voltage industrial components > Busbar adapter
Circuit Breakers PKZ
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Delivery program
Technical data - electrical
Push in terminals
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Additional information
| Feature Name | Feature Value |
|---|---|
| Mounting rail armament (EF003700) | 1 mounting rail |
| Type of electric connection (EF003961) | 3 conductors AWG 12 |
| Rated current In (EF008250) | 25 A |
| Min. busbar thickness (EF006536) | 5 mm |
| Max. busbar thickness (EF003702) | 10 mm |
| Width of the adapter (EF003703) | 90 mm |
| Rail width (EF003704) | 35 mm |
| Busbar distance (EF002638) | 60 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
