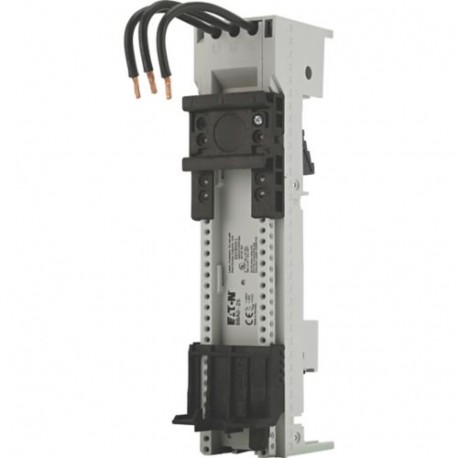

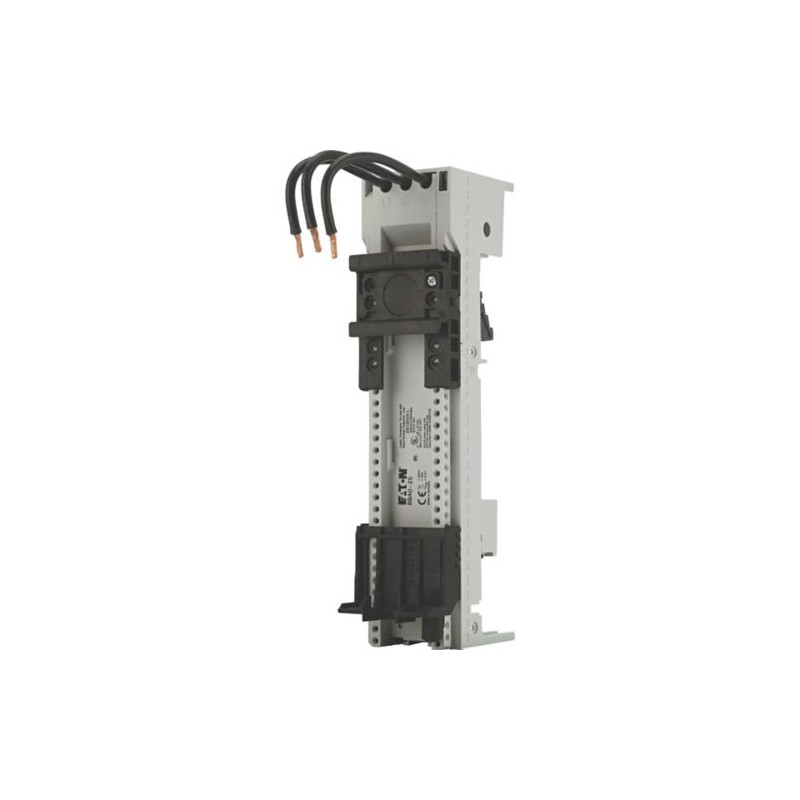

BBA0-25-PI 199467 EATON ELECTRIC Adapter for busbars 45mm 25A 1TS Push-in View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BBA0-25-PI 199467 EATON ELECTRIC Adapter for busbars 45mm 25A 1TS Push-in

BBA0-25-PI

199467

Y7-199467

EATON-MOELLER

4

Adapter for busbars 45mm 25A 1TS; Push-in

More details


Circuit Breakers PKZ

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $159.82
Unit price: $39.96
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



General specifications

Product Name
Eaton Moeller® series BBA Accessory Busbar adapter
Catalog Number
199467
Model Code
BBA0-25-PI
EAN
4015081978731
Product Length/Depth
200 mm
Product Height
73 mm
Product Width
45 mm
Product Weight
0.276 kg
Certifications
CE

Delivery program

Type
Nominal current
25 A

Technical data - electrical

Voltage rating at AC
690 V
Rated operation current (Ie)
25 A
Electric connection type
3 conductors AWG 12
Push in terminals

Technical data - mechanical

Mounting rail armament
1 mounting rail
Rail width
35 mm
Number of DIN rails
1
Busbar distance
60 mm
Busbar thickness - min
5 mm
Busbar thickness - max
10 mm
Adapter width
45 mm

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Additional information

Special features
Terminal capacity: 4 mm² (AWG 12)

Datasheet - PDF
