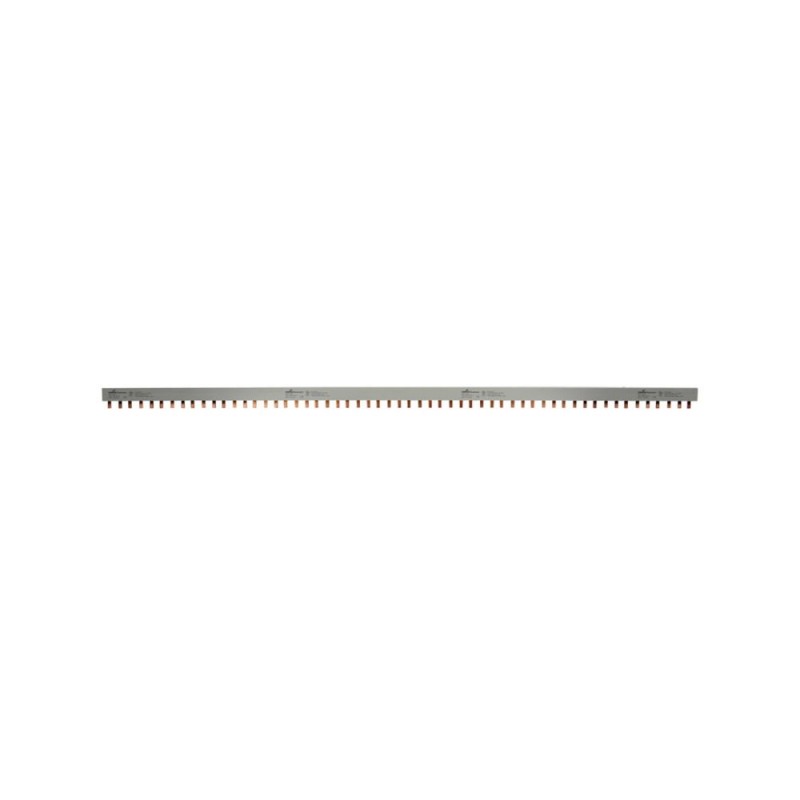

BB3P100M57 EATON ELECTRIC BUSBAR, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 1009 mm, 57P, UL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BB3P100M57 EATON ELECTRIC BUSBAR, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 1009 mm, 57P, UL

BB3P100M57

EATON-MOELLER

Three phase bb,100A, 57 pins, w/o endcap

Three phase bb,100A, 57 pins, w/o endcap - Busbar, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 1009 mm, 57P, UL, three phase 19-way comb-type busbar, without end stop

More details


Low-voltage industrial components > Phase busbar

Bussmann Series High speed fuses

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $268.57
Unit price: $268.57
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Busbar, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 1009 mm, 57P, UL, three phase 19-way comb-type busbar, without end stop
Fuse accessory, BUSBAR, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 1009 mm, 57P, UL, three phase 19-way comb-type busbar, without end stop, UL 508, can be cut to length

Delivery program

Product range
Fuse accessory
Field of application
low voltage
Functionality
can be cut to length
Rated current [I]
100 A
Rated voltage
AC 600 V
DC 600 V
Size
23 x 37 x 1009 mm
Description
three phase 19-way comb-type busbar
without end stop
Number of poles
57P
Standard/Approval
UL
Standards/Regulations
UL 508

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar ([email protected] [ACN992011])
Number of phases
3
Number of poles
57
Suitable for number of devices
57
Pitch dimensions
17.8 mm
Cross section
25 mm²
Length
1009 mm
Number of modular spacings
57
Rated permanent current Iu
100 A
Type of electric connection
Fork
Insulated
Yes
Rated surge voltage
kV
Conditioned rated short-circuit current Iq
10 kA
Max. rated operation voltage Ue
600 V
Rated short-time withstand current lcw
10 kA
Suitable for devices with N-busbar
No
Suitable for devices with auxiliary switch
No
