> EATON - MOELLER>Bussmann Series High speed fuses>BB1P100M15 ELECTRIC BUSBAR, low voltage, 100 A, AC 600 V, DC 1000 V, 15 x 16 x 208 mm, 12P, UL
Previous Product Next Product

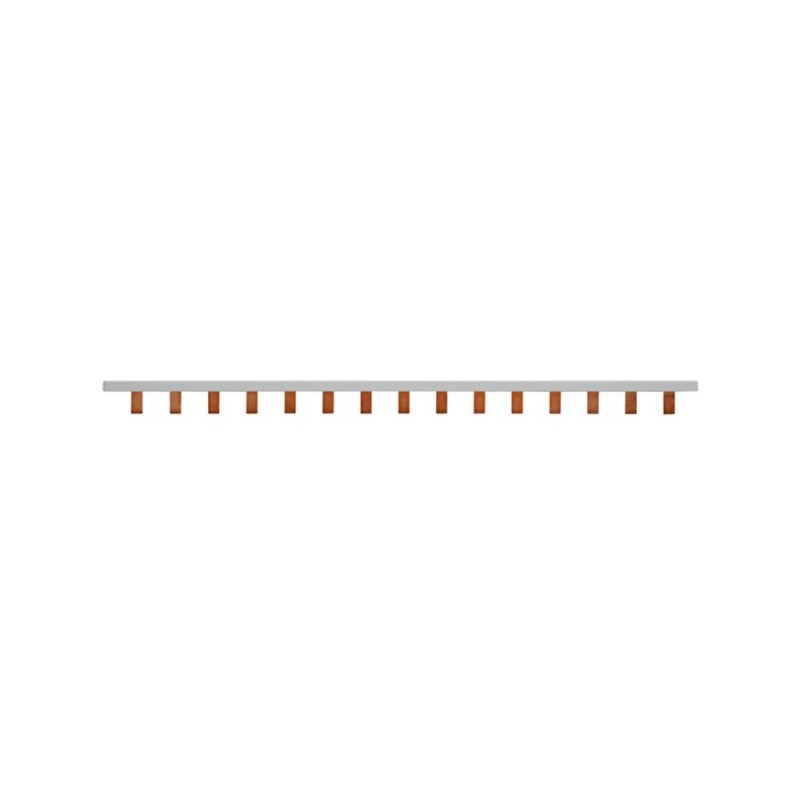

BB1P100M15 EATON ELECTRIC BUSBAR, low voltage, 100 A, AC 600 V, DC 1000 V, 15 x 16 x 208 mm, 12P, UL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BB1P100M15 EATON ELECTRIC BUSBAR, low voltage, 100 A, AC 600 V, DC 1000 V, 15 x 16 x 208 mm, 12P, UL

BB1P100M15

EATON-MOELLER

Sngl-phase 1000v DC BB, 100A, 15 pins EC

Sngl-phase 1000v DC BB, 100A, 15 pins EC - Busbar, low voltage, 100 A, AC 600 V, DC 1000 V, 15 x 16 x 272 mm, 15P, UL, single phase 15-way comb-type busbar, with end cap

More details


Low-voltage industrial components > Phase busbar

Bussmann Series High speed fuses

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Busbar, low voltage, 100 A, AC 600 V, DC 1000 V, 15 x 16 x 272 mm, 15P, UL, single phase 15-way comb-type busbar, with end cap
Fuse accessory, BUSBAR, low voltage, 100 A, AC 600 V, DC 1000 V, 15 x 16 x 272 mm, 15P, UL, single phase 15-way comb-type busbar, with end cap, UL 508

Delivery program

Product range
Fuse accessory
Field of application
low voltage
Rated current [I]
100 A
Rated voltage
AC 600 V
DC 1000 V
Size
15 x 16 x 272 mm
Description
single phase 15-way comb-type busbar
with end cap
Number of poles
15P
Standard/Approval
UL
Standards/Regulations
UL 508

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar ([email protected] [ACN992011])
Number of phases
1
Number of poles
15
Suitable for number of devices
15
Pitch dimensions
17.8 mm
Cross section
25 mm²
Length
272 mm
Number of modular spacings
15
Rated permanent current Iu
100 A
Type of electric connection
Fork
Insulated
Yes
Rated surge voltage
kV
Conditioned rated short-circuit current Iq
10 kA
Max. rated operation voltage Ue
600 V
Rated short-time withstand current lcw
10 kA
Suitable for devices with N-busbar
No
Suitable for devices with auxiliary switch
No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON CIRCUIT PROTECTION BUSSMANN EN .pdf 23 Mbytes
PDF EATON CIRCUIT PROTECTION NH FUSE EN.pdf 7 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BB1P100M15 BB1P100M15 BB1P100M15 EN_BB1P100M15.pdf 141 Kbytes BB1P100M15 BB1P100M15 BB1P100M15 EN_BB1P100M15.pdf
