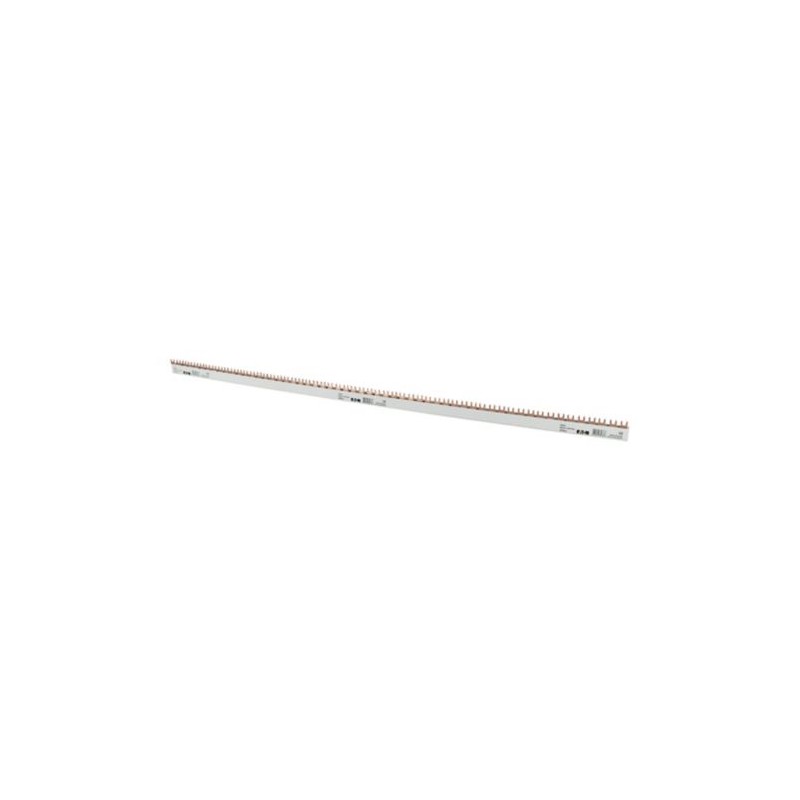

BB-EVF-10/3P-1MU 168842 EATON ELECTRIC Easyvation Distribution Bar
BB-EVF-10/3P-1MU
168842
EATON-MOELLER
Easyvation Distribution Bar
Phase busbar, 3-phase, 10qmm, fork connector, 1m
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Phase busbar, 3-phase, 10qmm, fork connector, 1m
Busbar for residual current circuit-breaker, LS, combi, surge protection, supplied without end caps, 1-pole to 4-pole end caps available, knockout end caps for additional trunking, type conforms to EN 60947-1:2007, IEC 60947-1:2007, IEC 60999:2000
General specifications
Product name
Eaton Distribution parts
Part no.
BB-EVF-10/3P-1MU
EAN
4015081653386
Product Length/Depth
1012 millimetre
Product height
35 millimetre
Product width
15 millimetre
Product weight
0.515 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Accessory/spare part type
Busbar for TVSS
Busbar for combined residual current/power circuit breaker
Busbar for miniature circuit breaker
Busbar for residual current circuit breakers
Busbar for combined residual current/power circuit breaker
Busbar for miniature circuit breaker
Busbar for residual current circuit breakers
Application
Switchgear for industrial and advanced commercial applications
Color
Other
Cross section
10 mm²
Electric connection type
Fork
Features
Insulated
Can be cut to size
Can be cut to size
Functions
Busbar
Number of modular spacings
1
Number of phases
3
Number of poles
Three-pole
Pitch dimensions
17.8 mm
Rated conditional short-circuit current (Iq)
0 kA
Rated operational voltage (Ue) - max
690 V
Rated short-time withstand current (Icw)
0 kA
Rated surge voltage
4.5 kV
Rated uninterrupted current (Iu)
63 A
Suitable for number of devices
0
Type
BB-EV
Busbar
Busbar
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar (ecl@ss13-27-37-13-06 [ACN992016])
Number of phases
3
Number of poles
3
Suitable for number of devices
0
Module width
17.8 mm
Cross section
10 mm²
Length
1012 mm
Can be cut to size
Yes
Width in number of modular spacings
1
Rated permanent current Iu
63 A
Type of electric connection
Fork
Insulated
Yes
Rated surge voltage
4.5 kV
Conditioned rated short-circuit current Iq
0 kA
Max. rated operation voltage Ue
690 V
Rated short-time withstand current lcw
0 kA
Suitable for devices with N-conductor
No
Suitable for devices with auxiliary switch
No
Colour
Other
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| BB-EVF-10/3P-1MU 168842 EN_168842.pdf | 108 Kbytes |
|
