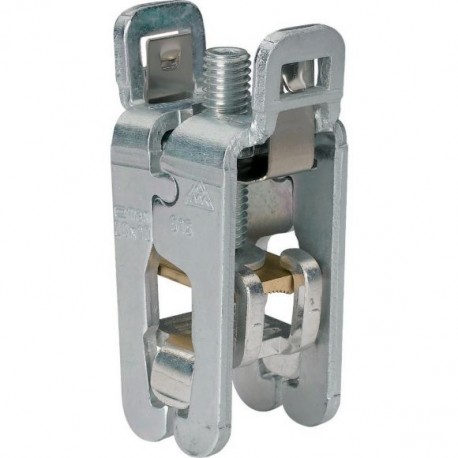

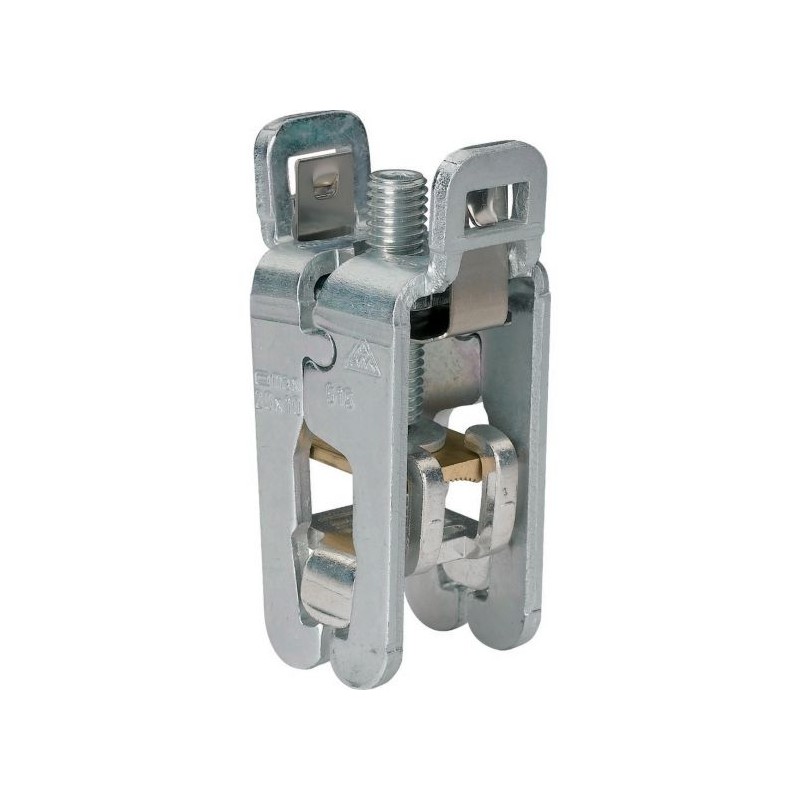

AKS150 138374 EATON ELECTRIC Clamp terminal 35-150mm², for 12x5-20x10 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

AKS150 138374 EATON ELECTRIC Clamp terminal 35-150mm², for 12x5-20x10

AKS150

138374

EATON-MOELLER

Clamp terminal 35-150mm², for 12x5-20x10

AKS150

Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Clamp terminal 35-150mm², for 12x5-20x10

More details


Low-voltage industrial components > Busbar terminal

Connection Accessories for Enclosures

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $51.23
Unit price: $51.23

Quantity Price
1+$51.23
2+$49.44
3+$44.71
4+$42.04
6+$39.28
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


General specifications

Product Name
Eaton xEffect SASY 60i busbar terminal
Catalog Number
138374
Model Code
AKS150
EAN
4015081351541
Product Length/Depth
62 mm
Product Height
51 mm
Product Width
38 mm
Product Weight
0.102 kg
Compliances
RoHS conform

Delivery program

Type

Technical data - electrical

Rated operation current (Ie)
480 A
Rated operational current
480 A
Rated operational current (Ie) - max
480 A

Technical data - mechanical

Busbar thickness - min
5 mm
Busbar thickness - max
10 mm
Busbar width - min
12 mm
Busbar width - max
20 mm
Terminal capacity (conductor)
35 mm² - 150 mm²
AWG2/0 - MCM300
Conductor cross section - max
150 mm²
Width clamp
38 mm

Additional information

Functions
Connections
Clamp terminal
Special features
  • Termination to busbars without drilling
  • A cable block is used to connect the conductor to the busbar
Suitable for
Sector conductor connection
Round conductor connection
Flat rail
Strip conductor connection
Used with
12 mm x 5/10 mm rail
20 mm x 5/10 mm rail
185 mm system
Compact system
Connection
60 mm system

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN.pdf 51 Mbytes
AKS150 138374 EN_138374.pdf 106 Kbytes AKS150 138374 EN_138374.pdf
