ACCESSORIES-TP-57-KG-1 139837 Y7-139837 EATON ELECTRIC Device accessories, for all plastic devices XV100 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ACCESSORIES-TP-57-KG-1 139837 Y7-139837 EATON ELECTRIC Device accessories, for all plastic devices XV100

ACCESSORIES-TP-57-KG-1

139837

Y7-139837

EATON-MOELLER

Device accessories, for all plastic devices XV100

ACCESSORIES-TP-57-KG-1

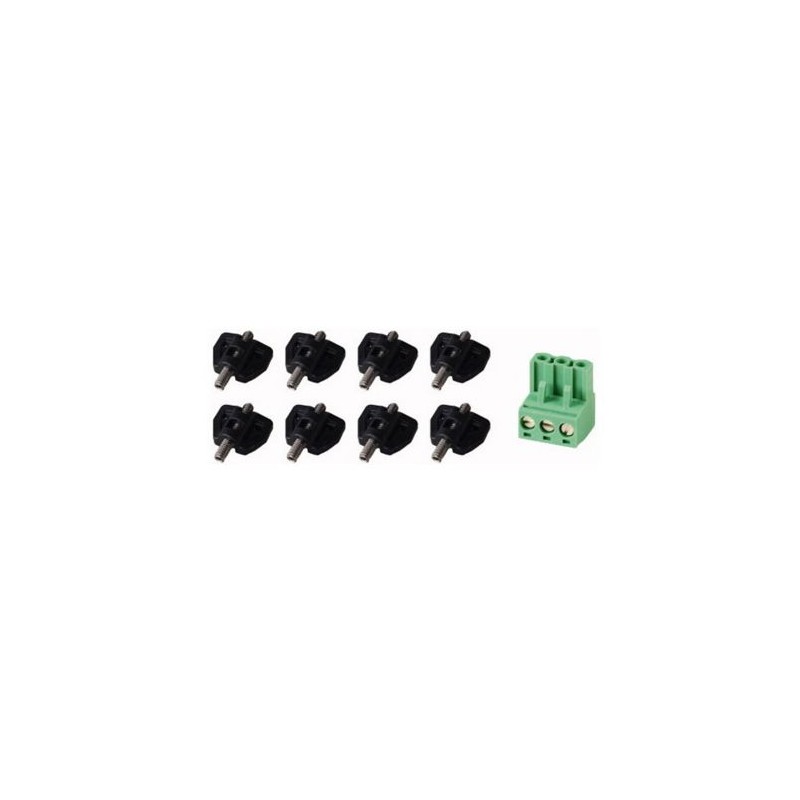

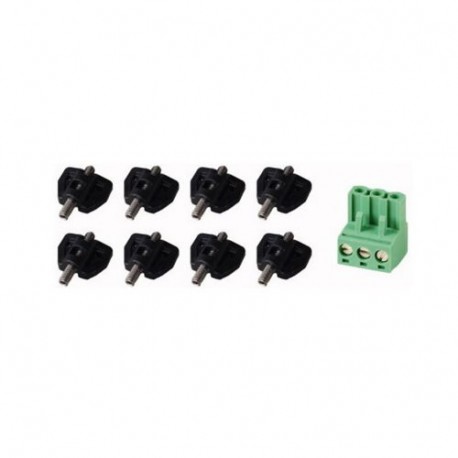

8 mounting brackets with grub screw, 1 gasket cord, 1 power supply plug, 1 touchpen (supplied as standard with devices)

More details


PLC's > Accessories/spare parts for controls

HMI Touch Terminals

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $40.95
Unit price: $40.95
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton TP Accessory Mounting set
Catalog Number
139837
Model Code
ACCESSORIES-TP-57-KG-1
EAN
7640130093485
Product Length/Depth
160 mm
Product Height
25 mm
Product Width
140 mm
Product Weight
0.037 kg
Certifications
UL/CSA certification not required
Catalog Notes
not relevant

Features & Functions

Fitted with:
1 Sealing profile for flush mounting device
Touch pen
1 power supply plug
8 mounting brackets with grub screw for flush mounting

General

Product category
Standard accessories

Climatic environmental conditions

Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 139837 PLC's (EC002584)
Feature Name Feature Value
Type of electrical accessory/spare part (EF005722) Other
Type of mechanical accessory/spare part (EF005994) Other
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
ACCESSORIES-TP-57-KG-1 Y7-139837 139837 EN_139837.pdf 148 Kbytes ACCESSORIES-TP-57-KG-1 Y7-139837 139837 EN_139837.pdf
