A-PKZ0(24VDC)-PI 199336 Y7-199336 EATON ELECTRIC A-PKZ0(24VDC)-PI
A-PKZ0(24VDC)-PI
199336
Y7-199336
EATON-MOELLER
A-PKZ0(24VDC)-PI

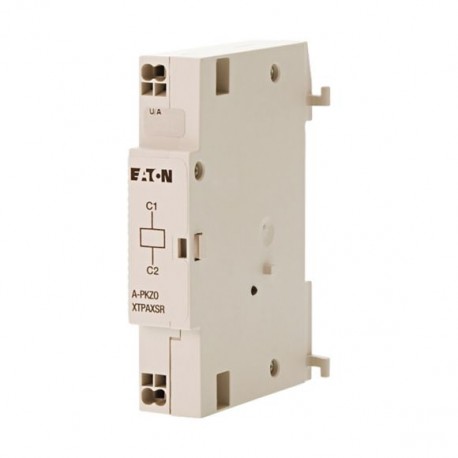

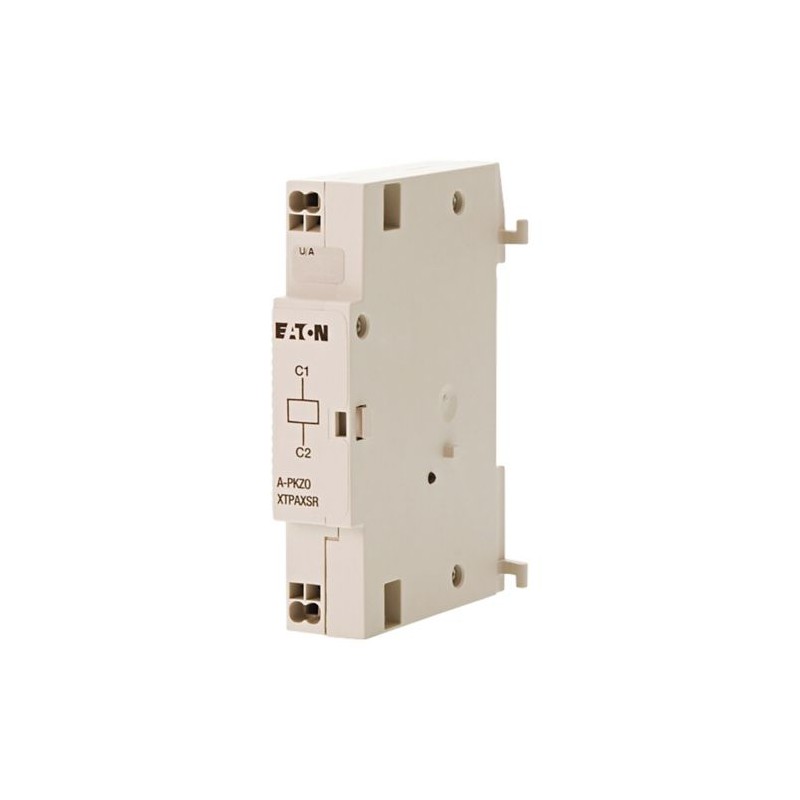

Eaton Moeller® series A-PKZ0 Shunt release PKZ0(4), PKE, DC, 24 V DC, Push in terminals
Shunt release with Push in terminals, for circuit-breaker PKZ(M)0 size
Low-voltage industrial components > Shunt release (for power circuit breaker)
Circuit Breakers PKZ
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
CE Marked
Features & Functions
Spring clamp connection
General
Climatic environmental conditions
Terminal capacities
Electrical rating
0.7 - 1.1 x Us (AC)
0.7- 1.1 x Us (DC)
Magnet system
0.7 - 1.1 x Us (AC)
0.7- 1.1 x Us (DC)
Contacts
Power consumption
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | DC |
| Initial value of the undelayed short-circuit release - setting range (EF008187) | 0 A |
| End value adjustment range undelayed short-circuit release (EF008188) | 0 A |
| Power consumption (EF000346) | 0.5 W |
| Type of electric connection (EF003961) | Spring clamp connection |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Suitable for power circuit breaker (EF005863) | No |
| Suitable for off-load switch (EF001543) | No |
| Suitable for motor safety switch (EF005826) | Yes |
| Suitable for overload relay (EF001545) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| A-PKZ0(24VDC)-PI Y7-199336 199336 ES_199336.pdf | 2 Mbytes |
|
