> EATON - MOELLER>Single-phase UPS up to 11kVA >Eaton 9E 6000i 9E6KI ELECTRIC 9E 6000i UNINTERRUPTIBLE POWER SUPPLY ONLINE DOUBLE CONVERSION, SUPPLY I..
Previous Product Next Product

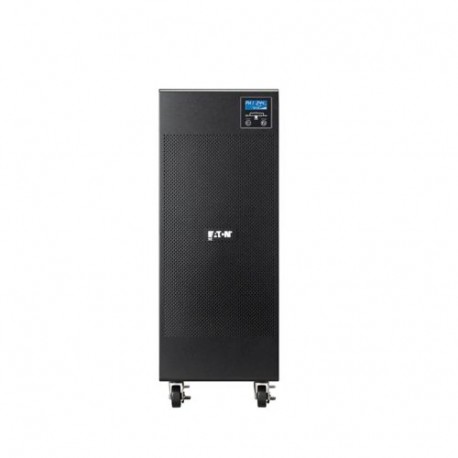

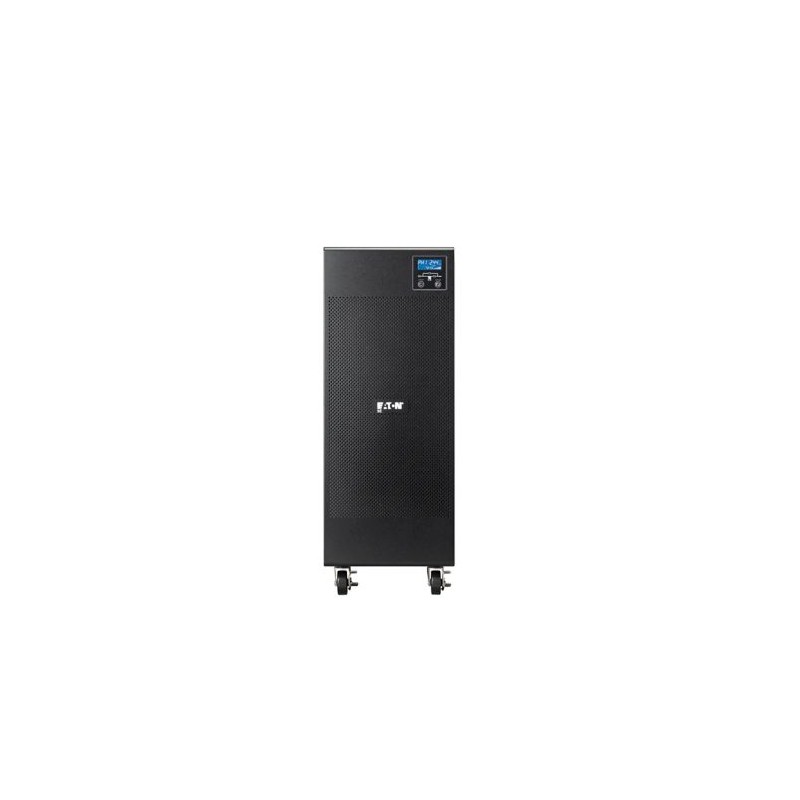

Eaton 9E 6000i 9E6KI EATON ELECTRIC 9E 6000i UNINTERRUPTIBLE POWER SUPPLY ONLINE DOUBLE CONVERSION, SUPPLY I.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

Eaton 9E 6000i 9E6KI EATON ELECTRIC 9E 6000i UNINTERRUPTIBLE POWER SUPPLY ONLINE DOUBLE CONVERSION, SUPPLY I..

Eaton 9E 6000i

9E6KI

EATON-MOELLER

9E 6000i UNINTERRUPTIBLE POWER SUPPLY ONLINE DOUBLE CONVERSION, SUPPLY INPUT/OUTPUT VOLTAGE 220-240V, MAX CURRENT 82A, POWER 6000VA/4800W, 0-40 DEGC; 3 OUTLET; 708.5MM x 262.4MM x 612.9MM (HxWxL); TOWER FORMAT

Eaton 9E 6000i

Eaton 9E UPS, 6000 VA, 4800 W, Input: Hardwired, Output: Hardwired, Tower

More details


Single-phase UPS up to 11kVA

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $2,271.86
Unit price: $2,271.86

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


General specifications

Product Name
Eaton 9E UPS
Catalog Number
9E6KI
UPC
743172067661
Product Length/Depth
61.29 cm
Product Height
70.85 cm
Product Width
26.24 cm
Product Weight
68 kg
Compliances
CE Marked
TUV
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC

Product specifications

Special features
Type
UPS
Topology
Online/Double-conversion
Form factor
Tower
Construction type
Free standing model
Color
Black
VA rating
6000 VA
Wattage
4800 W
Rack mounting kit
No
Package contents
  • UPS
  • USB cable
  • Serial cable
  • User manual
Internal bypass
Yes
Hot swap power
No
Auto shutdown function
Yes
Primary frequency - max
66 Hz
Primary frequency - min
45 Hz
Input connection
Hardwired/fixed connection
Input nominal voltage
230V default (220/230/240V)
Nominal frequency
50/60 Hz
Input frequency range
45-66Hz
Input power factor
>.99
Number of outputs hardwired
1
Output waveform
Sine wave
Voltage
230V
Output nominal voltage
230V default (220/230/240V)
Feed type
1
Voltage type
AC
Runtime graph
Battery management
  • Automatic battery test
  • Deep discharge protection
Battery replacement
Replacable batteries
Battery rating
12 V / 9 Ah
Battery type
Sealed, lead-acid
Extended battery capability
Yes
Runtime at half load
10 min
Communication
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote power off
  • Communication slot
Expansion slots
One slot for optional communication card
Ethernet interface
No
Includes network card
No
Software compatibility
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
User interface
LCD Display
Type of interface
Other
Potential free switch contact
Yes
Altitude
3000 m
BTU Rating
Online: 1472
Noise level
<55 dB at 1 meter
Relative humidity
0-95% non-condensing
Temperature range
0° to 40°C (32° to 104°F)
Input voltage - max
276 V
Input voltage - min
110 V
Output voltage - max
240 V
Output voltage - min
220 V
Secondary frequency - max
60 Hz
Secondary frequency - min
50 Hz
Battery quantity
15
Efficiency
91
Efficiency (eco-mode)
96
Input voltage range
176-276 V (110-276 V with derating)
Max number of battery packs
4
Output frequency
50/60 Hz
Output power factor
0.8
Output voltage range
220/230/240 V +/- 2%
Phase (input)
1
Phase (output)
1
Runtime at full load
8 min
Voltage distortion output (linear load) - max
3

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON POWER INFRAESTRUCTURE SOLUTIONS PRODUCTS EN.pdf 7 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
Eaton 9E 6000i 9E6KI EN_9E6KI.pdf 146 Kbytes Eaton 9E 6000i 9E6KI EN_9E6KI.pdf
