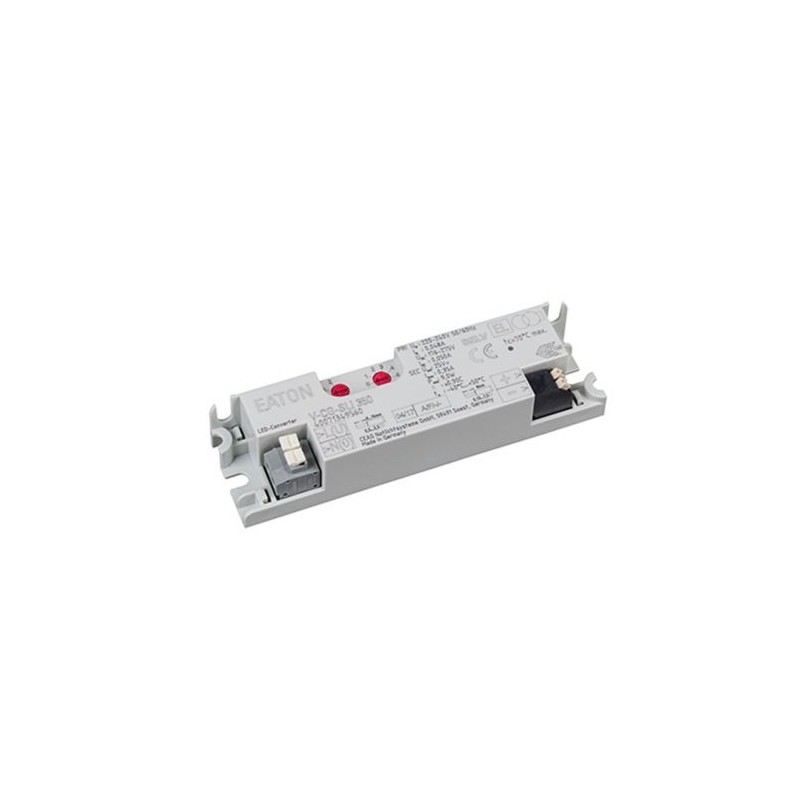

40071355260 EATON ELECTRIC V-CG-SLI 350 (inividual packaging)
40071355260
EATON-MOELLER
V-CG-SLI 350 (inividual packaging)
LED supply and monitoring module V-CG-SLI 350 (individual packing)
Central Battery System
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton LED drivers including CG-S modules
Catalog Number
40071355260
EAN
4012539350217
Product Length/Depth
110 mm
Product Height
21 mm
Product Width
30 mm
Product Weight
0.042 kg
Compliances
Contact Manufacturer
Product specifications
Lamp type
LED
Nominal voltage - max
240 V
Nominal voltage - min
220 V
Protection class
I or II
Nominal voltage range DC - max
275 V
Nominal voltage range DC - min
176 V
Additional data line needed
No
Ambient temperature - max
50 °C
Ambient temperature - min
-40 °C
Connection terminals (in)
2.5 mm²
Connection terminals (out)
1.5 mm²
Constant output
Constant current output
Current Consumption At 220V DC
43 mA
ENEC certified
Yes
Housing color
Grey
Housing material
Flame retardant polycarbonate
Inrush current
3 A
LED module load (number of LEDs)
1-8 LEDs (rated current 350 mA),series connection (UF = 2.85 ... 3.12 V)
Lamp power
8.75 W
Luminous Flux Φe/Φin At The End Of Rated Operating Time
100 %
Maximal number of monitored luminaires per circuit
20
Reverse-Polarity Protected Terminals (In)
Yes
SLI-technology
Yes
Product branding
Eaton
Degree of protection (IP)
IP20
Maximal permissible test point temperature
70 °C
Line length - max
0.5 m
Output power - max
8.75 W
Operating frequency
60 Hz
Output current - max
350 mA
Output voltage - max
30 VDC
Power consumption mains operation - apparent power (VA)
11.6 VA
Power consumption mains operation - effective power (W)
10.7 W
Power factor
.9
Standby Powerloss At 230 V / 50 Hz
0.5 W
