> EATON - MOELLER>Central Battery System>V-CG-S/4-400W (without packing) 40071352409 ELECTRIC V-CG-S/4-400W (without packaging)
Previous Product Next Product

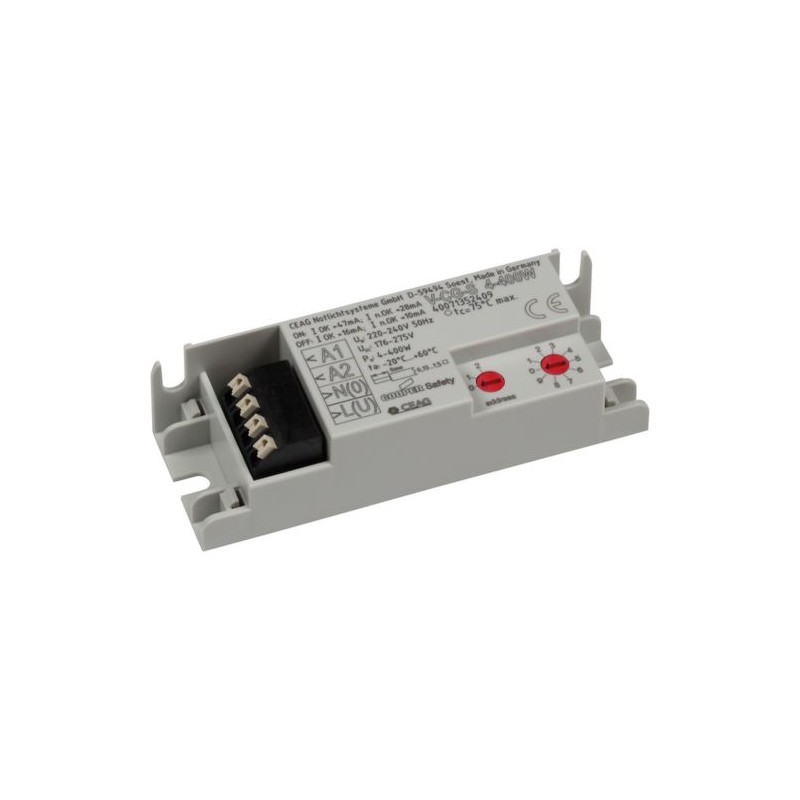

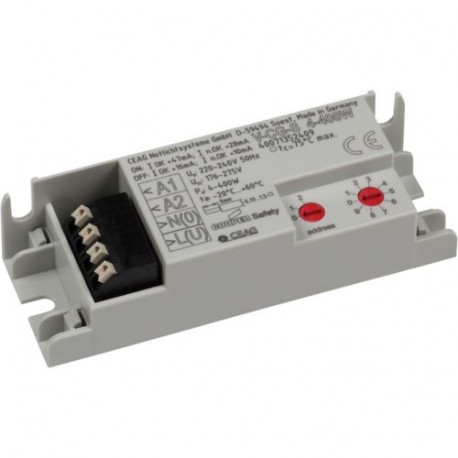

V-CG-S/4-400W (without packing) 40071352409 EATON ELECTRIC V-CG-S/4-400W (without packaging) View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

V-CG-S/4-400W (without packing) 40071352409 EATON ELECTRIC V-CG-S/4-400W (without packaging)

V-CG-S/4-400W (without packing)

40071352409

40071352409

EATON-MOELLER

V-CG-S/4-400W (without packaging)

Eaton monitoring interfaces CG-S module V-CG-S 4-400W monitoring module (without packing)

More details


Accessories for lighting > Emergency unit for luminaire

Central Battery System

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton monitoring interfaces CG-S module
Catalog Number
40071352409
EAN
4012539324416
Product Length/Depth
85 mm
Product Height
21 mm
Product Width
30 mm
Product Weight
0.035 kg
Certifications
CE

Product specifications

Nominal voltage - max
240 V
Nominal voltage - min
220 V
Protection class
I or II
Nominal voltage range DC - max
275 V
Nominal voltage range DC - min
176 V
Additional data line needed
No
Ambient temperature - max
60 °C
Ambient temperature - min
-20 °C
Connection terminals (in)
1.5 mm²
Connection terminals (out)
1.5 mm²
ENEC certified
Yes
Housing color
Grey
Housing material
Flame retardant polycarbonate
Lamp power
400 W
Maximal number of monitored luminaires per circuit
20
Reverse-Polarity Protected Terminals (In)
Yes
SLI-technology
No
IOK (Normal Current Drawn) Level 1
47 mA
IOK (Normal Current Drawn) Level 2
16 mA
I not OK (failure current drawn) level 1
28 mA
I not OK (failure current drawn) level 2
10 mA
Product branding
Eaton
Degree of protection (IP)
IP20
Maximal permissible test point temperature
75 °C
Line length - max
50 m
Output power - max
400 W
Operating frequency
60 Hz
Standby Powerloss At 230 V / 50 Hz
0.5 W

ETIM for 40071352409 Lighting accessories (EC000471)
Feature Name Feature Value
With remote switch connection (EF007947) No
Nominal voltage (EF005127) 220 V

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
