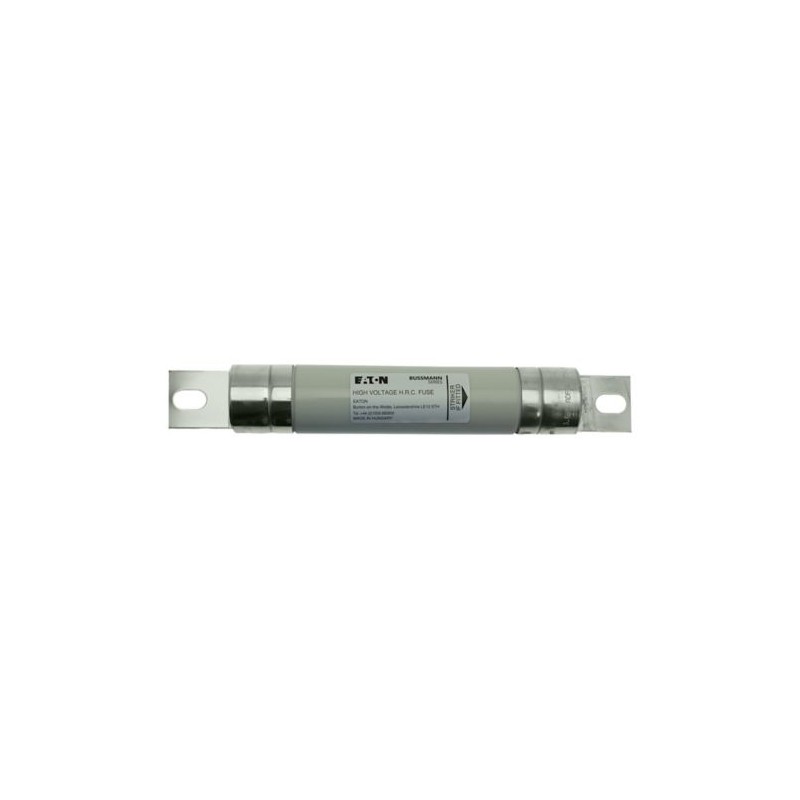

36KV 5A 2" AIR FUSE 36ADIHA5 EATON ELECTRIC Air fuse-link, medium voltage, 5 A, AC 36 kV, 50.8 x 565mm, back..
36KV 5A 2" AIR FUSE
36ADIHA5
36ADIHA5
EATON-MOELLER
3
Air fuse-link, medium voltage, 5 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker
36KV 5AMP 2" AIR FUSE
Fuse, Air fuse-link, medium voltage, 5 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, cylindrical, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS 2692-1, Breaking Capacity 16 kA, Optional accessories, Supplied with
Circuit breakers and fuses > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 5 A |
| Rated voltage (EF000228) | 36 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 16 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 565 mm |
| Diameter (EF000551) | 51 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | Yes |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON MEDIUM VOLTAGE FUSE EN.pdf | 2 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| 36KV 5A 2" AIR FUSE 36ADIHA5 36ADIHA5 EN_36ADIHA5.pdf | 128 Kbytes |
|
