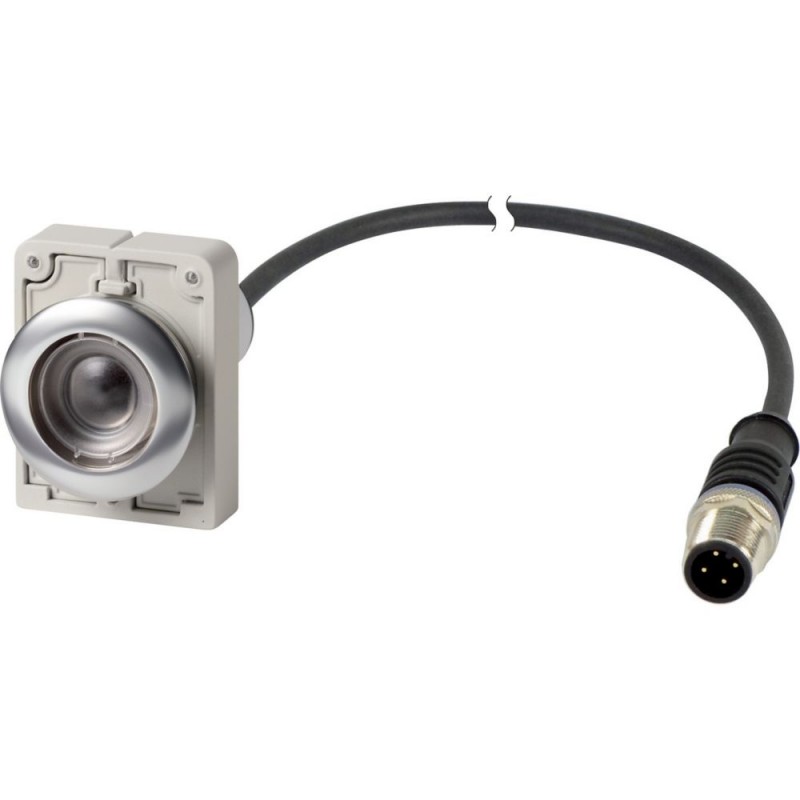

186000 EATON ELECTRIC Compact flush button. 30 mm. Interlocking. Without a license plate. 2 NC. M12 Connecto..
186000
EATON-MOELLER
Compact flush button. 30 mm. Interlocking. Without a license plate. 2 NC. M12 Connector 1m
Pushbutton, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 1 m, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Metal bezel, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
Low-voltage industrial components > Push button, complete
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Type of button (EF001546) | Flat |
| Colour button (EF000190) | Without button plate |
| Transparent (EF006243) | No |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Suitable for lighting (EF001142) | No |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| Supply voltage lamp (EF006522) | 0 V |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP) (EF005474) | IP65 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
