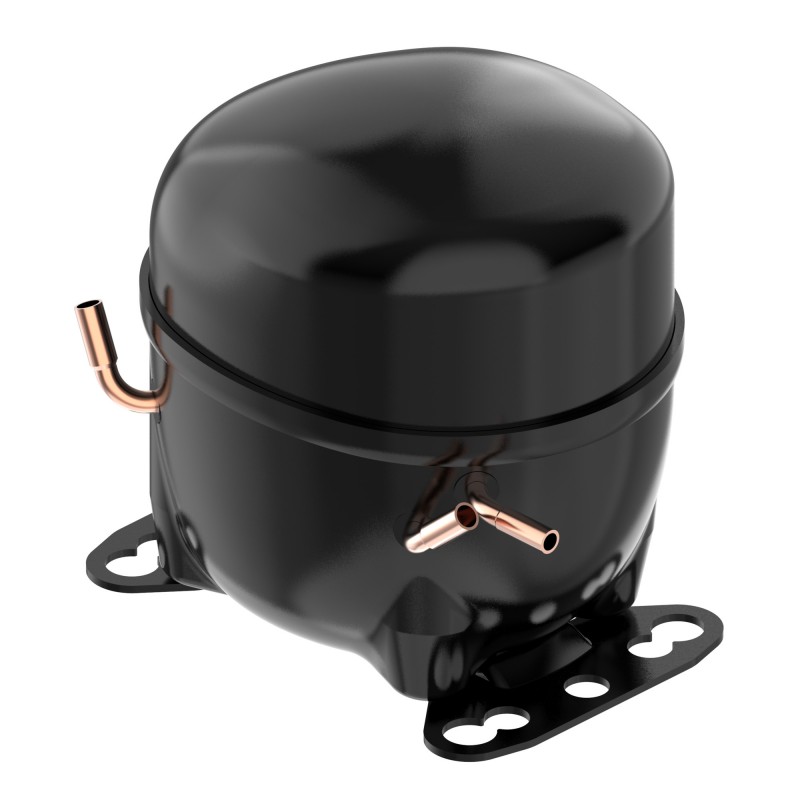

125B3331 DANFOSS REFRIGERATION NUY80NGa HCB 200-220/230V 50/60Hz Without View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

125B3331 DANFOSS REFRIGERATION NUY80NGa HCB 200-220/230V 50/60Hz Without

125B3331

DANFOSS REFRIGERATION

NUY80NGa; HCB; 200-220/230V 50/60Hz; Without

Reciprocating compressor, NUY80NGa

More details


Home > DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

Total: $288.82
Unit price: $288.82
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R290, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 220/1/50 220/1/60

Product details

Gross weight9.5 Kilogram
Net weight9.3 Kilogram
Volume10.368 Liter
EAN5715162726013
TypeNUY80
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor U
Gross weight9.5 Kilogram
Net weight9.3 Kilogram
Volume10.368 Liter
EAN5715162726013
TypeNUY80
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor U

ApplicationsLBP
MBP
ApprovalCE
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]5.98 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220/1/50 220/1/60
Configuration codeSingle
Contains batteriesNo
Cut in current HST 50Hz [A]32.9 A
Cut in current HST 60Hz [A]32.9 A
DescriptionNUY80NGa
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]4.9 mm
Discharge connection height [mm]98 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyU
Frequency [Hz]50/60
Height from baseplate [mm]221 mm
High value of nominal voltage at 50Hz [V]240 V
High value of nominal voltage at 60Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
High value of voltage range at 60Hz [V]264 V
In scope of WEEENo
Low value of nominal voltage at 50Hz [V]220 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]187 V
Low value of voltage range at 60Hz [V]187 V
LRA HST 50Hz [A]12.3 A
LRA HST 60Hz [A]12.6 A
Main winding resistance for single-phase compressors [Ohm]2.5 Ohm
MCC3.10 A
Model numberNUY80NGa
Network power supply [V/Ph/Hz]200-240/1/50-60
Oil charge [L]0.65 L
Oil quantity [cm3]200 cm³
Oil typePOE
Packing formatSingle pack
Packing quantity1
Process connection angle [°]70 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection materialCu-plated steel
Refrigerant charge [kg] [Max]0.15 kg
RefrigerantsR290
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
Run capacitor capacitance16 µF
Segment usageRefrigeration LT
Refrigeration MT
Start capacitor capacitance88-108 µF
Suction connection angle [°]40 °
Suction connection diameter [mm]6.2 mm
Suction connection height [mm]103 mm
Suction connection materialCu-plated steel
Swept volume [cm3]8.1 cm³
TechnologyReciprocating
Total height [mm]230 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C
ApplicationsLBP
MBP
ApprovalCE
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]5.98 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220/1/50 220/1/60
Configuration codeSingle
Contains batteriesNo
Cut in current HST 50Hz [A]32.9 A
Cut in current HST 60Hz [A]32.9 A
DescriptionNUY80NGa
Discharge connection angle [°]0 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]4.9 mm
Discharge connection height [mm]98 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyU
Frequency [Hz]50/60
Height from baseplate [mm]221 mm
High value of nominal voltage at 50Hz [V]240 V
High value of nominal voltage at 60Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
High value of voltage range at 60Hz [V]264 V
In scope of WEEENo
Low value of nominal voltage at 50Hz [V]220 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]187 V
Low value of voltage range at 60Hz [V]187 V
LRA HST 50Hz [A]12.3 A
LRA HST 60Hz [A]12.6 A
Main winding resistance for single-phase compressors [Ohm]2.5 Ohm
MCC3.10 A
Model numberNUY80NGa
Network power supply [V/Ph/Hz]200-240/1/50-60
Oil charge [L]0.65 L
Oil quantity [cm3]200 cm³
Oil typePOE
Packing formatSingle pack
Packing quantity1
Process connection angle [°]70 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection materialCu-plated steel
Refrigerant charge [kg] [Max]0.15 kg
RefrigerantsR290
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
Run capacitor capacitance16 µF
Segment usageRefrigeration LT
Refrigeration MT
Start capacitor capacitance88-108 µF
Suction connection angle [°]40 °
Suction connection diameter [mm]6.2 mm
Suction connection height [mm]103 mm
Suction connection materialCu-plated steel
Swept volume [cm3]8.1 cm³
TechnologyReciprocating
Total height [mm]230 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]115 °C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf 11 Mbytes
