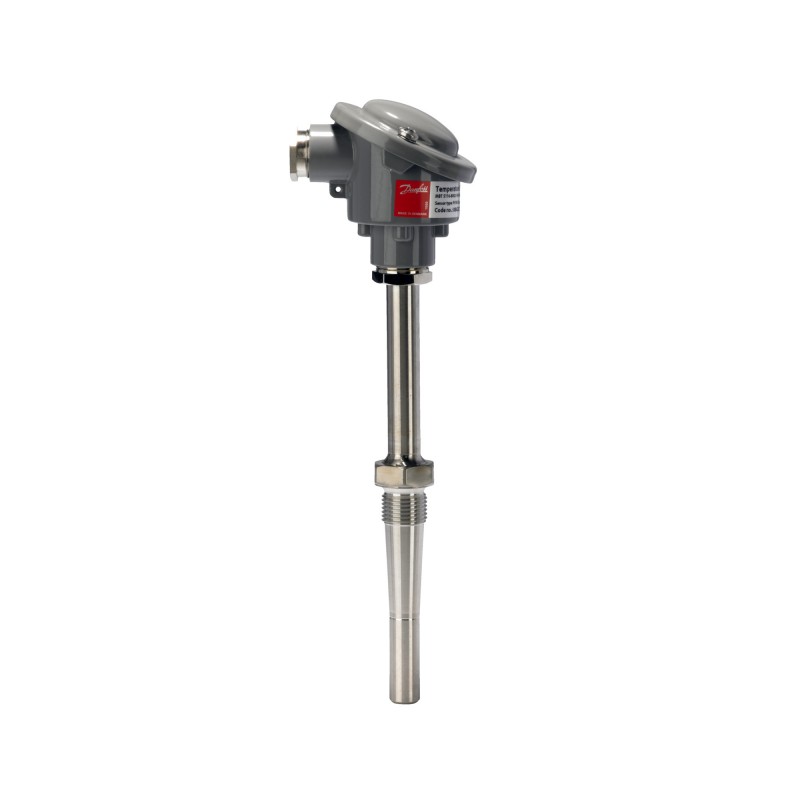

084Z2141 DANFOSS REFRIGERATION Temperature sensor, MBT 5113, 100 mm, NPT,1/2-14, ANSI/ASME B1.20.1
084Z2141
DANFOSS REFRIGERATION
Temperature sensor, MBT 5113, 100 mm, NPT,1/2-14, ANSI/ASME B1.20.1
MBT 5113-B002-100-40-H180 Sensor (4-20mA
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Temperature range [°C]: -50 - 800, Thermocouple: 1 x NiCr-Ni, Type K, Output signal [mA]: 4 - 20, Protection tube material: AISI 316 TI, Electrical connection: Type B, Electrical connection size: Pg 16
Product details
| Gross weight | 0.566 Kilogram |
| Net weight | 0.561 Kilogram |
| Volume | 1.013 Liter |
| EAN | 5702428437301 |
| Type | MBT 5113 |
| Product group | Sensors |
| Product Name Description | Temperature transmitter |
| Gross weight | 0.566 Kilogram |
| Net weight | 0.561 Kilogram |
| Volume | 1.013 Liter |
| EAN | 5702428437301 |
| Type | MBT 5113 |
| Product group | Sensors |
| Product Name Description | Temperature transmitter |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection material | AISI 316 Ti |
| Connection standard | ISO 228 |
| Connection type | NPT |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Extension length [in] | 3.94 in |
| Extension length [mm] | 100 mm |
| In scope of WEEE | Yes |
| Insertion length [in] | 3.94 in |
| Insertion length [mm] | 100 mm |
| Insertion type | Fixed |
| Number of terminals [pcs] | 2 pc |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | AISI 316 Ti |
| Process connection size | 1/2-14 |
| Process connection standard | ANSI/ASME B1.20.1 |
| Process connection type | NPT |
| Protection tube diameter [in] [max] | 0.945 in |
| Protection tube diameter [in] [min] | 0.551 in |
| Protection tube diameter [mm] [max] | 24 mm |
| Protection tube diameter [mm] [min] | 14 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a |
| SCIP dossier product name | MBT 5113/5116 |
| Sensor element standard | EN 60584-2 |
| Sensor element tolerance | Class 2 |
| Sensor Insert | Exchangeable |
| Supply voltage [V] DC [max] | 35 V |
| Supply voltage [V] DC [min] | 8 V |
| Temperature range [°C] [max] | 800 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 1472 °F |
| Temperature range [°F] [min] | -58 °F |
| Thermocouple | 1 X NiCr-Ni, Type K |
| Thermocouple design std. | EN 61515 |
| Thermocouple tolerance | EN 60584-2 Class 2 |
| Transmitter setting range [°C] [max] | 800 °C |
| Transmitter setting range [°C] [min] | 0 °C |
| Transmitter setting range [°F] [max] | 1472 °F |
| Transmitter setting range [°F] [min] | 32 °F |
| Transmitter type | Galv. isolated |
| Type designation | MBT 5113-B002-100-40-H180 |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection material | AISI 316 Ti |
| Connection standard | ISO 228 |
| Connection type | NPT |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Extension length [in] | 3.94 in |
| Extension length [mm] | 100 mm |
| In scope of WEEE | Yes |
| Insertion length [in] | 3.94 in |
| Insertion length [mm] | 100 mm |
| Insertion type | Fixed |
| Number of terminals [pcs] | 2 pc |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | AISI 316 Ti |
| Process connection size | 1/2-14 |
| Process connection standard | ANSI/ASME B1.20.1 |
| Process connection type | NPT |
| Protection tube diameter [in] [max] | 0.945 in |
| Protection tube diameter [in] [min] | 0.551 in |
| Protection tube diameter [mm] [max] | 24 mm |
| Protection tube diameter [mm] [min] | 14 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a |
| SCIP dossier product name | MBT 5113/5116 |
| Sensor element standard | EN 60584-2 |
| Sensor element tolerance | Class 2 |
| Sensor Insert | Exchangeable |
| Supply voltage [V] DC [max] | 35 V |
| Supply voltage [V] DC [min] | 8 V |
| Temperature range [°C] [max] | 800 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 1472 °F |
| Temperature range [°F] [min] | -58 °F |
| Thermocouple | 1 X NiCr-Ni, Type K |
| Thermocouple design std. | EN 61515 |
| Thermocouple tolerance | EN 60584-2 Class 2 |
| Transmitter setting range [°C] [max] | 800 °C |
| Transmitter setting range [°C] [min] | 0 °C |
| Transmitter setting range [°F] [max] | 1472 °F |
| Transmitter setting range [°F] [min] | 32 °F |
| Transmitter type | Galv. isolated |
| Type designation | MBT 5113-B002-100-40-H180 |
| Wires [pcs] | 2 pc |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 084Z2141 EN_084Z5257.pdf | 1 Mbytes |
|
