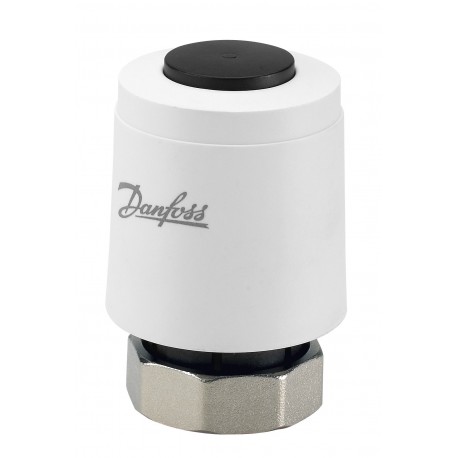

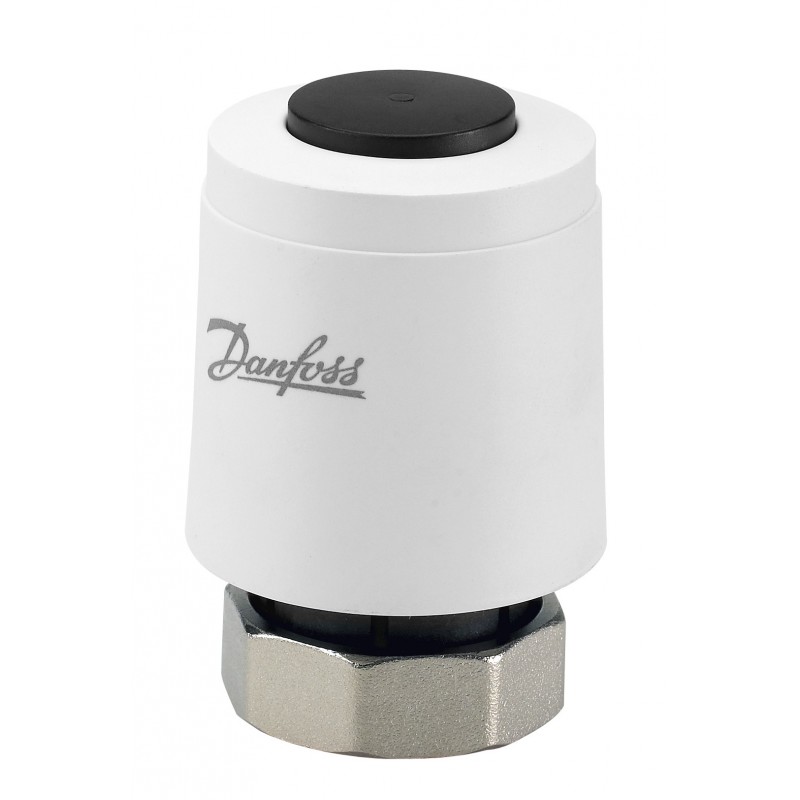

082H3100 DANFOSS REFRIGERATION TWA-ZL, 24 V AC/DC, 180 s/mm, 2.8 mm
082H3100
DANFOSS REFRIGERATION
TWA-ZL, 24 V AC/DC, 180 s/mm, 2.8 mm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲TWA-ZL, NC, 24VAC/DC, 2,8mm, 1.2m cable
Product details
| Gross weight | 0.154 Kilogram |
| Net weight | 0.15 Kilogram |
| Volume | 0.476 Liter |
| EAN | 5702420113661 |
| Type | TWA-ZL |
| Product group | Thermal actuators |
| Gross weight | 0.154 Kilogram |
| Net weight | 0.15 Kilogram |
| Volume | 0.476 Liter |
| EAN | 5702420113661 |
| Type | TWA-ZL |
| Product group | Thermal actuators |
| Actuator speed [s/mm] | 180 s/mm |
| Actuator type | Thermal |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | 2 °C |
| Application | Hot water and fan coils |
| Cable included | Yes |
| Cable length [m] | 1.2 m |
| China RoHS compliance | Out of scope |
| Closing force [N] | 105 N |
| Compatibility with valve | VZL DN 15-20 VZ DN 15-20 |
| Contains batteries | No |
| Control signal type | On/off and PWM |
| De-energized position | Normally closed |
| Description | TWA-ZL, NC, 24VAC/DC, 2,8mm, 1.2m cable |
| Electrical Protection Class according to EN60730-1 | III |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| IP protection class | IP41 |
| Manual operation | No |
| Power consumption [W] | 2 W |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 2.8 mm |
| Supply voltage [V] | 24 V AC/DC |
| Actuator speed [s/mm] | 180 s/mm |
| Actuator type | Thermal |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | 2 °C |
| Application | Hot water and fan coils |
| Cable included | Yes |
| Cable length [m] | 1.2 m |
| China RoHS compliance | Out of scope |
| Closing force [N] | 105 N |
| Compatibility with valve | VZL DN 15-20 VZ DN 15-20 |
| Contains batteries | No |
| Control signal type | On/off and PWM |
| De-energized position | Normally closed |
| Description | TWA-ZL, NC, 24VAC/DC, 2,8mm, 1.2m cable |
| Electrical Protection Class according to EN60730-1 | III |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| IP protection class | IP41 |
| Manual operation | No |
| Power consumption [W] | 2 W |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 2.8 mm |
| Supply voltage [V] | 24 V AC/DC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082H3100 082H3100 ES_082H3102.pdf | 424 Kbytes |
|
