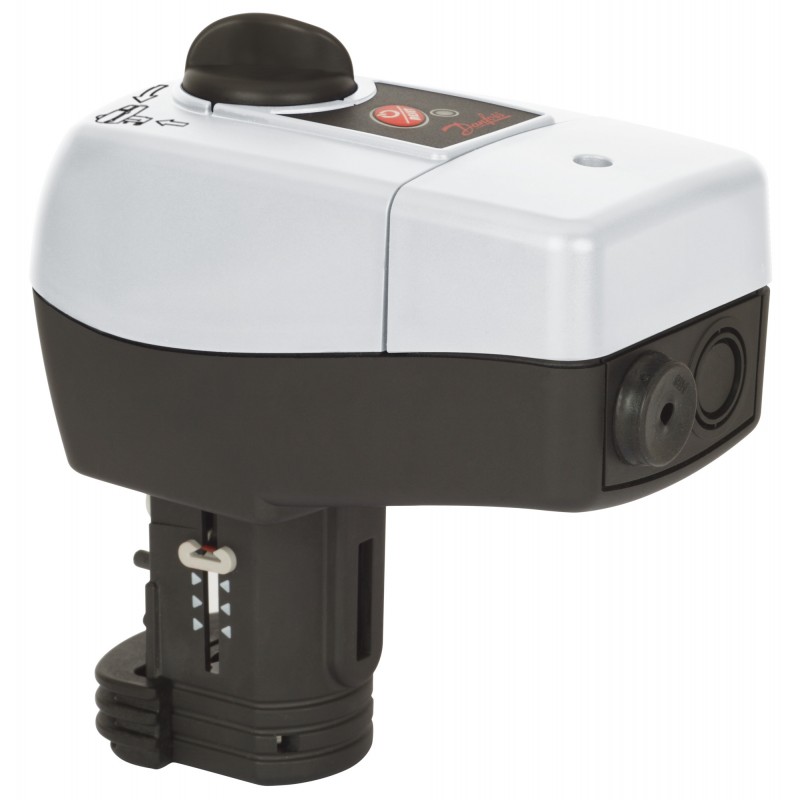

082H0171 DANFOSS REFRIGERATION AME 435 QM, Supply voltage [V] AC: 24, Supply voltage [V] DC: 24, 20 mm, 15 s..
082H0171
DANFOSS REFRIGERATION
AME 435 QM, Supply voltage [V] AC: 24, Supply voltage [V] DC: 24, 20 mm, 15 s/mm;8 s/mm;3 s/mm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AME 435 QM, 24V AC/DC, 20 mm, actuator for modulating control for AB-QM DN 40-100
Product details
| Gross weight | 0.712 Kilogram |
| Net weight | 0.704 Kilogram |
| Volume | 3.529 Liter |
| EAN | 5710104034454 |
| Type | AME 435 QM |
| Product group | Gear actuators |
| Gross weight | 0.712 Kilogram |
| Net weight | 0.704 Kilogram |
| Volume | 3.529 Liter |
| EAN | 5710104034454 |
| Type | AME 435 QM |
| Product group | Gear actuators |
| Approval standard | EC EN 60730 |
| Cable included | No |
| China RoHS compliance | Out of scope |
| Compatibility with valve | AB-QM DN 40-100 |
| Contains batteries | No |
| Control characteristic | Alpha LIN LOG |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [V] | 0(2) - 10 V |
| Control signal type | Modulating |
| Description | AME 435 QM, 24V AC/DC, 20 mm, actuator for modulating control for AB-QM DN 40-100 |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1cba026d-1513-47bf-bff3-afc65301c190 |
| SCIP dossier product name | AME 435 QM 24V 7.5-15s/mm 20mm 400N |
| Spindle speed [s/mm] | 8 s/mm 15 s/mm 3 s/mm |
| Stroke [mm] | 20 mm |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Approval standard | EC EN 60730 |
| Cable included | No |
| China RoHS compliance | Out of scope |
| Compatibility with valve | AB-QM DN 40-100 |
| Contains batteries | No |
| Control characteristic | Alpha LIN LOG |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [V] | 0(2) - 10 V |
| Control signal type | Modulating |
| Description | AME 435 QM, 24V AC/DC, 20 mm, actuator for modulating control for AB-QM DN 40-100 |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1cba026d-1513-47bf-bff3-afc65301c190 |
| SCIP dossier product name | AME 435 QM 24V 7.5-15s/mm 20mm 400N |
| Spindle speed [s/mm] | 8 s/mm 15 s/mm 3 s/mm |
| Stroke [mm] | 20 mm |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082H0171 082H0171 EN_082H0171.pdf | 2 Mbytes |
|
