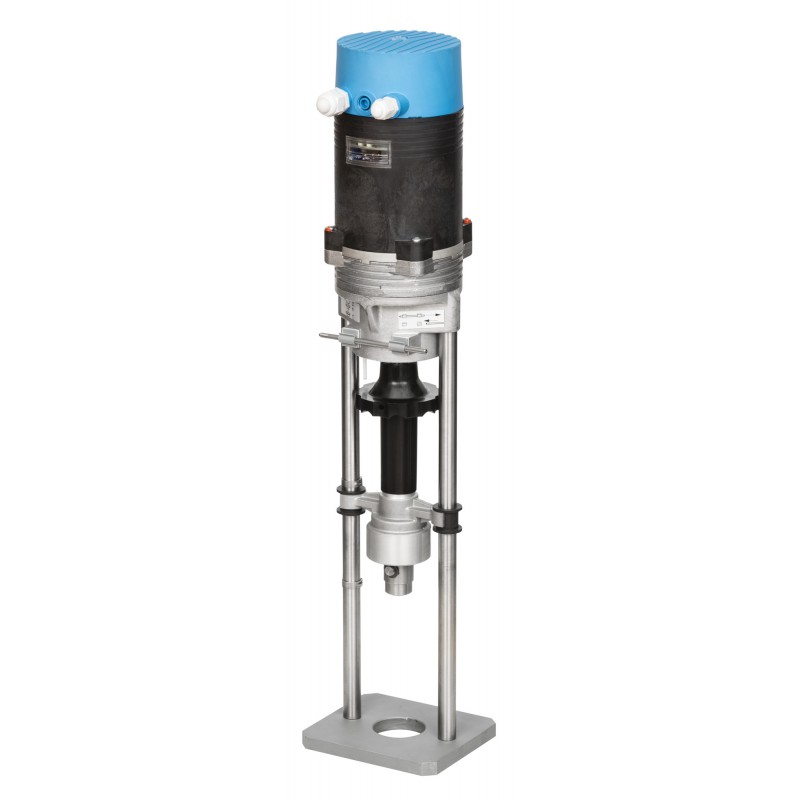

082G3510 DANFOSS REFRIGERATION AME 855, Supply voltage [V] AC: 24, 2 s/mm, 80 mm
082G3510
DANFOSS REFRIGERATION
AME 855, Supply voltage [V] AC: 24, 2 s/mm, 80 mm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AME 855 24V
Product details
| Gross weight | 16.5 Kilogram |
| Net weight | 12 Kilogram |
| Volume | 164.164 Liter |
| EAN | 5702425112331 |
| Type | AME 855 |
| Product group | Gear actuators |
| Gross weight | 16.5 Kilogram |
| Net weight | 12 Kilogram |
| Volume | 164.164 Liter |
| EAN | 5702425112331 |
| Type | AME 855 |
| Product group | Gear actuators |
| Actuator speed [s/mm] | 2 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 50 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Heating and cooling |
| China RoHS compliance | Out of scope |
| Closing force [N] | 15000 N |
| Contains batteries | No |
| Control signal type | Modulating/3-point |
| Description | AME 855 24V |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| In scope of WEEE | No |
| IP protection class | IP54 |
| Manual operation | Yes |
| Media temperature [°C] [Max] | 130 °C |
| Power consumption [W] | 50 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 4770f63f-34f7-44e3-8275-1d3e2d5a205c |
| SCIP dossier product name | AMV(E) 65x/685/855 - 2 |
| Spindle speed [s/mm] | 2 s/mm |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Stroke [mm] | 80 mm |
| Supply voltage [V] AC | 24 V |
| Actuator speed [s/mm] | 2 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 50 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Heating and cooling |
| China RoHS compliance | Out of scope |
| Closing force [N] | 15000 N |
| Contains batteries | No |
| Control signal type | Modulating/3-point |
| Description | AME 855 24V |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| In scope of WEEE | No |
| IP protection class | IP54 |
| Manual operation | Yes |
| Media temperature [°C] [Max] | 130 °C |
| Power consumption [W] | 50 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 4770f63f-34f7-44e3-8275-1d3e2d5a205c |
| SCIP dossier product name | AMV(E) 65x/685/855 - 2 |
| Spindle speed [s/mm] | 2 s/mm |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Stroke [mm] | 80 mm |
| Supply voltage [V] AC | 24 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082G3510 082G3510 ES_082H0121.pdf | 918 Kbytes |
|
