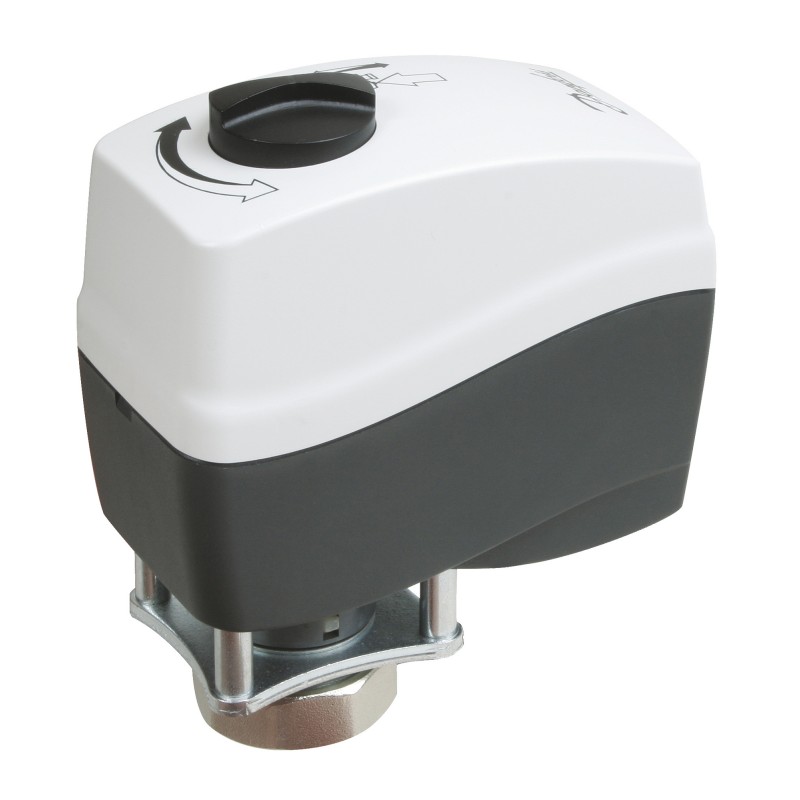

082G3089 DANFOSS REFRIGERATION Electrical actuators, AMV 150, Supply voltage [V] AC: 24
082G3089
DANFOSS REFRIGERATION
Electrical actuators, AMV 150, Supply voltage [V] AC: 24
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AMV 150 24V 24s/mm 5mm 250N
Product details
| Gross weight | 0.399 Kilogram |
| Net weight | 0.399 Kilogram |
| Volume | 0.941 Liter |
| EAN | 5702421551769 |
| Type | AMV 150 |
| Product group | Electrical actuators |
| Gross weight | 0.399 Kilogram |
| Net weight | 0.399 Kilogram |
| Volume | 0.941 Liter |
| EAN | 5702421551769 |
| Type | AMV 150 |
| Product group | Electrical actuators |
| Actuator speed [s/mm] | 24 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | District Heating and zone |
| China RoHS compliance | Out of scope |
| Closing force [N] | 250 N |
| Contains batteries | No |
| Control signal type | 3-point |
| Description | AMV 150 24V 24s/mm 5mm 250N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Media temperature [°C] [Max] | 150 °C |
| Position feedback | no - potentiometer needed |
| Power consumption [W] | 1 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 5941c580-cf9b-456d-b3c6-52adde56771d |
| SCIP dossier product name | AMV (E) 130 - 150 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 0 " |
| Actuator speed [s/mm] | 24 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | District Heating and zone |
| China RoHS compliance | Out of scope |
| Closing force [N] | 250 N |
| Contains batteries | No |
| Control signal type | 3-point |
| Description | AMV 150 24V 24s/mm 5mm 250N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Media temperature [°C] [Max] | 150 °C |
| Position feedback | no - potentiometer needed |
| Power consumption [W] | 1 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 5941c580-cf9b-456d-b3c6-52adde56771d |
| SCIP dossier product name | AMV (E) 130 - 150 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 0 " |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082G3089 082G3089 ES_082G3090.pdf | 572 Kbytes |
|
