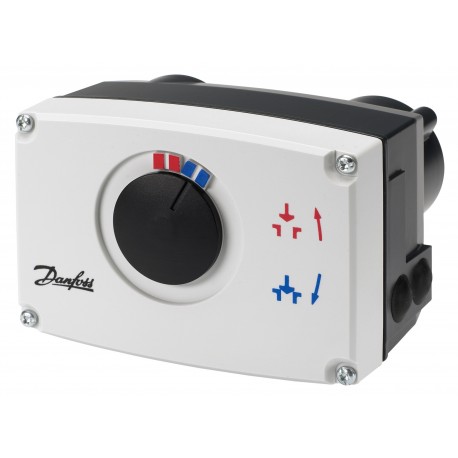

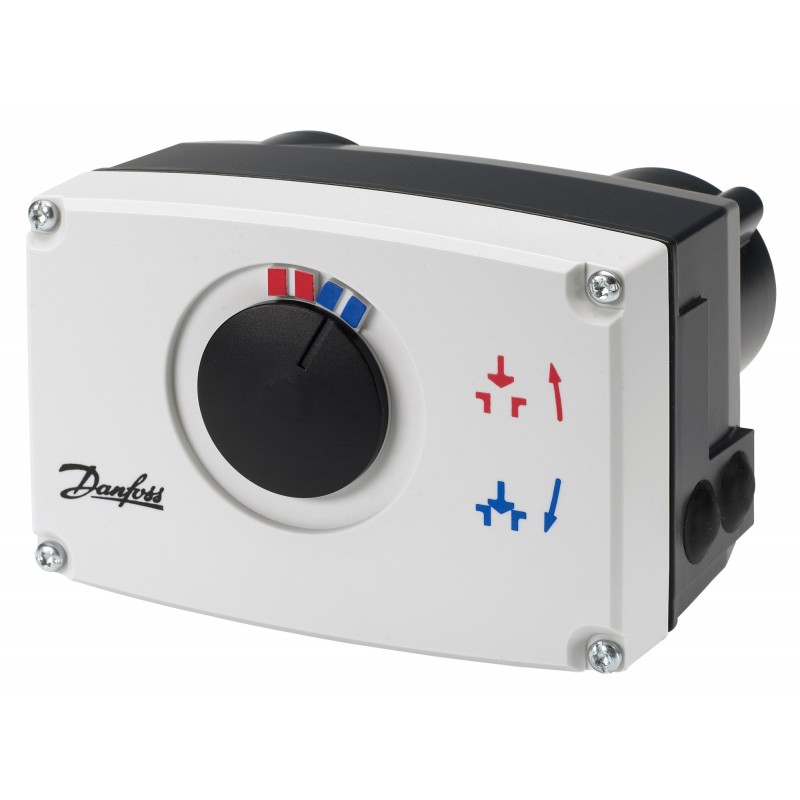

082G3037 DANFOSS REFRIGERATION Electrical actuators, AMV 23 SL, Supply voltage [V] AC: 230
082G3037
DANFOSS REFRIGERATION
Electrical actuators, AMV 23 SL, Supply voltage [V] AC: 230
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AMV 23 SL 230V 15s/mm 10mm 450N
Product details
| Gross weight | 1.98 Kilogram |
| Net weight | 1.956 Kilogram |
| Volume | 3.562 Liter |
| EAN | 5702421533307 |
| Type | AMV 23 SL |
| Product group | Electrical actuators |
| Gross weight | 1.98 Kilogram |
| Net weight | 1.956 Kilogram |
| Volume | 3.562 Liter |
| EAN | 5702421533307 |
| Type | AMV 23 SL |
| Product group | Electrical actuators |
| Actuator speed [s/mm] | 15 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | District Heating |
| China RoHS compliance | Out of scope |
| Closing force [N] | 450 N |
| Contains batteries | No |
| Control signal type | 3-point |
| Description | AMV 23 SL 230V 15s/mm 10mm 450N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | No |
| Position feedback | no - potentiometer needed |
| Power consumption [W] | 2 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | Yes |
| SCIP dossier no. | 395c7a49-16ff-4990-8648-fdfdc248a747 |
| SCIP dossier product name | AMV(E) 23 |
| Speed type | Standard |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 10 mm |
| Stroke limitation | Yes |
| Supply voltage [V] AC | 230 V |
| Actuator speed [s/mm] | 15 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | District Heating |
| China RoHS compliance | Out of scope |
| Closing force [N] | 450 N |
| Contains batteries | No |
| Control signal type | 3-point |
| Description | AMV 23 SL 230V 15s/mm 10mm 450N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | No |
| Position feedback | no - potentiometer needed |
| Power consumption [W] | 2 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | Yes |
| SCIP dossier no. | 395c7a49-16ff-4990-8648-fdfdc248a747 |
| SCIP dossier product name | AMV(E) 23 |
| Speed type | Standard |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 10 mm |
| Stroke limitation | Yes |
| Supply voltage [V] AC | 230 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082G3037 082G3037 ES_082G3035.pdf | 683 Kbytes |
|
