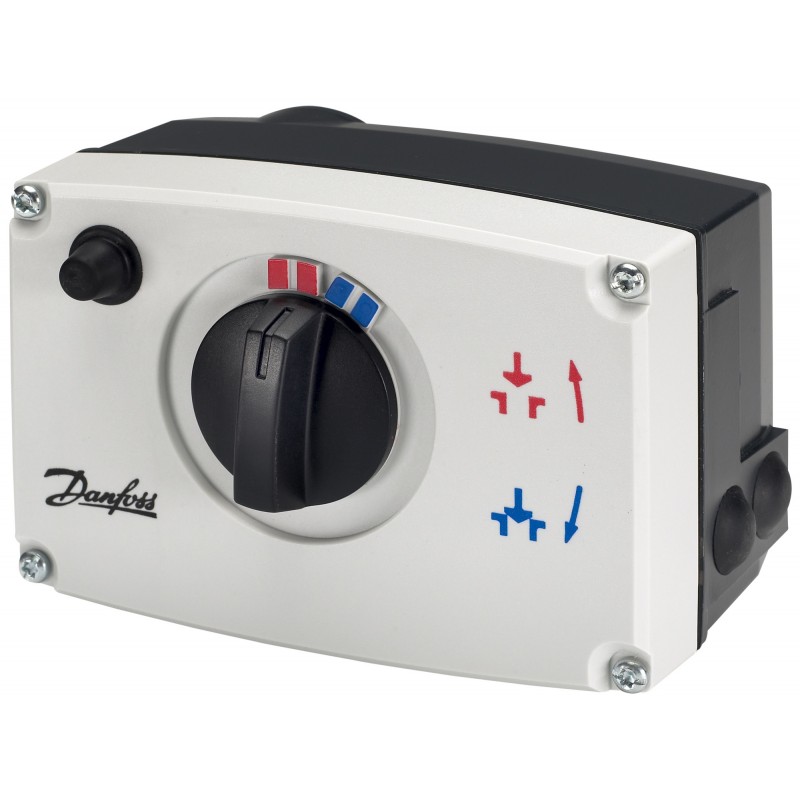

082G3015 DANFOSS REFRIGERATION Electrical actuators, AME 20, Supply voltage [V] AC: 24
082G3015
DANFOSS REFRIGERATION
Electrical actuators, AME 20, Supply voltage [V] AC: 24
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AME 20 24V 15s/mm 10mm 450N
Product details
| Gross weight | 1.538 Kilogram |
| Net weight | 1.518 Kilogram |
| Volume | 3.368 Liter |
| EAN | 5702421510636 |
| Type | AME 20 |
| Product group | Electrical actuators |
| Gross weight | 1.538 Kilogram |
| Net weight | 1.518 Kilogram |
| Volume | 3.368 Liter |
| EAN | 5702421510636 |
| Type | AME 20 |
| Product group | Electrical actuators |
| Actuator speed [s/mm] | 15 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | District Heating |
| China RoHS compliance | Out of scope |
| Closing force [N] | 450 N |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 24 kOhm |
| Control signal type | Modulating/3-point |
| Description | AME 20 24V 15s/mm 10mm 450N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Position feedback | yes |
| Power consumption [W] | 4 W |
| Protection Class of the Coating | III |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | c5b6fd67-cf6c-493f-8f13-2d65fca1997f |
| SCIP dossier product name | AMV(E) 20 - 35 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 10 mm |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 0 " |
| Actuator speed [s/mm] | 15 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | District Heating |
| China RoHS compliance | Out of scope |
| Closing force [N] | 450 N |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 24 kOhm |
| Control signal type | Modulating/3-point |
| Description | AME 20 24V 15s/mm 10mm 450N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Position feedback | yes |
| Power consumption [W] | 4 W |
| Protection Class of the Coating | III |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | c5b6fd67-cf6c-493f-8f13-2d65fca1997f |
| SCIP dossier product name | AMV(E) 20 - 35 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 10 mm |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 0 " |
