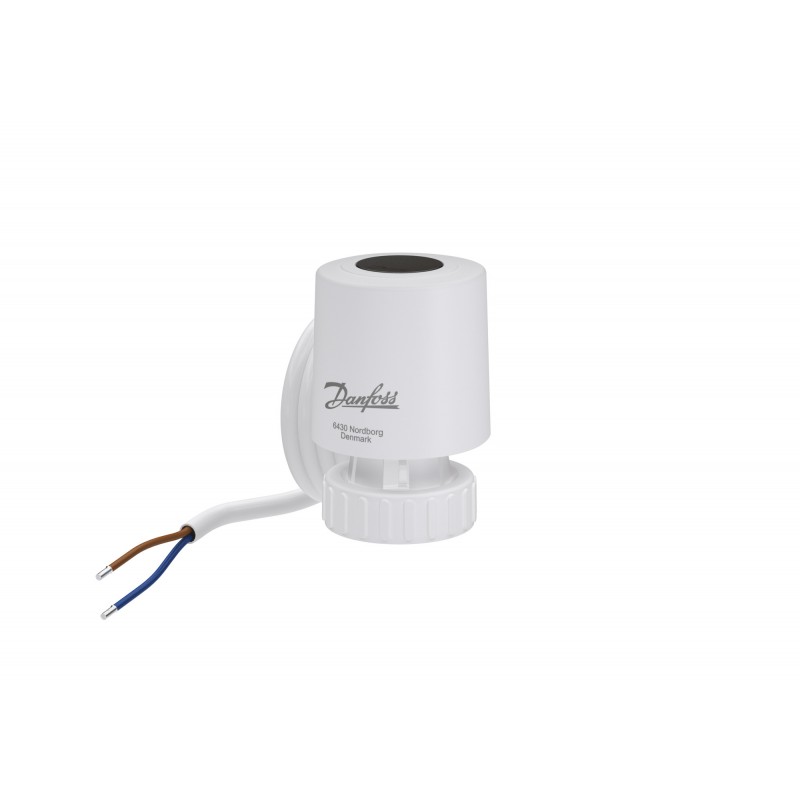

082F1603 DANFOSS REFRIGERATION TWA-Q, 24 V AC/DC, 5 mm, Normally open, 1.2 m
082F1603
DANFOSS REFRIGERATION
TWA-Q, 24 V AC/DC, 5 mm, Normally open, 1.2 m
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲TWA-Q, 24V, 5mm, Normally Open thermal actuator, 1.2m cable, for AB-QM DN15-32 valves
Product details
| Gross weight | 0.18 Kilogram |
| Net weight | 0.164 Kilogram |
| Volume | 0.475 Liter |
| EAN | 5702425243127 |
| Type | TWA-Q |
| Product group | Thermal actuators |
| Gross weight | 0.18 Kilogram |
| Net weight | 0.164 Kilogram |
| Volume | 0.475 Liter |
| EAN | 5702425243127 |
| Type | TWA-Q |
| Product group | Thermal actuators |
| Actuator type | Thermal |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | 2 °C |
| Application | HVAC |
| Approval standard | EC EN 60730 |
| Cable included | Yes |
| Cable length [m] | 1.2 m |
| China RoHS compliance | Out of scope |
| Closing force [N] | 110 N |
| Compatibility with valve | AB-QM DN 15-32 |
| Contains batteries | No |
| Control signal type | On/off and PWM |
| De-energized position | Normally open |
| Description | TWA-Q, 24V, 5mm, Normally Open thermal actuator, 1.2m cable, for AB-QM DN15-32 valves |
| Electrical Protection Class according to EN60730-1 | III |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| Power consumption [W] | 2 W |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 06802140-664a-49c3-9dc7-3da2dd5cc68b |
| SCIP dossier product name | TWA-Q |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 5 mm |
| Supply voltage [V] | 24 V AC/DC |
| Supply voltage [V] DC | 24 V |
| Actuator type | Thermal |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | 2 °C |
| Application | HVAC |
| Approval standard | EC EN 60730 |
| Cable included | Yes |
| Cable length [m] | 1.2 m |
| China RoHS compliance | Out of scope |
| Closing force [N] | 110 N |
| Compatibility with valve | AB-QM DN 15-32 |
| Contains batteries | No |
| Control signal type | On/off and PWM |
| De-energized position | Normally open |
| Description | TWA-Q, 24V, 5mm, Normally Open thermal actuator, 1.2m cable, for AB-QM DN15-32 valves |
| Electrical Protection Class according to EN60730-1 | III |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| Power consumption [W] | 2 W |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 06802140-664a-49c3-9dc7-3da2dd5cc68b |
| SCIP dossier product name | TWA-Q |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 5 mm |
| Supply voltage [V] | 24 V AC/DC |
| Supply voltage [V] DC | 24 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082F1603 082F1603 EN_003Z0226.pdf | 2 Mbytes |
|
