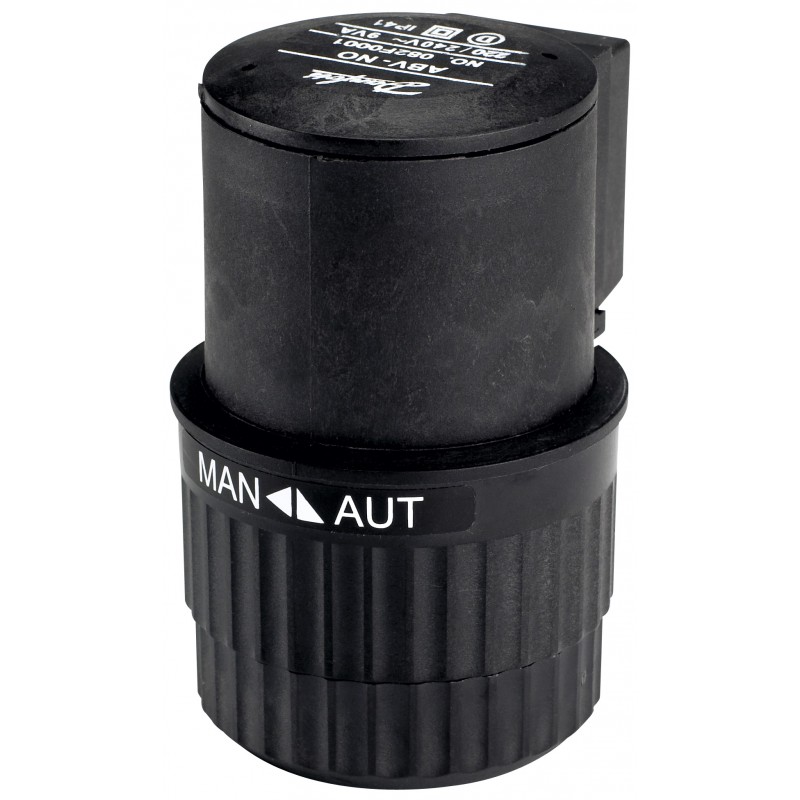

082F0051 DANFOSS REFRIGERATION Electrical actuators, ABV, Supply voltage [V] AC: 230
082F0051
DANFOSS REFRIGERATION
Electrical actuators, ABV, Supply voltage [V] AC: 230
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲ABV NC-220V AKT
Product details
| Gross weight | 0.304 Kilogram |
| Net weight | 0.304 Kilogram |
| Volume | 0.556 Liter |
| EAN | 5702421509326 |
| Type | ABV |
| Product group | Electrical actuators |
| Gross weight | 0.304 Kilogram |
| Net weight | 0.304 Kilogram |
| Volume | 0.556 Liter |
| EAN | 5702421509326 |
| Type | ABV |
| Product group | Electrical actuators |
| Actuator speed [s/mm] | 540 s/mm |
| Actuator type | Thermo-pneumatic |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | flow temperature |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Control signal type | 2-point |
| Description | ABV NC-220V AKT |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP41 |
| Manual operation | Yes |
| Power consumption [W] | 9 W |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 6dbf9109-1117-4e8b-b477-7e109d7fd8d1 |
| SCIP dossier product name | ABV NC |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage [V] AC | 230 V |
| Turn time per 90° [s] | 0 " |
| Actuator speed [s/mm] | 540 s/mm |
| Actuator type | Thermo-pneumatic |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | flow temperature |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Control signal type | 2-point |
| Description | ABV NC-220V AKT |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP41 |
| Manual operation | Yes |
| Power consumption [W] | 9 W |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 6dbf9109-1117-4e8b-b477-7e109d7fd8d1 |
| SCIP dossier product name | ABV NC |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage [V] AC | 230 V |
| Turn time per 90° [s] | 0 " |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082F0051 082F0051 EN_082F0001.pdf | 229 Kbytes |
|
