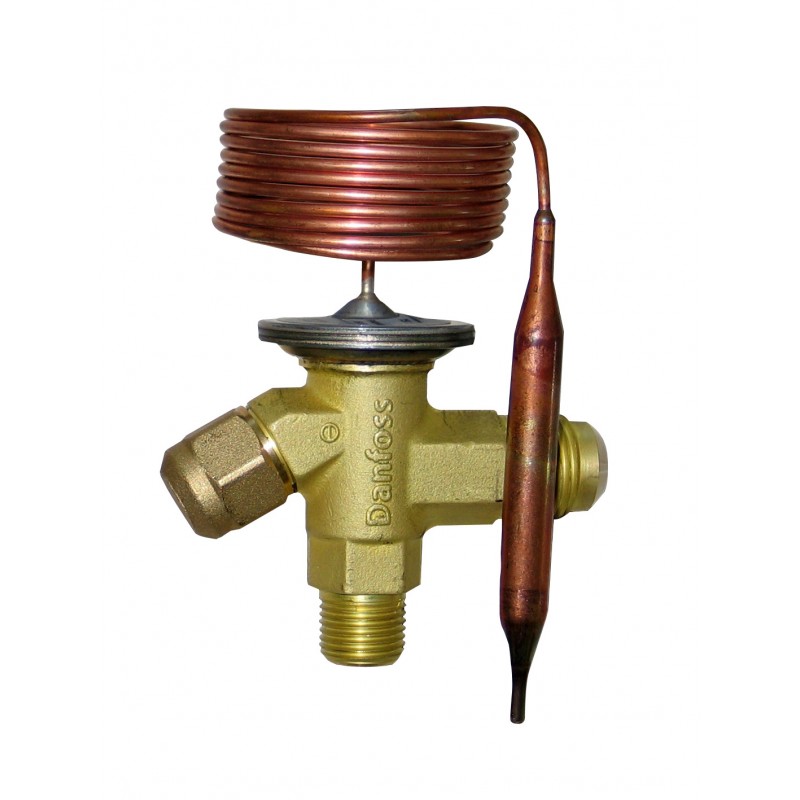

068-3360 DANFOSS REFRIGERATION Desuperheating valve
068-3360
DANFOSS REFRIGERATION
Desuperheating valve
Desuperheating valve, TXI 2, Flare
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet size [in]: 3/8 in, Inlet connection type: Flare, Outlet size [in]: 1/2 in, Outlet connection type: Flare, Pressure range (Pi) [bar]: 1 - 5, Temperature range [°C]: 80 - 110
Product details
| Gross weight | 0.336 Kilogram |
| Net weight | 0.313 Kilogram |
| Volume | 0.486 Liter |
| EAN | 5702422103158 |
| Type | TXI 2 |
| Product group | Expansion valves |
| Product Name Description | Desuperheating valve |
| Gross weight | 0.336 Kilogram |
| Net weight | 0.313 Kilogram |
| Volume | 0.486 Liter |
| EAN | 5702422103158 |
| Type | TXI 2 |
| Product group | Expansion valves |
| Product Name Description | Desuperheating valve |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| China RoHS compliance | Yes with exemptions |
| Contains batteries | No |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 2 |
| Inlet connection type | Flare |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet connection type | Flare |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Pressure range (Pi) [bar] [max] | 5 bar |
| Pressure range (Pi) [bar] [min] | 1 bar |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIP dossier product name | TU/TC |
| Static Superheat (SS) [°C] | 101.5 °C |
| Static Superheat (SS) [°F] | 182.7 °F |
| Temperature range [°C] [max] | 110 °C |
| Temperature range [°C] [min] | 80 °C |
| Temperature range [°F] [max] | 230 °F |
| Temperature range [°F] [min] | 175 °F |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| China RoHS compliance | Yes with exemptions |
| Contains batteries | No |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 2 |
| Inlet connection type | Flare |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet connection type | Flare |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Pressure range (Pi) [bar] [max] | 5 bar |
| Pressure range (Pi) [bar] [min] | 1 bar |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIP dossier product name | TU/TC |
| Static Superheat (SS) [°C] | 101.5 °C |
| Static Superheat (SS) [°F] | 182.7 °F |
| Temperature range [°C] [max] | 110 °C |
| Temperature range [°C] [min] | 80 °C |
| Temperature range [°F] [max] | 230 °F |
| Temperature range [°F] [min] | 175 °F |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 068-3360 068-3360 ES_068-2003.pdf | 597 Kbytes |
|
