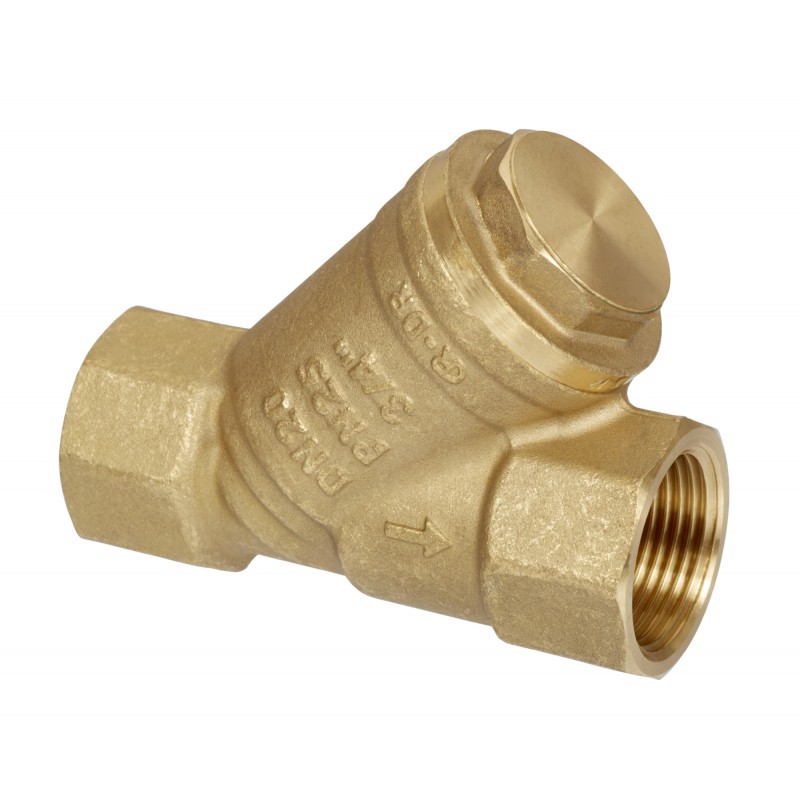

065B8236 DANFOSS REFRIGERATION FVR, Pressure nominal [bar]: 25, DN 20, With plug, Internal thread, Rp 3/4
065B8236
DANFOSS REFRIGERATION
FVR, Pressure nominal [bar]: 25, DN 20, With plug, Internal thread, Rp 3/4
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲FVR strainer DN20 Rp3/4
Product details
| Gross weight | 0.3 Kilogram |
| Net weight | 0.29 Kilogram |
| Volume | 0.168 Liter |
| EAN | 5710104042237 |
| Type | FVR |
| Product group | Auxiliary Products |
| Gross weight | 0.3 Kilogram |
| Net weight | 0.29 Kilogram |
| Volume | 0.168 Liter |
| EAN | 5710104042237 |
| Type | FVR |
| Product group | Auxiliary Products |
| Approval standard | ISO 7/1 |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection size | Rp 3/4 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | FVR strainer DN20 Rp3/4 |
| Diameter [mm] | 20 mm |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 7.9 m³/h |
| Label product | Yes |
| Material | DZR brass CuZn36Pb2As |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mesh size [mm] | 0.5 mm |
| Number of meshes [n/cm²] | 50 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 5022516a-2a85-4d12-8da0-b33e64f9a0c8 |
| SCIP dossier product name | 065B8236 |
| Size | DN 20 |
| Strainer type | With plug |
| Approval standard | ISO 7/1 |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection size | Rp 3/4 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | FVR strainer DN20 Rp3/4 |
| Diameter [mm] | 20 mm |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 7.9 m³/h |
| Label product | Yes |
| Material | DZR brass CuZn36Pb2As |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mesh size [mm] | 0.5 mm |
| Number of meshes [n/cm²] | 50 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 5022516a-2a85-4d12-8da0-b33e64f9a0c8 |
| SCIP dossier product name | 065B8236 |
| Size | DN 20 |
| Strainer type | With plug |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 065B8236 065B8236 ES_065B8236.pdf | 631 Kbytes |
|
