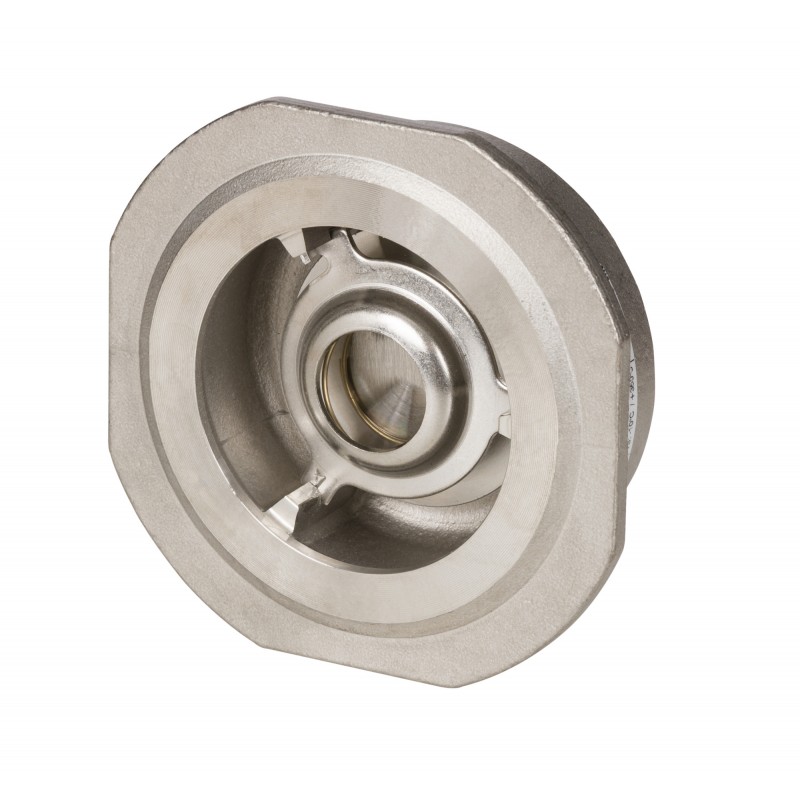

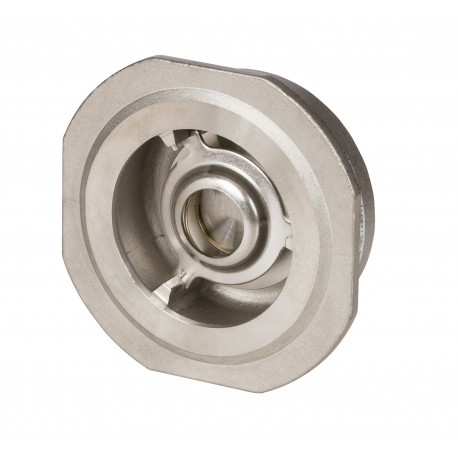

065B7537 DANFOSS REFRIGERATION Check Valve, NVD 812, PN 40, DN 80, Between Flange
065B7537
DANFOSS REFRIGERATION
Check Valve, NVD 812, PN 40, DN 80, Between Flange
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲NVD 812 PN40 DN80
Product details
| Gross weight | 2.406 Kilogram |
| Net weight | 2.367 Kilogram |
| Volume | 1.238 Liter |
| EAN | 5710104063683 |
| Type | NVD 812 |
| Product group | Butterfly valves |
| Gross weight | 2.406 Kilogram |
| Net weight | 2.367 Kilogram |
| Volume | 1.238 Liter |
| EAN | 5710104063683 |
| Type | NVD 812 |
| Product group | Butterfly valves |
| Application | District Heating |
| China RoHS compliance | Out of scope |
| Connection types | Between Flange |
| Contains batteries | No |
| Description | NVD 812 PN40 DN80 |
| Diameter [mm] | 80 mm |
| EU RoHS compliance | Out of scope |
| Function | Non-return |
| Kvs values [m³/h] | 111 m³/h |
| Label product | Yes |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 350 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Medium alternative 2 | Domestic water |
| Mounting orientation | free |
| Number of ports | 2 |
| Operation type | Self-operating |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 40 |
| Pressure nominal [bar] | 40 bar |
| REACH Candidate List substances | No |
| Valve body material | Stainless steel |
| Valve size | DN 80 |
| Valve type | Check Valve |
| Application | District Heating |
| China RoHS compliance | Out of scope |
| Connection types | Between Flange |
| Contains batteries | No |
| Description | NVD 812 PN40 DN80 |
| Diameter [mm] | 80 mm |
| EU RoHS compliance | Out of scope |
| Function | Non-return |
| Kvs values [m³/h] | 111 m³/h |
| Label product | Yes |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 350 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Medium alternative 2 | Domestic water |
| Mounting orientation | free |
| Number of ports | 2 |
| Operation type | Self-operating |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 40 |
| Pressure nominal [bar] | 40 bar |
| REACH Candidate List substances | No |
| Valve body material | Stainless steel |
| Valve size | DN 80 |
| Valve type | Check Valve |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 065B7537 065B7537 ES_065B7532.pdf | 468 Kbytes |
|
