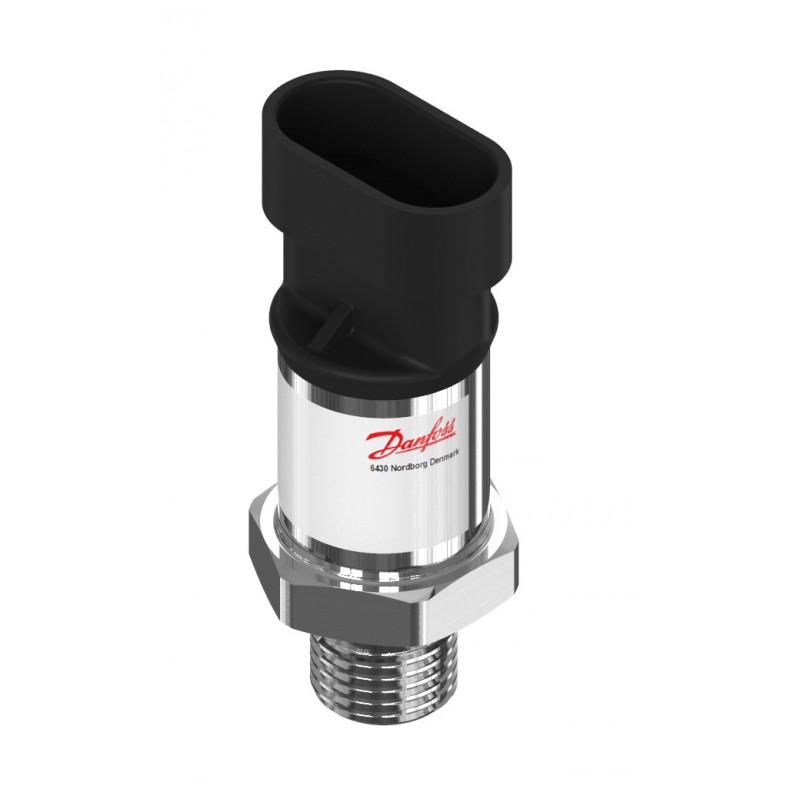

063G1728 DANFOSS REFRIGERATION Pressure transmitter, MBS 1200, 0 bar 15 bar, 0 psi 217 psi
063G1728
DANFOSS REFRIGERATION
Pressure transmitter, MBS 1200, 0 bar - 15 bar, 0 psi - 217 psi
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Ratio metric, Electrical connection: AMP SuperSeal, Pressure connection type: M, Pressure connection size: 12 x 1.5, Specification key: MBS 1200-2116-C4FA06
Product details
| Gross weight | 0.066 Kilogram |
| Net weight | 0.062 Kilogram |
| Volume | 0.098 Liter |
| EAN | 5702428484848 |
| Type | MBS 1200 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Gross weight | 0.066 Kilogram |
| Net weight | 0.062 Kilogram |
| Volume | 0.098 Liter |
| EAN | 5702428484848 |
| Type | MBS 1200 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + output | Pin 1 |
| + supply | Pin 3 |
| - common | Pin 2 |
| Accuracy, typical [±FS%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE C UL US UL Recognized |
| Burst pressure [bar] | 640 bar |
| Burst pressure [psig] | 9200 psig |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Compensated temp. range [°F] [max] | 257 °F |
| Compensated temp. range [°F] [min] | -40 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | AMP SuperSeal |
| Electrical connection size | 3 pin |
| Electrical connection standard | 1,5 SERIES |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 48 bar |
| Overload pressure max. [psig] | 700 psig |
| Packing format | Multi pack |
| Pin surface material | Sn |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 12 x 1.5 |
| Pressure connection standard | ISO 6149-2 |
| Pressure connection type | M |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 15 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 217 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | No |
| Quantity per packing format | 48 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances | No |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1200-2116-C4FA06 |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| UL mark | Yes |
| + output | Pin 1 |
| + supply | Pin 3 |
| - common | Pin 2 |
| Accuracy, typical [±FS%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE C UL US UL Recognized |
| Burst pressure [bar] | 640 bar |
| Burst pressure [psig] | 9200 psig |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Compensated temp. range [°F] [max] | 257 °F |
| Compensated temp. range [°F] [min] | -40 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | AMP SuperSeal |
| Electrical connection size | 3 pin |
| Electrical connection standard | 1,5 SERIES |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 48 bar |
| Overload pressure max. [psig] | 700 psig |
| Packing format | Multi pack |
| Pin surface material | Sn |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 12 x 1.5 |
| Pressure connection standard | ISO 6149-2 |
| Pressure connection type | M |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 15 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 217 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | No |
| Quantity per packing format | 48 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances | No |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1200-2116-C4FA06 |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 063G1728 063G1728 EN_063G1410.pdf | 537 Kbytes |
|
