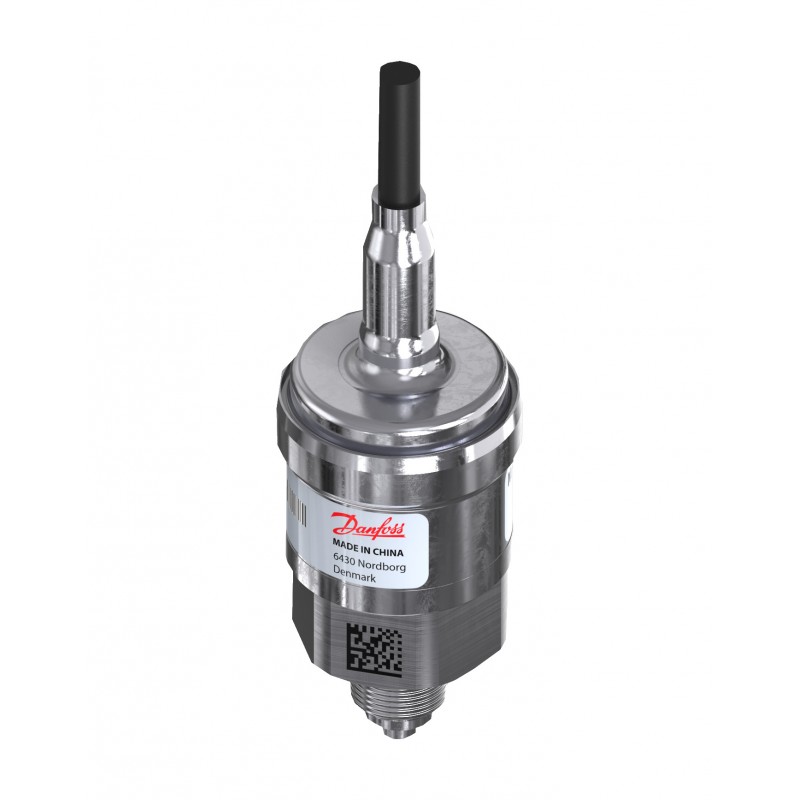

060G6186 DANFOSS REFRIGERATION Pressure transmitter, AKS 3000, 0 bar 10 bar, 0 psi 145 psi
060G6186
DANFOSS REFRIGERATION
Pressure transmitter, AKS 3000, 0 bar - 10 bar, 0 psi - 145 psi
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Cable, Pressure connection type: G, Pressure connection size: 1/4, Specification key: AKS 3000-2031-A3AB04-0
Product details
| Gross weight | 0.264 Kilogram |
| Net weight | 0.249 Kilogram |
| Volume | 1.274 Liter |
| EAN | 5702428491211 |
| Type | AKS 3000 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Gross weight | 0.264 Kilogram |
| Net weight | 0.249 Kilogram |
| Volume | 1.274 Liter |
| EAN | 5702428491211 |
| Type | AKS 3000 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + supply | Brown |
| - common | Black |
| Accuracy, max. [±FS%] | 2 % |
| Accuracy, typical [±FS%] | 1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX C UL US UL Recognized CE GOST POCC |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179 E227388 E31024 |
| Cable length [in] | 79 in |
| Cable length [m] | 2 m |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Screened |
| Electrical connection | Cable |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| International Article Number | 5702428491211 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 50 bar |
| Overload pressure max. [psi] | 725 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | EN 837 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 10 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 145 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 442fa760-b631-4ddb-a979-55b604269353 |
| SCIP dossier product name | Sensor AKS 3000 |
| Specification key | AKS 3000-2031-A3AB04-0 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| UL mark | Yes |
| + supply | Brown |
| - common | Black |
| Accuracy, max. [±FS%] | 2 % |
| Accuracy, typical [±FS%] | 1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX C UL US UL Recognized CE GOST POCC |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179 E227388 E31024 |
| Cable length [in] | 79 in |
| Cable length [m] | 2 m |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Screened |
| Electrical connection | Cable |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| International Article Number | 5702428491211 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 50 bar |
| Overload pressure max. [psi] | 725 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | EN 837 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 10 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 145 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 442fa760-b631-4ddb-a979-55b604269353 |
| SCIP dossier product name | Sensor AKS 3000 |
| Specification key | AKS 3000-2031-A3AB04-0 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 060G6186 060G6186 IT_060G1007.pdf | 664 Kbytes |
|
