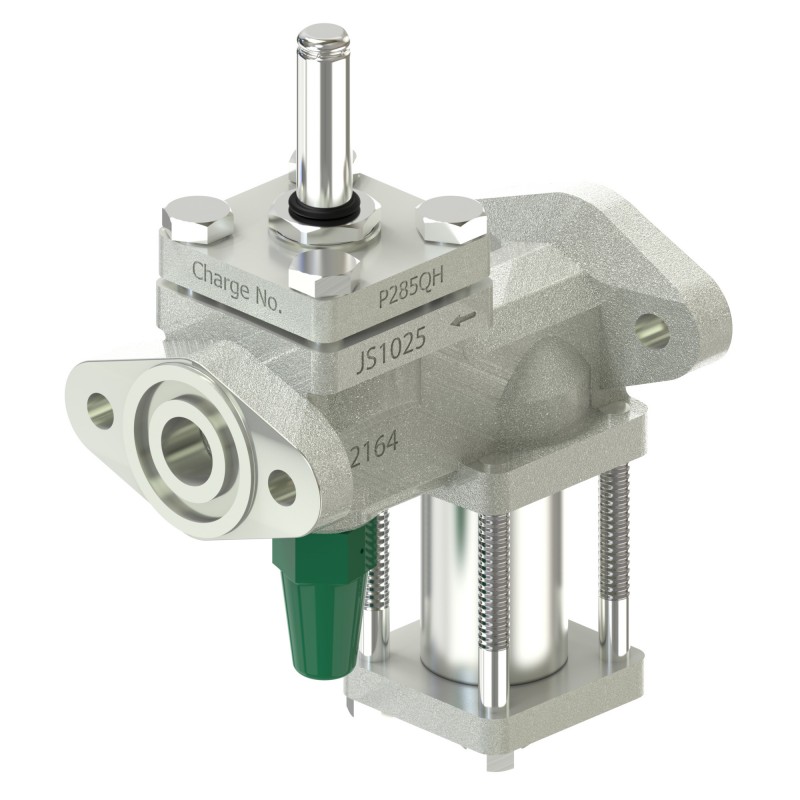

027L4567 DANFOSS REFRIGERATION Valve station, ICF 20 EVRAT-ICFA 20B, 20 mm, Connection standard: NA
027L4567
DANFOSS REFRIGERATION
Valve station, ICF 20 EVRAT-ICFA 20B, 20 mm, Connection standard: NA
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Connection size [mm]: 20, Connection type: Flange, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 42, Temperature range [°C]: -40 - 105
Product details
| Gross weight | 4.342 Kilogram |
| Net weight | 4 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5715162976906 |
| Type | ICF 20 EVRAT-ICFA 20B |
| Product group | Multifunction valves |
| Product Name Description | Valve station |
| Gross weight | 4.342 Kilogram |
| Net weight | 4 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5715162976906 |
| Type | ICF 20 EVRAT-ICFA 20B |
| Product group | Multifunction valves |
| Product Name Description | Valve station |
| Approval | EAC C UL US LISTED |
| Body material | Steel |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.2 |
| Connection material | Steel |
| Connection size [in] | 3/4 inch |
| Connection size [mm] | 20 mm |
| Connection standard | NA |
| Connection type | Flange |
| Contains batteries | No |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| Module 2 | Filter |
| Module 2 type | ICFF 15 |
| Module 3 | Solenoid valve |
| Module 3 type | ICFA 20B |
| Module 4 | Manual opening |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Product accessories | Flanges ICF accessories |
| Product description | Control Solution |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407F R409A R410A R421A R422B R438A R449A R450A R452A R502 R507A R513A R515B R717 |
| SCIP dossier no. | f6a29f33-704f-4e94-9054-608e74f2a435 |
| SCIP dossier product name | ICF |
| Serviceable | ICF spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 105 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 221 °F |
| Temperature range [°F] [min] | -40 °F |
| Approval | EAC C UL US LISTED |
| Body material | Steel |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.2 |
| Connection material | Steel |
| Connection size [in] | 3/4 inch |
| Connection size [mm] | 20 mm |
| Connection standard | NA |
| Connection type | Flange |
| Contains batteries | No |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| Module 2 | Filter |
| Module 2 type | ICFF 15 |
| Module 3 | Solenoid valve |
| Module 3 type | ICFA 20B |
| Module 4 | Manual opening |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Product accessories | Flanges ICF accessories |
| Product description | Control Solution |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407F R409A R410A R421A R422B R438A R449A R450A R452A R502 R507A R513A R515B R717 |
| SCIP dossier no. | f6a29f33-704f-4e94-9054-608e74f2a435 |
| SCIP dossier product name | ICF |
| Serviceable | ICF spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 105 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 221 °F |
| Temperature range [°F] [min] | -40 °F |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 027L4567 027L4567 EN_027L3430.pdf | 3 Mbytes |
|
