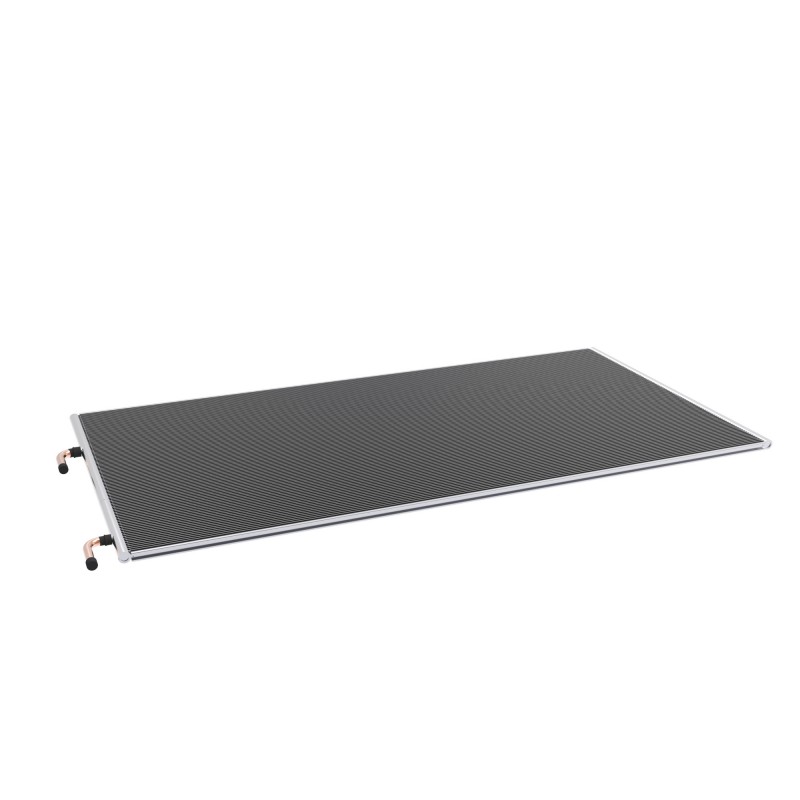

021U0264 DANFOSS REFRIGERATION Micro Channel heat exchanger, MCHE 25.4X2X20 DF0321 M/8
021U0264
DANFOSS REFRIGERATION
Micro Channel heat exchanger, MCHE 25.4X2X20 DF0321 M/8
Micro Channel heat exchanger, MCHE D2000-C, Multi pack
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Rated capacity R410A [kW]: 60.3, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
Product details
| Gross weight | 42.1 Kilogram |
| Net weight | 26.258 Kilogram |
| Volume | 123.143 Liter |
| EAN | 5702424291631 |
| Type | MCHE D2000-C |
| Product group | Heat exchangers |
| Product Name Description | Micro Channel heat exchanger |
| Gross weight | 42.1 Kilogram |
| Net weight | 26.258 Kilogram |
| Volume | 123.143 Liter |
| EAN | 5702424291631 |
| Type | MCHE D2000-C |
| Product group | Heat exchangers |
| Product Name Description | Micro Channel heat exchanger |
| Application area | Chiller |
| Approval | EAC PED UL |
| Approval file name | SA33862 CE-0062-PED-H-DMC 001-20-CHN-A ЕАЭС KZ 7100841.13.12.01130 |
| Body material | Aluminium |
| China RoHS compliance | Yes |
| Coil depth [in] | 1 in |
| Coil depth [mm] | 25.4 mm |
| Coil height [in] | 41.67 in |
| Coil height [mm] | 1058.3 mm |
| Coil Length [in] | 78.74 in |
| Coil Length [mm] | 2000 mm |
| Connection material | Copper |
| Contains batteries | No |
| Design pressure [MPa] | 4.5 MPa |
| Design pressure [psig] | 653 psig |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fin pitch [mm] | 1.1 mm |
| Flow direction | Single-flow |
| Fluid Group | 1 2 |
| Identical product | 021U0265 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 in |
| Inlet size [mm] | 25.4 mm |
| Internal volume [cm3] | 5440 cm³ |
| Internal volume [in3] | 332 in³ |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Mounting bar material | Aluminium |
| Number of tubes [pcs] | 102 |
| Operation Ambient Temp [°C] [max] | 72 °C |
| Operation Ambient Temp [°C] [min] | -40 °C |
| Operation Ambient Temp [°F] [max] | 162 °F |
| Operation Ambient Temp [°F] [min] | -40 °F |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22.2 mm |
| Packing format | Multi pack |
| Part Number | DF0321 |
| PED category | III |
| Product accessories | No |
| Quantity per packing format | 15 pc |
| Rated cap. conditions [IMP] | Air speed=492 ft/min Ambient temp.=95 °F Delta t=21.6 °F Subcooling=9 °F |
| Rated cap. conditions [SI] | Air speed=2.5 m/s Ambient temp.=35 °C Delta t=12 °C Subcooling=5 °C |
| Rated capacity R410A [kW] | 60.3 kW |
| Rated capacity R410A [TR] | 17.15 TR |
| REACH Candidate List substances | No |
| Refrigerants | R410A R1234yf R134a R290 R32 R404A R407C R448A R449A R452A R452B R454B R513A R1234ze(E) R22 R444B R449B R454A R454C R455A R513B R514A R515A R515B R600a |
| Serviceable | No |
| Temperature range [°C] [max] | 121 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 250 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | D2000-C |
| UL mark | Yes |
| Application area | Chiller |
| Approval | EAC PED UL |
| Approval file name | SA33862 CE-0062-PED-H-DMC 001-20-CHN-A ЕАЭС KZ 7100841.13.12.01130 |
| Body material | Aluminium |
| China RoHS compliance | Yes |
| Coil depth [in] | 1 in |
| Coil depth [mm] | 25.4 mm |
| Coil height [in] | 41.67 in |
| Coil height [mm] | 1058.3 mm |
| Coil Length [in] | 78.74 in |
| Coil Length [mm] | 2000 mm |
| Connection material | Copper |
| Contains batteries | No |
| Design pressure [MPa] | 4.5 MPa |
| Design pressure [psig] | 653 psig |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fin pitch [mm] | 1.1 mm |
| Flow direction | Single-flow |
| Fluid Group | 1 2 |
| Identical product | 021U0265 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 in |
| Inlet size [mm] | 25.4 mm |
| Internal volume [cm3] | 5440 cm³ |
| Internal volume [in3] | 332 in³ |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Mounting bar material | Aluminium |
| Number of tubes [pcs] | 102 |
| Operation Ambient Temp [°C] [max] | 72 °C |
| Operation Ambient Temp [°C] [min] | -40 °C |
| Operation Ambient Temp [°F] [max] | 162 °F |
| Operation Ambient Temp [°F] [min] | -40 °F |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22.2 mm |
| Packing format | Multi pack |
| Part Number | DF0321 |
| PED category | III |
| Product accessories | No |
| Quantity per packing format | 15 pc |
| Rated cap. conditions [IMP] | Air speed=492 ft/min Ambient temp.=95 °F Delta t=21.6 °F Subcooling=9 °F |
| Rated cap. conditions [SI] | Air speed=2.5 m/s Ambient temp.=35 °C Delta t=12 °C Subcooling=5 °C |
| Rated capacity R410A [kW] | 60.3 kW |
| Rated capacity R410A [TR] | 17.15 TR |
| REACH Candidate List substances | No |
| Refrigerants | R410A R1234yf R134a R290 R32 R404A R407C R448A R449A R452A R452B R454B R513A R1234ze(E) R22 R444B R449B R454A R454C R455A R513B R514A R515A R515B R600a |
| Serviceable | No |
| Temperature range [°C] [max] | 121 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 250 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | D2000-C |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 021U0264 021U0264 ES_021U0265.pdf | 644 Kbytes |
|
