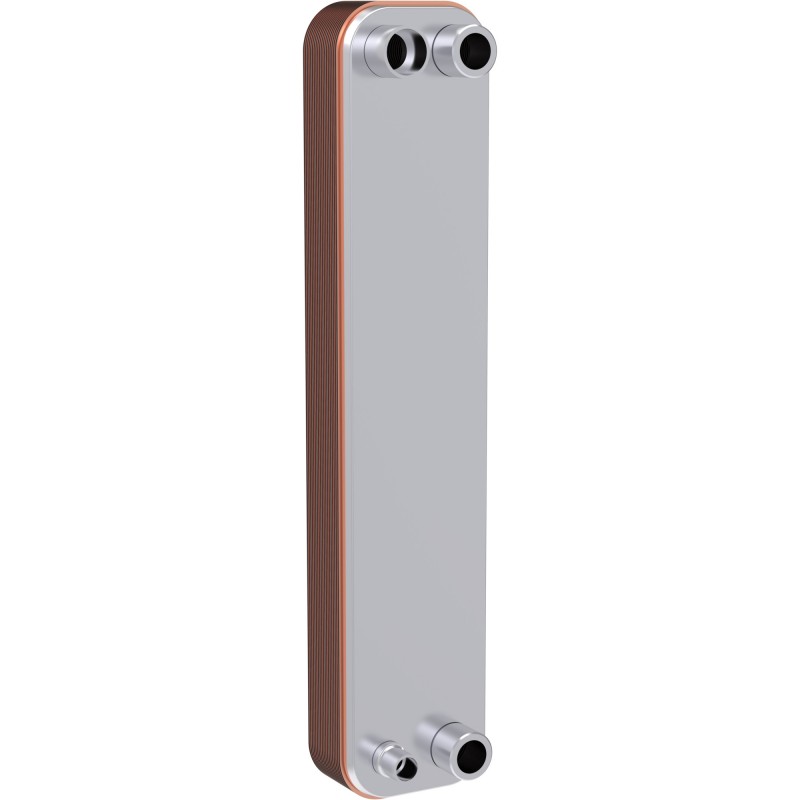

021H3292 DANFOSS REFRIGERATION Brazed plate heat exchanger, BPHE B3-052-50-3.0-H
021H3292
DANFOSS REFRIGERATION
Brazed plate heat exchanger, BPHE B3-052-50-3.0-H
Heat Exchanger B3-052-50-3.0-H
Brazed plate heat exchanger, BPHE B3-052, Number of plates: 50
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Max. Working Pressure [bar]: 30, Universal, Function: Multifunctional, Brazing material: Copper brazing
Product details
| Gross weight | 13.6 Kilogram |
| Net weight | 13.3 Kilogram |
| Volume | 16.8 Liter |
| EAN | 5702424269494 |
| Type | BPHE B3-052 |
| Product group | Heat exchangers |
| Product Name Description | Brazed plate heat exchanger |
| Gross weight | 13.6 Kilogram |
| Net weight | 13.3 Kilogram |
| Volume | 16.8 Liter |
| EAN | 5702424269494 |
| Type | BPHE B3-052 |
| Product group | Heat exchangers |
| Product Name Description | Brazed plate heat exchanger |
| Application | Universal |
| Approval | AS CRN EAC KRAIA PED RoHS UA UL |
| Brazing material | Copper brazing |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| Equipment | Stud |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Function | Multifunctional |
| Function note | Null |
| H1 conn. size | Null |
| H1 conn. type | G External thread connection |
| H2 conn. size | Null |
| H2 conn. type | Null |
| H3 conn. size | 1 1/8 in |
| H3 conn. type | Solder connection |
| H4 conn. size | Null |
| H4 conn. type | Solder connection |
| H5 conn. size | Null |
| H5 conn. type | Null |
| H6 conn. size | Null |
| H6 conn. type | Null |
| In scope of WEEE | No |
| Max working pressure [psi] | 435 psi |
| Max. Working Pressure [bar] | 30 bar |
| Model no. | 052 |
| Number of plates | 50 |
| Packing format | Single pack |
| PED category | II |
| Plate material no. | AISI 316L |
| Plate material no. | AISI 316L |
| Plate pattern | H |
| Q1 conn. size range | Null |
| Q1 conn. type | Null |
| Q2 conn. size range | G1 |
| Q2 conn. type | G External thread connection |
| Q3 conn. size range | Null |
| Q3 conn. type | Null |
| Q4 conn. size range | Null |
| Q4 conn. type | Null |
| Q5 conn. size range | Null |
| Q5 conn. type | Null |
| Q6 conn. size range | Null |
| Q6 conn. type | Null |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R407C R450A R455A R513A R1233zd(E) R1234yf R245fa R404A R444B R448A R449A R454C R507A R515B R1234ze R454A |
| Type designation | B3-052 |
| UL mark | Yes |
| Application | Universal |
| Approval | AS CRN EAC KRAIA PED RoHS UA UL |
| Brazing material | Copper brazing |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| Equipment | Stud |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Function | Multifunctional |
| Function note | Null |
| H1 conn. size | Null |
| H1 conn. type | G External thread connection |
| H2 conn. size | Null |
| H2 conn. type | Null |
| H3 conn. size | 1 1/8 in |
| H3 conn. type | Solder connection |
| H4 conn. size | Null |
| H4 conn. type | Solder connection |
| H5 conn. size | Null |
| H5 conn. type | Null |
| H6 conn. size | Null |
| H6 conn. type | Null |
| In scope of WEEE | No |
| Max working pressure [psi] | 435 psi |
| Max. Working Pressure [bar] | 30 bar |
| Model no. | 052 |
| Number of plates | 50 |
| Packing format | Single pack |
| PED category | II |
| Plate material no. | AISI 316L |
| Plate material no. | AISI 316L |
| Plate pattern | H |
| Q1 conn. size range | Null |
| Q1 conn. type | Null |
| Q2 conn. size range | G1 |
| Q2 conn. type | G External thread connection |
| Q3 conn. size range | Null |
| Q3 conn. type | Null |
| Q4 conn. size range | Null |
| Q4 conn. type | Null |
| Q5 conn. size range | Null |
| Q5 conn. type | Null |
| Q6 conn. size range | Null |
| Q6 conn. type | Null |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R407C R450A R455A R513A R1233zd(E) R1234yf R245fa R404A R444B R448A R449A R454C R507A R515B R1234ze R454A |
| Type designation | B3-052 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 021H3292 021H3292 EN_111B1030.pdf | 1 Mbytes |
|
