017-140266 DANFOSS REFRIGERATION Regulation range [bar] Pe: 0.1 1.1, Differential [bar]: 0.07 0.16, Contact ..
017-140266
DANFOSS REFRIGERATION
12
Regulation range [bar] Pe: 0.1 - 1.1, Differential [bar]: 0.07 - 0.16, Contact function: SPDT, Reset function: Auto, Connection Pressure type: G, Connection size Pressure: 3/8, Male/Female Pressure: Male, Housing protection degree: IP66, Max. working pressure [bar]: 7

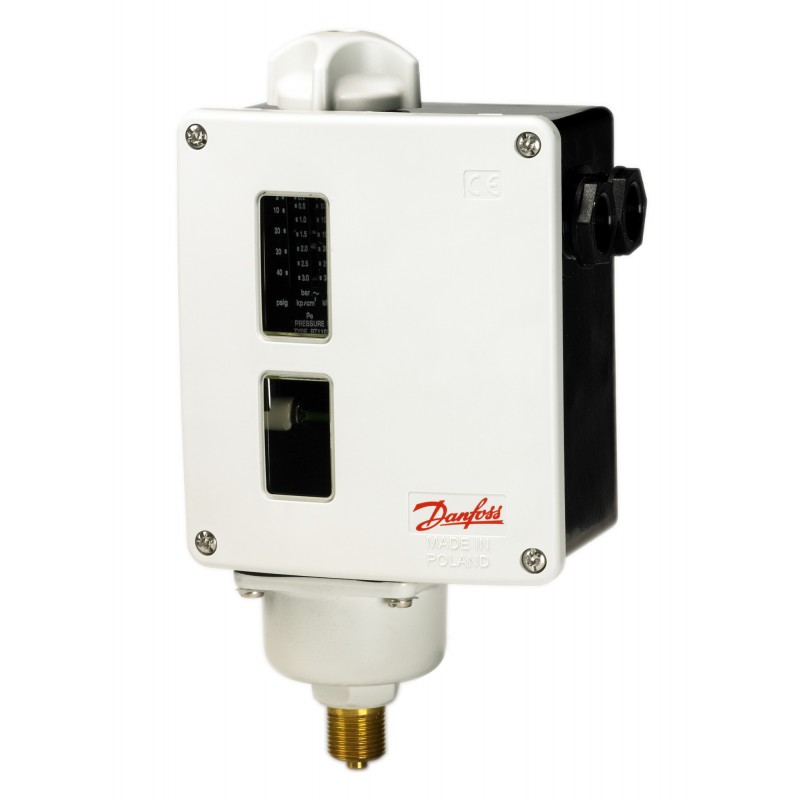

Pressure switch, RT112
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Regulation range [bar] Pe: 0.1 - 1.1, Differential [bar]: 0.07 - 0.16, Contact function: SPDT, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 7
Product details
| Gross weight | 0.984 Kilogram |
| Net weight | 0.874 Kilogram |
| Volume | 3.748 Liter |
| EAN | 5702423118854 |
| Type | RT112 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Gross weight | 0.984 Kilogram |
| Net weight | 0.874 Kilogram |
| Volume | 3.748 Liter |
| EAN | 5702423118854 |
| Type | RT112 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -50 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -58 °F |
| Approval | BV CCC CE DNV EAC GL LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V AC3=4 A, 400 V DC13=12 W, 220 V LR=28 A, 400 V |
| Contains batteries | No |
| Differential [bar] [max] | 0.16 bar |
| Differential [bar] [min] | 0.07 bar |
| Differential [psi] [max] | 2.3 psi |
| Differential [psi] [min] | 1 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 017-519166 |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 8 bar |
| Max. test pressure [psig] | 116 psig |
| Max. Working Pressure [bar] | 7 bar |
| Max. Working Pressure [psig] | 100 psig |
| Packing format | Industrial pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 1.1 bar |
| Regulation range [bar] Pe [min] | 0.1 bar |
| Regulation range [psig] Pe [max] | 16 psig |
| Regulation range [psig] Pe [min] | 1.5 psig |
| Reset function | Auto |
| SCIP dossier no. | f62fe422-beda-433a-a602-740419c82c06 |
| SCIP dossier product name | RT Presso_Diff.Presso |
| Serviceable | Contact systems |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -50 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -58 °F |
| Approval | BV CCC CE DNV EAC GL LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V AC3=4 A, 400 V DC13=12 W, 220 V LR=28 A, 400 V |
| Contains batteries | No |
| Differential [bar] [max] | 0.16 bar |
| Differential [bar] [min] | 0.07 bar |
| Differential [psi] [max] | 2.3 psi |
| Differential [psi] [min] | 1 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 017-519166 |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 8 bar |
| Max. test pressure [psig] | 116 psig |
| Max. Working Pressure [bar] | 7 bar |
| Max. Working Pressure [psig] | 100 psig |
| Packing format | Industrial pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 1.1 bar |
| Regulation range [bar] Pe [min] | 0.1 bar |
| Regulation range [psig] Pe [max] | 16 psig |
| Regulation range [psig] Pe [min] | 1.5 psig |
| Reset function | Auto |
| SCIP dossier no. | f62fe422-beda-433a-a602-740419c82c06 |
| SCIP dossier product name | RT Presso_Diff.Presso |
| Serviceable | Contact systems |
