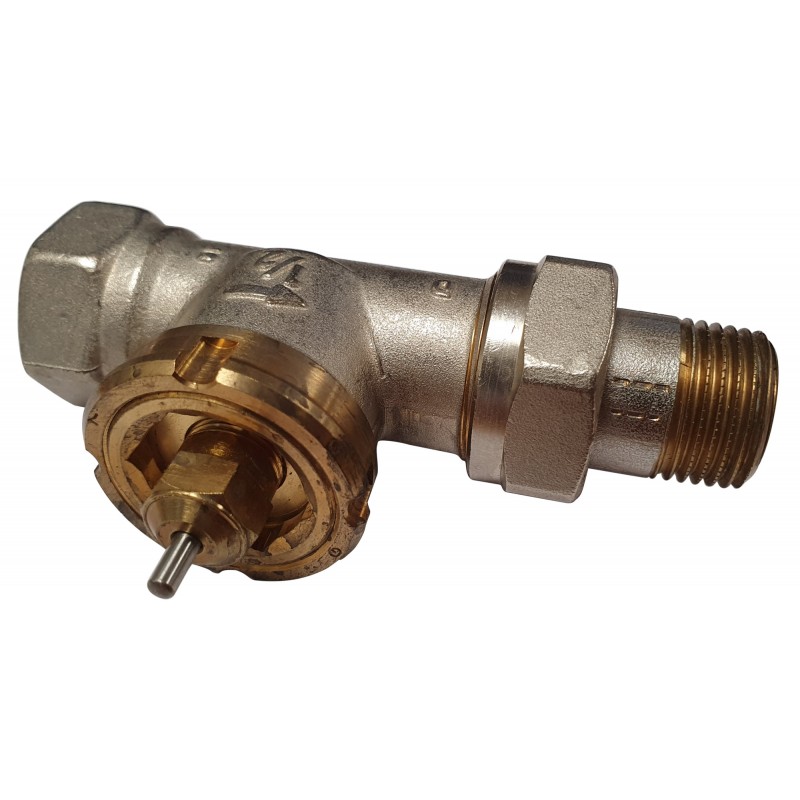

013U0017 DANFOSS REFRIGERATION RAV, PN 10, DN 15, 1.5 m³/h, 0.8 bar, Internal thread
013U0017
DANFOSS REFRIGERATION
RAV, PN 10, DN 15, 1.5 m³/h, 0.8 bar, Internal thread
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲RAV PN10 15/1,5 2-way/8 int.thr Straight
Product details
| Gross weight | 0.338 Kilogram |
| Net weight | 0.332 Kilogram |
| Volume | 0.33 Liter |
| EAN | 5702420005577 |
| Type | RAV |
| Product group | Motorized control valves |
| Gross weight | 0.338 Kilogram |
| Net weight | 0.332 Kilogram |
| Volume | 0.33 Liter |
| EAN | 5702420005577 |
| Type | RAV |
| Product group | Motorized control valves |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| China RoHS compliance | Out of scope |
| Closing differential pressure [bar] [Max] | 0.8 bar |
| Connection size | Inlet Rp 1/2 Outlet R 1/2 Inlet Rp 1/2, Outlet R 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | RAV PN10 15/1,5 2-way/8 int.thr Straight |
| Diameter [mm] | 15 mm |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow characteristic | Linear |
| Function | Control valve |
| Kvs values [m³/h] | 1.5 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 6 |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 392f2953-a4c2-48a0-a683-992b87132242 |
| Spindle position | Normally open |
| Stroke [mm] | 1.1 mm |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | NBR rubber |
| Valve size | DN 15 |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| China RoHS compliance | Out of scope |
| Closing differential pressure [bar] [Max] | 0.8 bar |
| Connection size | Inlet Rp 1/2 Outlet R 1/2 Inlet Rp 1/2, Outlet R 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | RAV PN10 15/1,5 2-way/8 int.thr Straight |
| Diameter [mm] | 15 mm |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow characteristic | Linear |
| Function | Control valve |
| Kvs values [m³/h] | 1.5 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 6 |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 392f2953-a4c2-48a0-a683-992b87132242 |
| Spindle position | Normally open |
| Stroke [mm] | 1.1 mm |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | NBR rubber |
| Valve size | DN 15 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 013U0017 013U0017 ES_013U0012.pdf | 969 Kbytes |
|
