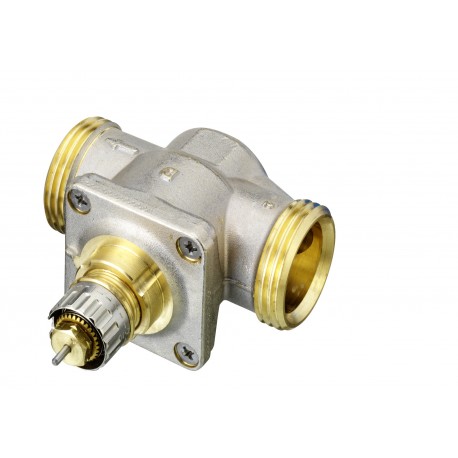

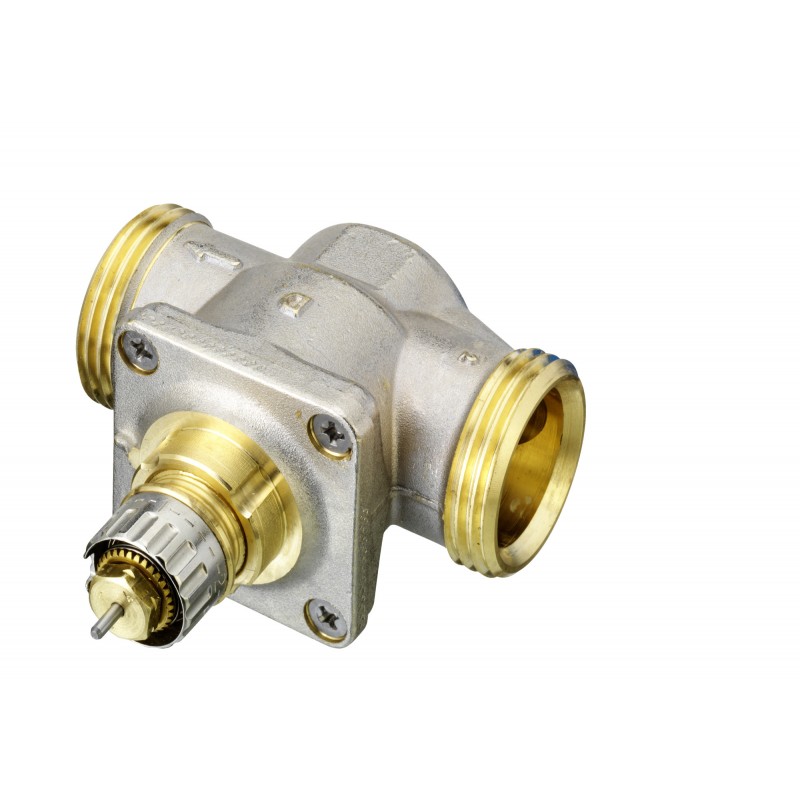

013G3096 DANFOSS REFRIGERATION RA-C, DN 20, External Thread
013G3096
DANFOSS REFRIGERATION
RA-C, DN 20, External Thread
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲RA-C DN 20, External thread, control valve
Product details
| Gross weight | 0.44 Kilogram |
| Net weight | 0.419 Kilogram |
| Volume | 0.385 Liter |
| EAN | 5702420036403 |
| Type | RA-C |
| Product group | Other valves |
| Gross weight | 0.44 Kilogram |
| Net weight | 0.419 Kilogram |
| Volume | 0.385 Liter |
| EAN | 5702420036403 |
| Type | RA-C |
| Product group | Other valves |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | RA-C DN 20, External thread, control valve |
| Differential pressure range [bar] [Max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 3.3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7e8ea5fa-8f56-4f00-afd3-6709b5570d1d |
| SCIP dossier product name | RA-C DN20, Cooling valve |
| Valve body material | DZR brass |
| Valve size | DN 20 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | RA-C DN 20, External thread, control valve |
| Differential pressure range [bar] [Max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 3.3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7e8ea5fa-8f56-4f00-afd3-6709b5570d1d |
| SCIP dossier product name | RA-C DN20, Cooling valve |
| Valve body material | DZR brass |
| Valve size | DN 20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 013G3096 013G3096 EN_013G3094.pdf | 197 Kbytes |
|
