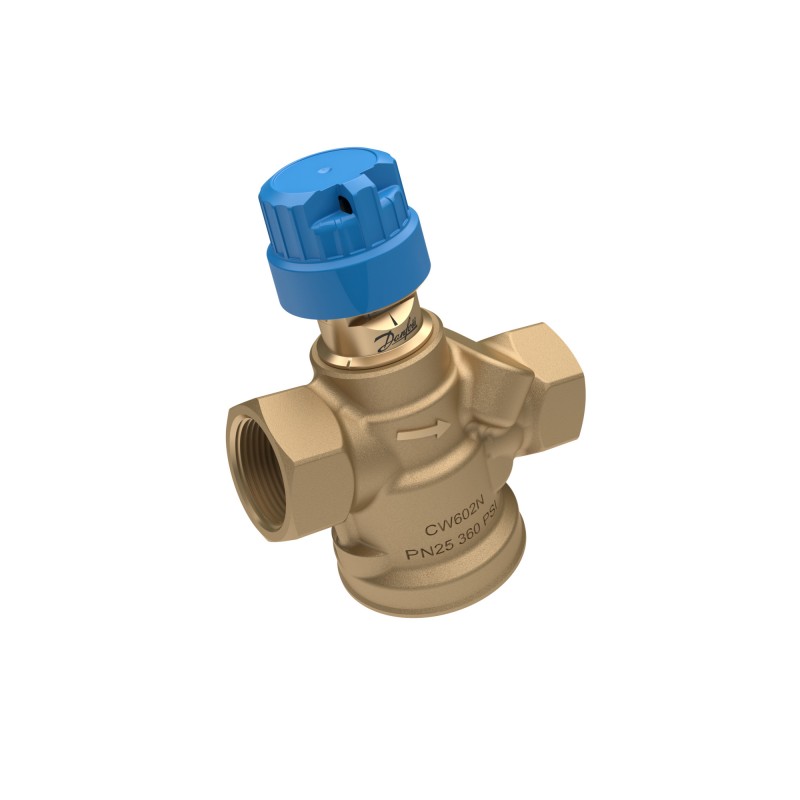

003Z8320 DANFOSS REFRIGERATION AB-QM, DN 15 LF Low flow, Test plugs: Without test plugs, Internal thread ISO..
003Z8320
DANFOSS REFRIGERATION
AB-QM, DN 15 LF; Low flow, Test plugs: Without test plugs, Internal thread ISO 7/1; Rp ½
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB-QM DN 15 Low flow, without test plugs, Internal thread, PN25, pressure independent balancing and control valve
Product details
| Gross weight | 0.575 Kilogram |
| Net weight | 0.517 Kilogram |
| Volume | 1 Liter |
| EAN | 5714279039924 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 0.575 Kilogram |
| Net weight | 0.517 Kilogram |
| Volume | 1 Liter |
| EAN | 5714279039924 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread ISO 7/1 Rp ½ |
| Contains batteries | No |
| Description | AB-QM DN 15 Low flow, without test plugs, Internal thread, PN25, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 16 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Flow nominal [m³/h] | 0.2 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class IV |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply / return pipe |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b2a642ef-a80a-42a1-a9af-6eb95466dd1d |
| SCIP dossier product name | AB-QM 10-32 - 4g |
| Setting range [%] [max] | 100 % |
| Setting range [%] [min] | 10 % |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | Low flow DN 15 LF |
| Version | AB-QM 4.0 |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread ISO 7/1 Rp ½ |
| Contains batteries | No |
| Description | AB-QM DN 15 Low flow, without test plugs, Internal thread, PN25, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 16 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Flow nominal [m³/h] | 0.2 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class IV |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply / return pipe |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b2a642ef-a80a-42a1-a9af-6eb95466dd1d |
| SCIP dossier product name | AB-QM 10-32 - 4g |
| Setting range [%] [max] | 100 % |
| Setting range [%] [min] | 10 % |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | Low flow DN 15 LF |
| Version | AB-QM 4.0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z8320 003Z8320 EN_003Z8307.pdf | 5 Mbytes |
|
