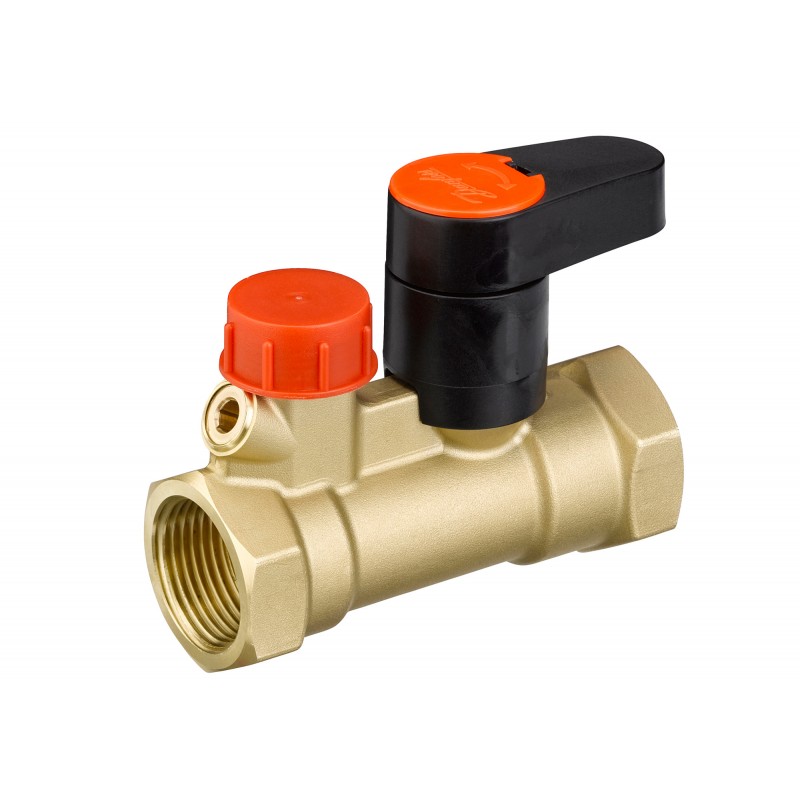

003Z4013 DANFOSS REFRIGERATION LENO MSV-S, DN 25, Internal thread
003Z4013
DANFOSS REFRIGERATION
LENO MSV-S, DN 25, Internal thread
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲MSV-S DN 25, Internal thread, partner valve
Product details
| Gross weight | 0.708 Kilogram |
| Net weight | 0.696 Kilogram |
| Volume | 0.669 Liter |
| EAN | 5702420092010 |
| Type | LENO MSV-S |
| Product group | Manual balancing |
| Gross weight | 0.708 Kilogram |
| Net weight | 0.696 Kilogram |
| Volume | 0.669 Liter |
| EAN | 5702420092010 |
| Type | LENO MSV-S |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Connections | Rp 1 |
| Contains batteries | No |
| Description | MSV-S DN 25, Internal thread, partner valve |
| Drain function | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 9.5 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 257a84e0-d23a-4a7d-ac65-ff030e7f52f0 |
| SCIP dossier product name | MSV-S DN15-DN50 |
| Setting scale | No |
| Shut-off function | Yes |
| Test plugs | Without test plugs |
| Valve body material | DZR brass |
| Valve size | DN 25 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Connections | Rp 1 |
| Contains batteries | No |
| Description | MSV-S DN 25, Internal thread, partner valve |
| Drain function | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 9.5 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 257a84e0-d23a-4a7d-ac65-ff030e7f52f0 |
| SCIP dossier product name | MSV-S DN15-DN50 |
| Setting scale | No |
| Shut-off function | Yes |
| Test plugs | Without test plugs |
| Valve body material | DZR brass |
| Valve size | DN 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z4013 003Z4013 EN_003Z4013.pdf | 1020 Kbytes |
|
