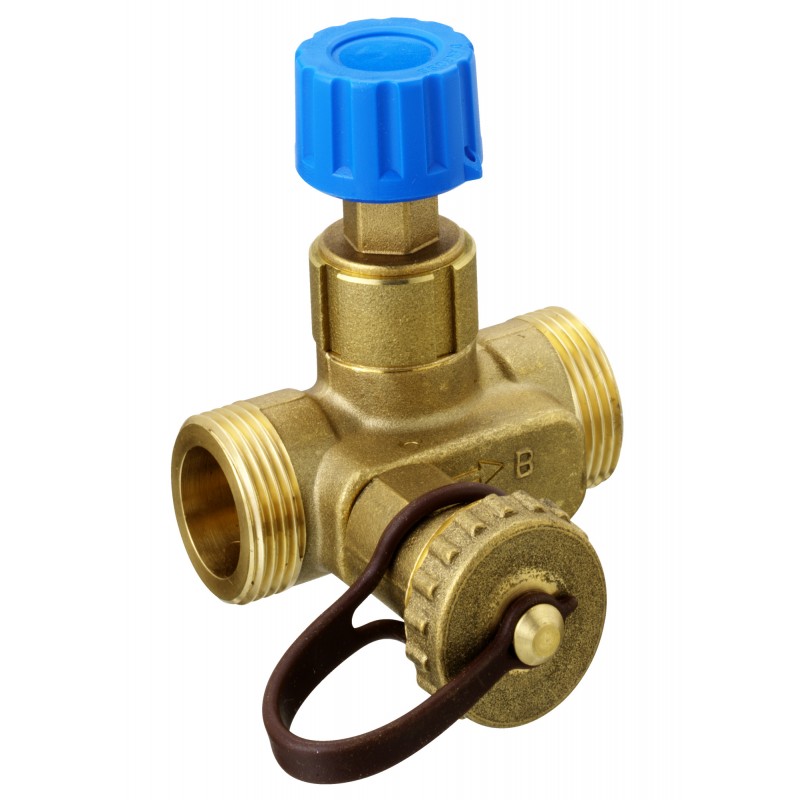

003Z2128 DANFOSS REFRIGERATION USV-M, DN 25, External Thread
003Z2128
DANFOSS REFRIGERATION
USV-M, DN 25, External Thread
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲USV-M DN 25, external thread, upgradable balancing valve
Product details
| Gross weight | 0.905 Kilogram |
| Net weight | 0.905 Kilogram |
| Volume | 1.069 Liter |
| EAN | 5702420083537 |
| Type | USV-M |
| Product group | Manual balancing |
| Gross weight | 0.905 Kilogram |
| Net weight | 0.905 Kilogram |
| Volume | 1.069 Liter |
| EAN | 5702420083537 |
| Type | USV-M |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | USV-M DN 25, external thread, upgradable balancing valve |
| Differential pressure over the valve [kPa] [Max] | 80 KPa |
| Drain function | Yes |
| EU RoHS compliance | Out of scope |
| Flow limitation | Yes |
| Kvs values [m³/h] | 4 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting scale | No |
| Shut-off function | Yes |
| Upgradeability | Yes |
| Valve body material | Brass |
| Valve size | DN 25 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | USV-M DN 25, external thread, upgradable balancing valve |
| Differential pressure over the valve [kPa] [Max] | 80 KPa |
| Drain function | Yes |
| EU RoHS compliance | Out of scope |
| Flow limitation | Yes |
| Kvs values [m³/h] | 4 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting scale | No |
| Shut-off function | Yes |
| Upgradeability | Yes |
| Valve body material | Brass |
| Valve size | DN 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z2128 003Z2128 ES_003Z2130.pdf | 996 Kbytes |
|
