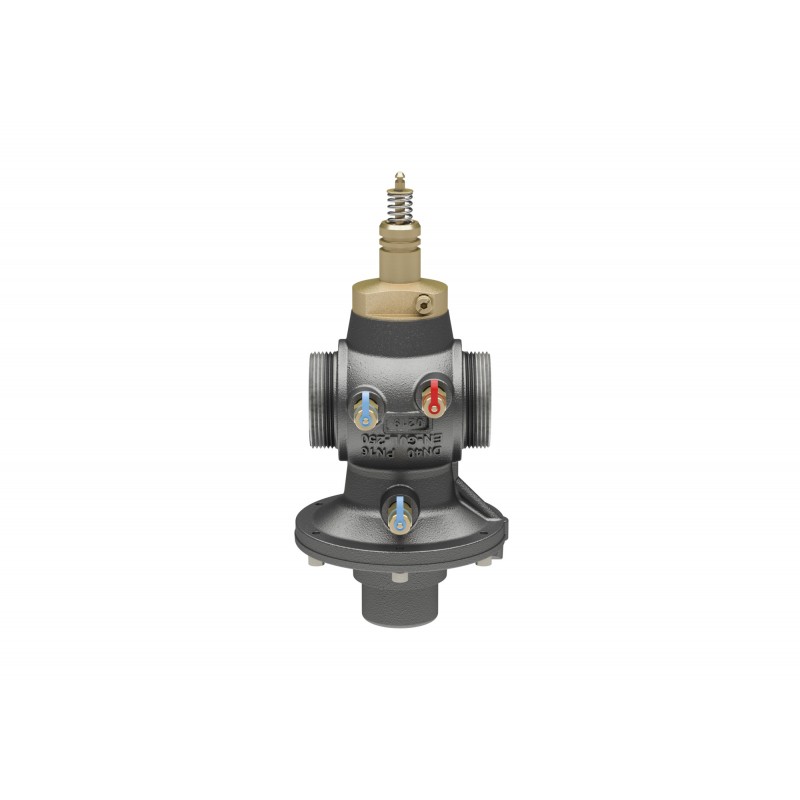

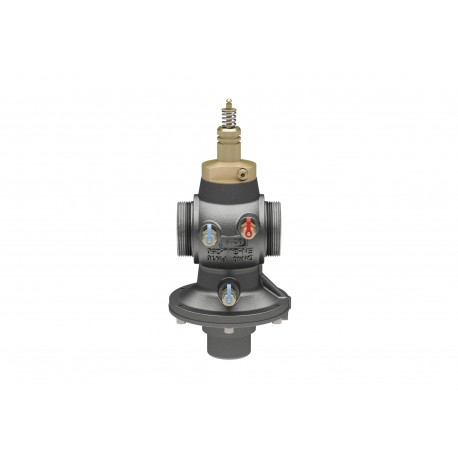

003Z1771 DANFOSS REFRIGERATION AB-QM, DN 50, Test plugs: Yes, External Thread
003Z1771
DANFOSS REFRIGERATION
AB-QM, DN 50, Test plugs: Yes, External Thread
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB-QM NovoCon DN 50, with three test plugs, pressure independent balancing and control valve, to be used with NovoCon M
Product details
| Gross weight | 7.906 Kilogram |
| Net weight | 7.866 Kilogram |
| Volume | 18.913 Liter |
| EAN | 5714279003833 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 7.906 Kilogram |
| Net weight | 7.866 Kilogram |
| Volume | 18.913 Liter |
| EAN | 5714279003833 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-QM NovoCon DN 50, with three test plugs, pressure independent balancing and control valve, to be used with NovoCon M |
| Differential pressure [kPa] [Max] | 600 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 12.5 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class III |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 895c13d2-aa37-49e5-a525-eb197599d612 |
| SCIP dossier product name | AB-QM DN40 DN50 |
| Setting range [%] [max] | 100 % |
| Shut-off function | Yes |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 20 mm |
| Test plugs | Yes |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve size | DN 50 |
| Version | AB-QM |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-QM NovoCon DN 50, with three test plugs, pressure independent balancing and control valve, to be used with NovoCon M |
| Differential pressure [kPa] [Max] | 600 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 12.5 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class III |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 895c13d2-aa37-49e5-a525-eb197599d612 |
| SCIP dossier product name | AB-QM DN40 DN50 |
| Setting range [%] [max] | 100 % |
| Shut-off function | Yes |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 20 mm |
| Test plugs | Yes |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve size | DN 50 |
| Version | AB-QM |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z1771 003Z1771 EN_003Z8307.pdf | 5 Mbytes |
|
