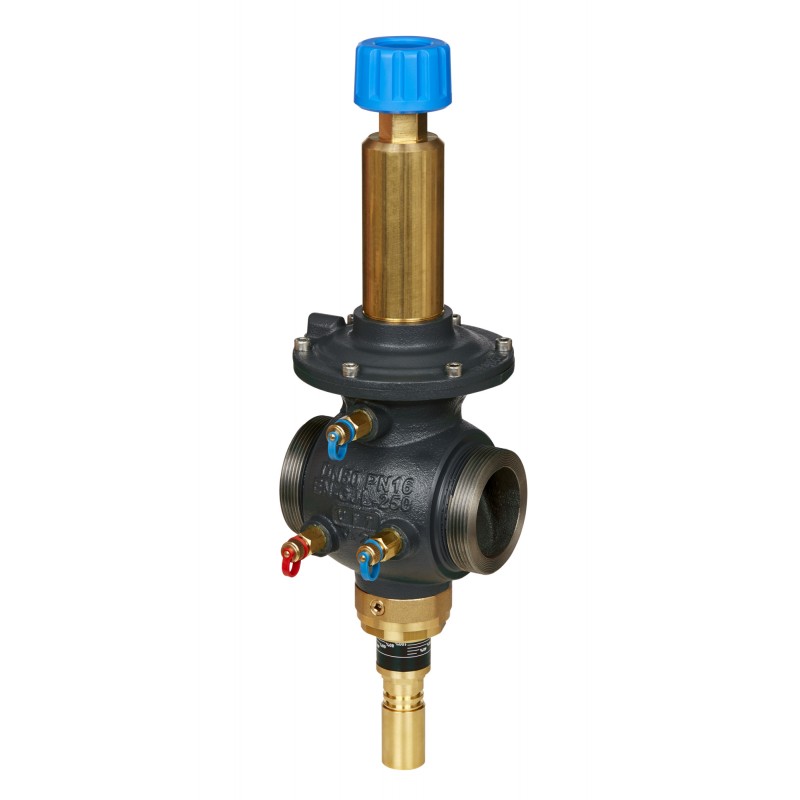

003Z1435 DANFOSS REFRIGERATION AB-PM, DN 40, Standard, G 2A Flange (EN 1092-2)
003Z1435
DANFOSS REFRIGERATION
AB-PM, DN 40, Standard, G 2A; Flange (EN 1092-2)
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB-PM DN 40, combined automatic balancing valve
Product details
| Gross weight | 7.905 Kilogram |
| Net weight | 6.834 Kilogram |
| Volume | 18.073 Liter |
| EAN | 5710104095493 |
| Type | AB-PM |
| Product group | Automatic balancing |
| Gross weight | 7.905 Kilogram |
| Net weight | 6.834 Kilogram |
| Volume | 18.073 Liter |
| EAN | 5710104095493 |
| Type | AB-PM |
| Product group | Automatic balancing |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | Flange (EN 1092-2) G 2A |
| Contains batteries | No |
| CV stroke | 10 |
| Description | AB-PM DN 40, combined automatic balancing valve |
| Differential pressure [kPa] [Max] | 4000 KPa |
| Differential pressure [kPa] [Min] | 42 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow max at Δp [m3/h] | at Δp=25kPa 5.0 |
| Impulse tube length [m] | 2.5 m |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| Pressure version | Standard |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve size | DN 40 |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | Flange (EN 1092-2) G 2A |
| Contains batteries | No |
| CV stroke | 10 |
| Description | AB-PM DN 40, combined automatic balancing valve |
| Differential pressure [kPa] [Max] | 4000 KPa |
| Differential pressure [kPa] [Min] | 42 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow max at Δp [m3/h] | at Δp=25kPa 5.0 |
| Impulse tube length [m] | 2.5 m |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| Pressure version | Standard |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve size | DN 40 |
