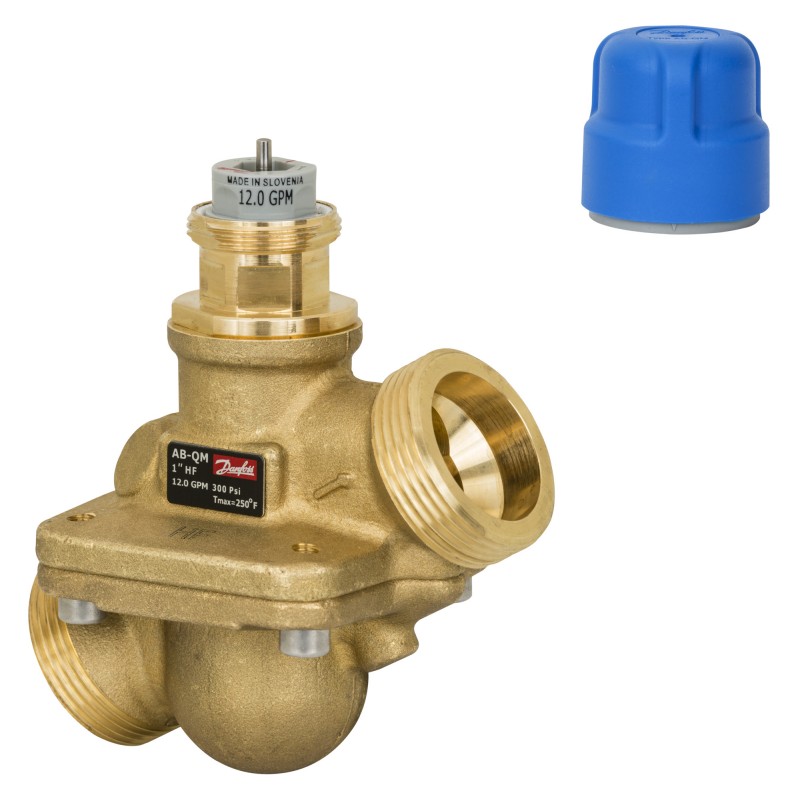

003Z1334 DANFOSS REFRIGERATION AB-QM ANSI, High flow 1", Without test plugs, External thread NPT
003Z1334
DANFOSS REFRIGERATION
AB-QM ANSI, High flow; 1", Without test plugs, External thread NPT
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB-QM 1", High flow, without test plugs, pressure independent balancing and control valve
Product details
| Gross weight | 1.312 Kilogram |
| Net weight | 1.308 Kilogram |
| Volume | 2.383 Liter |
| EAN | 5710104061559 |
| Type | AB-QM ANSI |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 1.312 Kilogram |
| Net weight | 1.308 Kilogram |
| Volume | 2.383 Liter |
| EAN | 5710104061559 |
| Type | AB-QM ANSI |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External thread NPT |
| Contains batteries | No |
| Description | AB-QM 1", High flow, without test plugs, pressure independent balancing and control valve |
| Differential pressure range [psi] [Max] | 60 psi |
| Differential pressure range [psi] [Min] | 5 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow [gpm] [Max] | 12 gal/min |
| Flow nominal [m³/h] | 0 m³/h |
| Media temperature [°F] [Max] | 250 °F |
| Media temperature [°F] [Min] | 15 °F |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c4a5b234-4b10-4833-a38a-9a6d857dd321 |
| SCIP dossier product name | AB-QM 1" HF without test plugs |
| Static pressure [psi] [Max] | 300 psi |
| Stroke [mm] | 4.5 mm |
| Test plugs | Without test plugs |
| Valve body material | CW 617N |
| Valve size | 1" High flow |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External thread NPT |
| Contains batteries | No |
| Description | AB-QM 1", High flow, without test plugs, pressure independent balancing and control valve |
| Differential pressure range [psi] [Max] | 60 psi |
| Differential pressure range [psi] [Min] | 5 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow [gpm] [Max] | 12 gal/min |
| Flow nominal [m³/h] | 0 m³/h |
| Media temperature [°F] [Max] | 250 °F |
| Media temperature [°F] [Min] | 15 °F |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c4a5b234-4b10-4833-a38a-9a6d857dd321 |
| SCIP dossier product name | AB-QM 1" HF without test plugs |
| Static pressure [psi] [Max] | 300 psi |
| Stroke [mm] | 4.5 mm |
| Test plugs | Without test plugs |
| Valve body material | CW 617N |
| Valve size | 1" High flow |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z1334 003Z1334 EN_003Z1334.pdf | 3 Mbytes |
|
