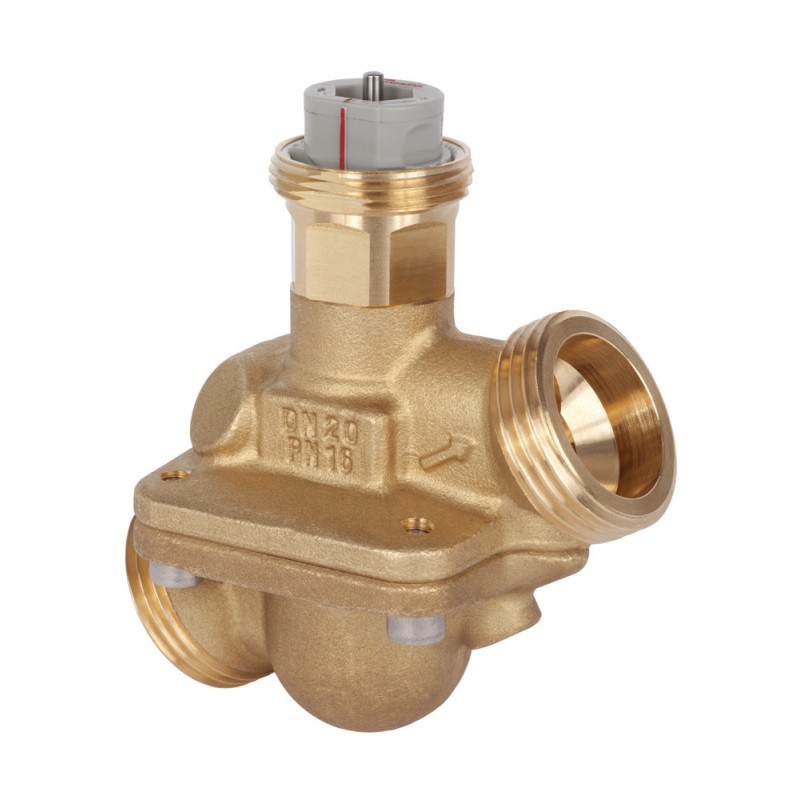

003Z1223 DANFOSS REFRIGERATION AB-QM, DN 20 HF High flow, Test plugs: Without test plugs, G 1A External thre..
003Z1223
DANFOSS REFRIGERATION
AB-QM, DN 20 HF; High flow, Test plugs: Without test plugs, G 1A; External thread ISO 228/1
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB-QM DN20 High flow, without test plugs, pressure independent balancing and control valve
Product details
| Gross weight | 0.726 Kilogram |
| Net weight | 0.724 Kilogram |
| Volume | 1.316 Liter |
| EAN | 5710104092393 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 0.726 Kilogram |
| Net weight | 0.724 Kilogram |
| Volume | 1.316 Liter |
| EAN | 5710104092393 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External thread ISO 228/1 G 1A |
| Contains batteries | No |
| Description | AB-QM DN20 High flow, without test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 35 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Flow nominal [m³/h] | 1.7 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class IV |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Supply / return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d990cf9c-f265-4635-9771-e05a8f517f6d |
| SCIP dossier product name | AB-QM DN20 HF PN16 |
| Setting range [%] [max] | 100 % |
| Setting range [%] [min] | 20 % |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve size | DN 20 HF High flow |
| Version | AB-QM 3.0 |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External thread ISO 228/1 G 1A |
| Contains batteries | No |
| Description | AB-QM DN20 High flow, without test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 35 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Flow nominal [m³/h] | 1.7 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class IV |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Supply / return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d990cf9c-f265-4635-9771-e05a8f517f6d |
| SCIP dossier product name | AB-QM DN20 HF PN16 |
| Setting range [%] [max] | 100 % |
| Setting range [%] [min] | 20 % |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve size | DN 20 HF High flow |
| Version | AB-QM 3.0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z1223 003Z1223 EN_003Z8307.pdf | 5 Mbytes |
|
