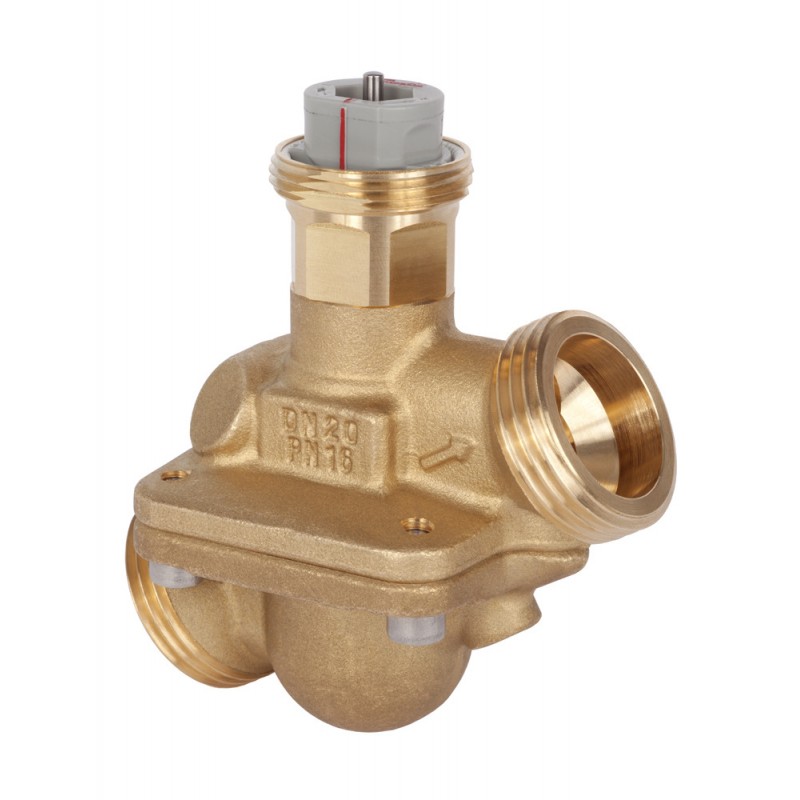

003Z1222 DANFOSS REFRIGERATION AB-QM, High flow DN 15 HF, Test plugs: Without test plugs, G ¾A External thre..
003Z1222
DANFOSS REFRIGERATION
AB-QM, High flow; DN 15 HF, Test plugs: Without test plugs, G ¾A; External thread ISO 228/1
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB-QM DN15, High flow, without test plugs, pressure independent balancing and control valve
Product details
| Gross weight | 0.49 Kilogram |
| Net weight | 0.46 Kilogram |
| Volume | 0.902 Liter |
| EAN | 5710104092065 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 0.49 Kilogram |
| Net weight | 0.46 Kilogram |
| Volume | 0.902 Liter |
| EAN | 5710104092065 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External thread ISO 228/1 G ¾A |
| Contains batteries | No |
| Description | AB-QM DN15, High flow, without test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 35 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Flow nominal [m³/h] | 1.135 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class IV |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Supply / return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b2775c18-5d86-443c-ae8a-62cd3cf7389c |
| SCIP dossier product name | AB-QM DN15 HF PN16 |
| Setting range [%] [max] | 100 % |
| Setting range [%] [min] | 20 % |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve size | DN 15 HF High flow |
| Version | AB-QM 3.0 |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External thread ISO 228/1 G ¾A |
| Contains batteries | No |
| Description | AB-QM DN15, High flow, without test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 35 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Flow nominal [m³/h] | 1.135 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class IV |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Supply / return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b2775c18-5d86-443c-ae8a-62cd3cf7389c |
| SCIP dossier product name | AB-QM DN15 HF PN16 |
| Setting range [%] [max] | 100 % |
| Setting range [%] [min] | 20 % |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve size | DN 15 HF High flow |
| Version | AB-QM 3.0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z1222 003Z1222 EN_003Z8307.pdf | 5 Mbytes |
|
