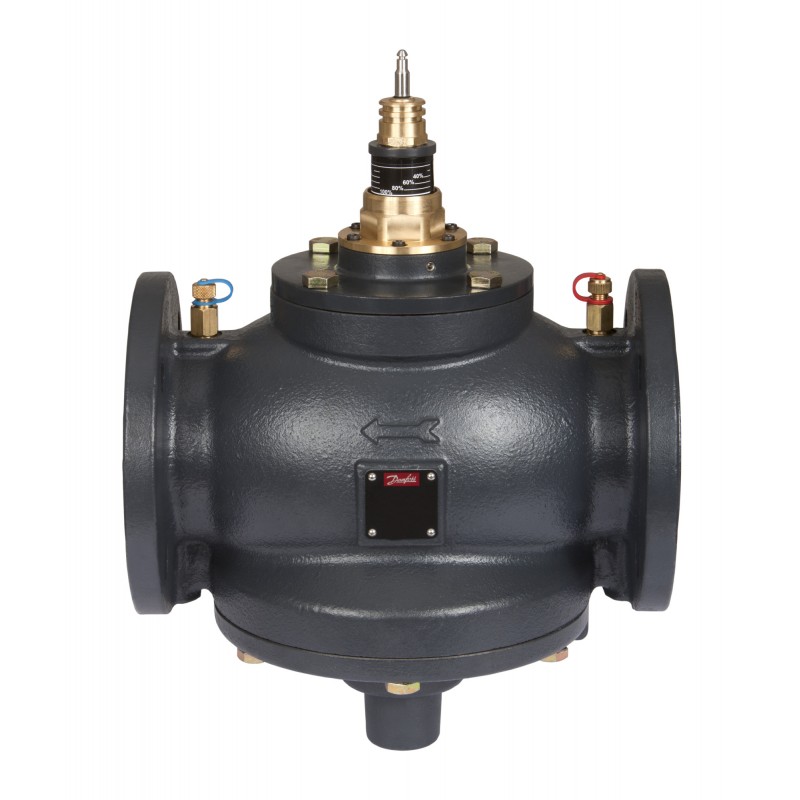

003Z0784 DANFOSS REFRIGERATION AB-QM ANSI, 3", With test plugs, ANSI Flange
003Z0784
DANFOSS REFRIGERATION
AB-QM ANSI, 3", With test plugs, ANSI Flange
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB-QM 3", pressure independent balancing and control valve
Product details
| Gross weight | 49.1 Kilogram |
| Net weight | 44 Kilogram |
| Volume | 98.77 Liter |
| EAN | 5710104034218 |
| Type | AB-QM ANSI |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 49.1 Kilogram |
| Net weight | 44 Kilogram |
| Volume | 98.77 Liter |
| EAN | 5710104034218 |
| Type | AB-QM ANSI |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | ANSI Flange |
| Contains batteries | No |
| Description | AB-QM 3", pressure independent balancing and control valve |
| Differential pressure range [psi] [Max] | 60 psi |
| Differential pressure range [psi] [Min] | 4 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow [gpm] [Max] | 120 gal/min |
| Flow nominal [m³/h] | 0 m³/h |
| Media temperature [°F] [Max] | 250 °F |
| Media temperature [°F] [Min] | 15 °F |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Static pressure [psi] [Max] | 300 psi |
| Stroke [mm] | 15 mm |
| Test plugs | With test plugs |
| Valve body material | Grey cast iron (A48 No. 35A) |
| Valve size | 3" |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | ANSI Flange |
| Contains batteries | No |
| Description | AB-QM 3", pressure independent balancing and control valve |
| Differential pressure range [psi] [Max] | 60 psi |
| Differential pressure range [psi] [Min] | 4 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow [gpm] [Max] | 120 gal/min |
| Flow nominal [m³/h] | 0 m³/h |
| Media temperature [°F] [Max] | 250 °F |
| Media temperature [°F] [Min] | 15 °F |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Static pressure [psi] [Max] | 300 psi |
| Stroke [mm] | 15 mm |
| Test plugs | With test plugs |
| Valve body material | Grey cast iron (A48 No. 35A) |
| Valve size | 3" |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z0784 003Z0784 EN_003Z1334.pdf | 3 Mbytes |
|
