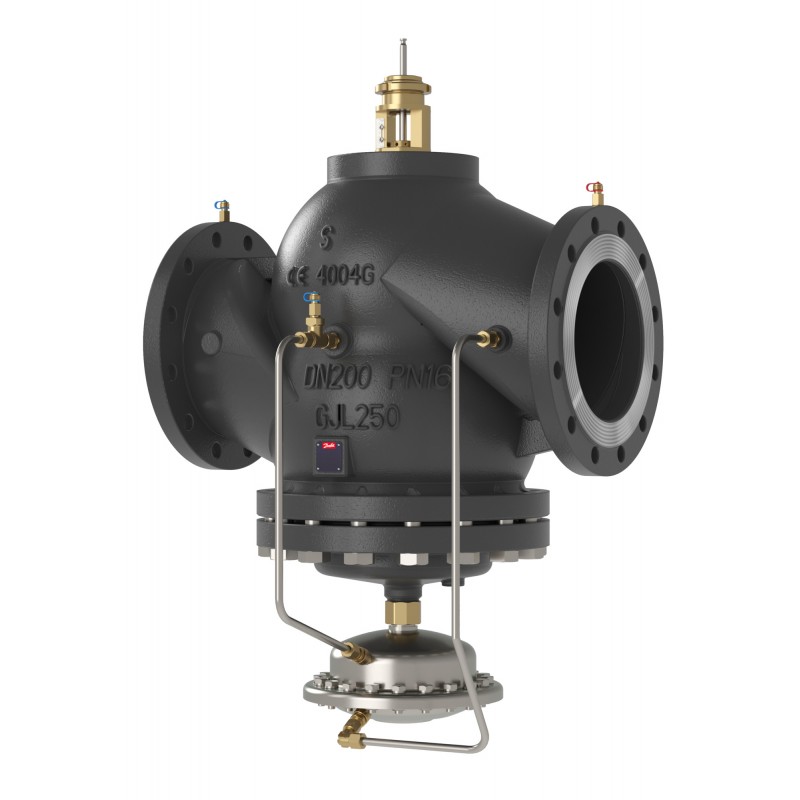

003Z0708 DANFOSS REFRIGERATION AB-QM, DN 250, Test plugs: With test plugs, Flange
003Z0708
DANFOSS REFRIGERATION
AB-QM, DN 250, Test plugs: With test plugs, Flange
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB-QM DN 250, with three test plugs, pressure independent balancing and control valve
Product details
| Gross weight | 378 Kilogram |
| Net weight | 378 Kilogram |
| Volume | 844.8 Liter |
| EAN | 5710104012919 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 378 Kilogram |
| Net weight | 378 Kilogram |
| Volume | 844.8 Liter |
| EAN | 5710104012919 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | AB-QM DN 250, with three test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 300 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | dfb47b39-658b-43a4-9ef8-7dfaa7d62cae |
| SCIP dossier product name | AB-QM DN250 |
| Stroke [mm] | 30 mm |
| Test plugs | With test plugs |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 250 |
| Version | AB-QM |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | AB-QM DN 250, with three test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 300 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | dfb47b39-658b-43a4-9ef8-7dfaa7d62cae |
| SCIP dossier product name | AB-QM DN250 |
| Stroke [mm] | 30 mm |
| Test plugs | With test plugs |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 250 |
| Version | AB-QM |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003Z0708 003Z0708 EN_003Z8307.pdf | 5 Mbytes |
|
