View larger

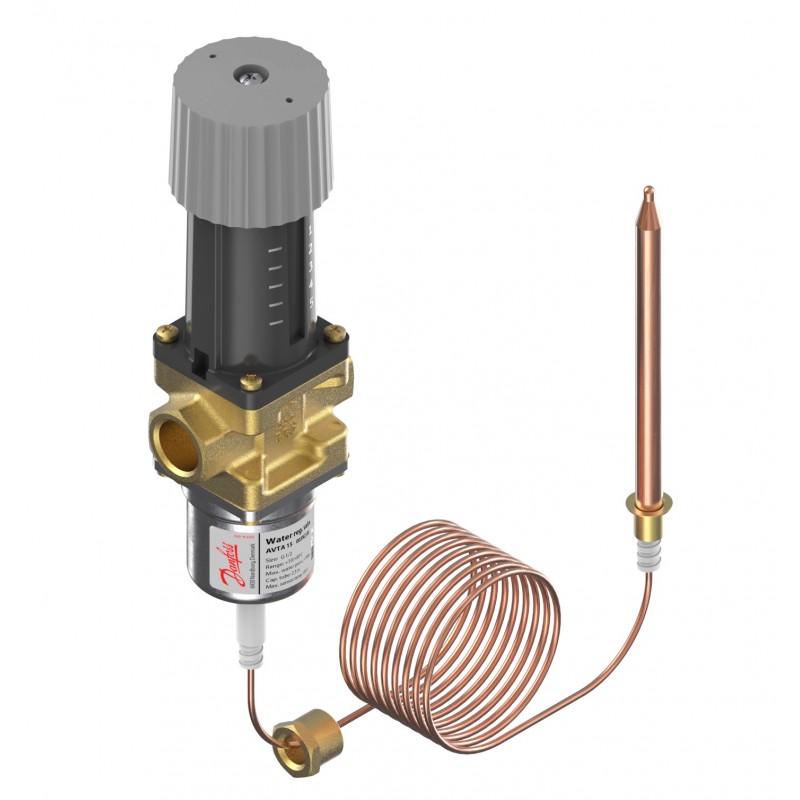

003N2153 DANFOSS REFRIGERATION Thermo. operated water valve, AVTA 15, G, 1/2
003N2153
DANFOSS REFRIGERATION
Thermo. operated water valve, AVTA 15, G, 1/2
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Body material: Stainless steel, Opening configuration: Opens on rising sensor temp., Charge type: Adsorption
Product details
| Gross weight | 1.555 Kilogram |
| Net weight | 1.245 Kilogram |
| Volume | 4.082 Cubic decimeter |
| EAN | 5715162695067 |
| Type | AVTA 15 |
| Product group | Water regulating valves |
| Product Name Description | Thermo. operated water valve |
| Gross weight | 1.555 Kilogram |
| Net weight | 1.245 Kilogram |
| Volume | 4.082 Cubic decimeter |
| EAN | 5715162695067 |
| Type | AVTA 15 |
| Product group | Water regulating valves |
| Product Name Description | Thermo. operated water valve |
| Approval | EAC LLC CDC TYSK PED RoHS RoHS China |
| Armoring | Yes |
| Body material | Stainless steel |
| Cap. tube length fraction [in] | 90 9/16 in |
| Capillary tube gland Int/Ext | Internal |
| Capillary tube gland size [in] | 1/2 |
| Capillary tube gland standard | ISO 228-1 |
| Capillary tube gland type | G |
| Capillary tube length [mm] | 2300 mm |
| Charge type | Adsorption |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.2 7.3 |
| Connection Internal/External | Internal |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 2.2 gal/min |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(b) 6(c) |
| Flow direction indicator | Embossed 1-way arrow |
| Further information | Setting scale turned 180° |
| Kv value [m³/h] | 1.9 m³/h |
| Max. pressure on sensor [bar] | 25 bar |
| Max. pressure on sensor [psig] | 362.6 psig |
| Max. sensor temperature [°C] | 130 °C |
| Max. sensor temperature [°F] | 266 °F |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362.6 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Media | Aggressive media |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -13 °F |
| Opening configuration | Opens on rising sensor temp. |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 3/5 in |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a698bb81-6c39-4d14-a29f-0fc686728af9 |
| SCIP dossier product name | AVTA FJVA |
| Sensor size (Ø x L) [in] | 3/8 x 5 29/32 in |
| Sensor size (Ø x L) [mm] | 9.5 x 150 mm |
| Serviceable | Water valve spare parts |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | 10 °C |
| Temperature range [°F] [max] | 176 °F |
| Temperature range [°F] [min] | 50 °F |
| Approval | EAC LLC CDC TYSK PED RoHS RoHS China |
| Armoring | Yes |
| Body material | Stainless steel |
| Cap. tube length fraction [in] | 90 9/16 in |
| Capillary tube gland Int/Ext | Internal |
| Capillary tube gland size [in] | 1/2 |
| Capillary tube gland standard | ISO 228-1 |
| Capillary tube gland type | G |
| Capillary tube length [mm] | 2300 mm |
| Charge type | Adsorption |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.2 7.3 |
| Connection Internal/External | Internal |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 2.2 gal/min |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(b) 6(c) |
| Flow direction indicator | Embossed 1-way arrow |
| Further information | Setting scale turned 180° |
| Kv value [m³/h] | 1.9 m³/h |
| Max. pressure on sensor [bar] | 25 bar |
| Max. pressure on sensor [psig] | 362.6 psig |
| Max. sensor temperature [°C] | 130 °C |
| Max. sensor temperature [°F] | 266 °F |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362.6 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Media | Aggressive media |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -13 °F |
| Opening configuration | Opens on rising sensor temp. |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 3/5 in |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a698bb81-6c39-4d14-a29f-0fc686728af9 |
| SCIP dossier product name | AVTA FJVA |
| Sensor size (Ø x L) [in] | 3/8 x 5 29/32 in |
| Sensor size (Ø x L) [mm] | 9.5 x 150 mm |
| Serviceable | Water valve spare parts |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | 10 °C |
| Temperature range [°F] [max] | 176 °F |
| Temperature range [°F] [min] | 50 °F |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 003N2153 003N2153 ES_003N0068.pdf | 1 Mbytes |
|
