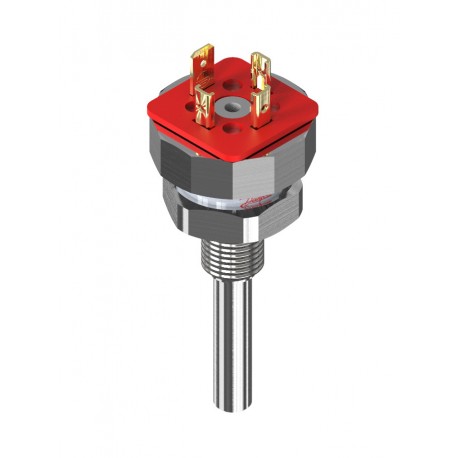

097U0041 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 3250
097U0041
DANFOSS INDUSTRIAL AUTOMATION
Temperature sensor, MBT 3250
Temperature sensor, MBT 3250, 100 mm, G,1/4
Temperature sensors - DANFOSS INDUSTRIAL AUTOMATION > Temperature Sensors Type MBT 3260 - DANFOSS INDUSTRIAL AUTOMATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
More info
▲Temperature range [°C]: -50 - 150, Sensor element type: NTC, Sensor elem. resistance [Ohm]: 10000, Protection tube material: AISI 316 Ti
Product details
| Gross weight | 0.108 Kg |
| Net weight | 0.104 Kg |
| Volume | 0.172 Liter |
| EAN | 5702428539043 |
| Gross weight | 0.108 Kg |
| Net weight | 0.104 Kg |
| Volume | 0.172 Liter |
| EAN | 5702428539043 |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Electrical conn. Male/Female | Male |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| In scope of WEEE and contain batteries | No |
| Insertion length [in] | 3.94 in |
| Insertion length [mm] | 100 mm |
| Insertion type | Fixed |
| Number of terminals [pcs] | 3 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 1/4 |
| Process connection standard | ISO 228-1-A |
| Process connection type | G |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| SCIP dossier no. | 1741c763-fa54-4cb9-973c-52e51e4079b9 |
| Sensor elem. resistance [Ohm] | 10000 |
| Sensor element [pc] | 1 pc |
| Sensor element type | NTC |
| Sensor Insert | Exchangeable |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | MBT 3250 |
| Type designation | MBT 3250-9900-100-119 |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Electrical conn. Male/Female | Male |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| In scope of WEEE and contain batteries | No |
| Insertion length [in] | 3.94 in |
| Insertion length [mm] | 100 mm |
| Insertion type | Fixed |
| Number of terminals [pcs] | 3 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 1/4 |
| Process connection standard | ISO 228-1-A |
| Process connection type | G |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| SCIP dossier no. | 1741c763-fa54-4cb9-973c-52e51e4079b9 |
| Sensor elem. resistance [Ohm] | 10000 |
| Sensor element [pc] | 1 pc |
| Sensor element type | NTC |
| Sensor Insert | Exchangeable |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | MBT 3250 |
| Type designation | MBT 3250-9900-100-119 |
| Wires [pcs] | 2 pc |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN.pdf | 28 Mbytes |
|
| PDF CATALOG DANFOSS TEMPERATURE SENSORS EN.pdf | 8 Mbytes |
|
| 097U0041 097U0041 EN_084Z2451.pdf | 1 Mbytes |
|
