![084Z4151 DANFOSS CONTROLES INDUSTRIALES Temperature range [°C]: -50 200, Conex. elect.: Bayonet, Connected s..](https://www.electricautomationnetwork.com/1674270-large_default/084z4151-danfoss-controles-industriales-temperature-range-c-50-200-conex-elect-bayonet-connected-s.jpg "084Z4151 DANFOSS CONTROLES INDUSTRIALES Temperature range [°C]: -50 200, Conex. elect.: Bayonet, Connected s..")
View larger
![084Z4151 DANFOSS CONTROLES INDUSTRIALES Temperature range [°C]: -50 200, Conex. elect.: Bayonet, Connected s..](https://www.electricautomationnetwork.com/1674270-thickbox_default/084z4151-danfoss-controles-industriales-temperature-range-c-50-200-conex-elect-bayonet-connected-s.jpg "084Z4151 DANFOSS CONTROLES INDUSTRIALES Temperature range [°C]: -50 200, Conex. elect.: Bayonet, Connected s..")

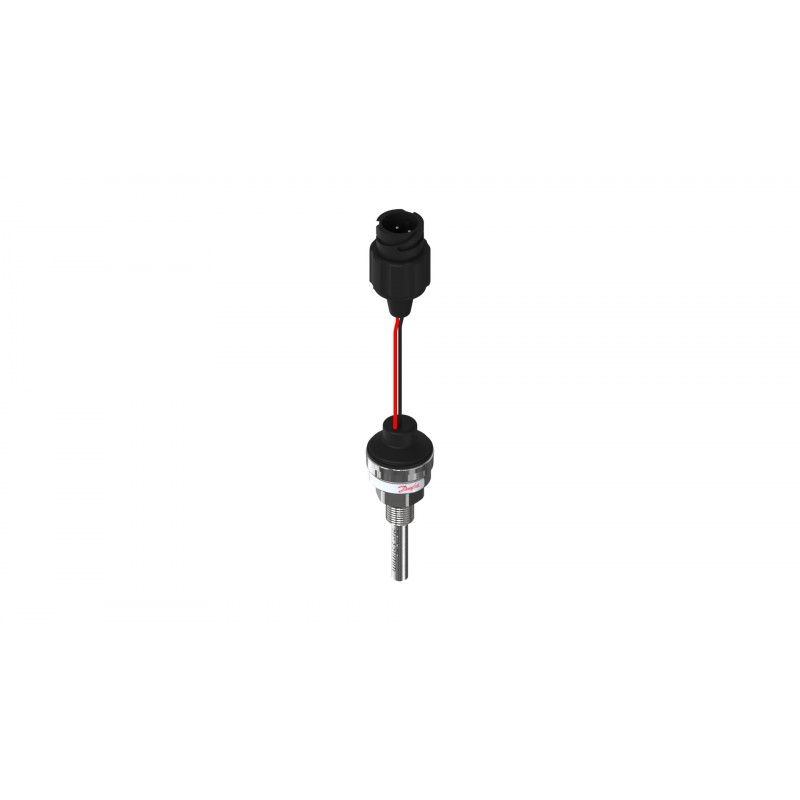

084Z4151 DANFOSS CONTROLES INDUSTRIALES Temperature range [°C]: -50 200, Conex. elect.: Bayonet, Connected s..
084Z4151
DANFOSS INDUSTRIAL AUTOMATION
Temperature range [°C]: -50 - 200, Conex. elect.: Bayonet, Connected size. Elect.: 4 pin, Pipe protection material: AISI 316 TI
Temperature transmitter, MBT 5560, 50 mm, M,14x1.5
Temperature switches - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Temperature range [°C]: -50 - 200, Electrical connection: Bayonet, Electrical connection size: 4 pin, Protection tube material: AISI 316 TI
Product details
| Gross weight | 0.154 Kilogram |
| Net weight | 0.15 Kilogram |
| Volume | 0.519 Liter |
| EAN | 5702428481519 |
| Type | MBT 5560 |
| Product group | Sensors |
| Product Name Description | Temperature transmitter |
| Gross weight | 0.154 Kilogram |
| Net weight | 0.15 Kilogram |
| Volume | 0.519 Liter |
| EAN | 5702428481519 |
| Type | MBT 5560 |
| Product group | Sensors |
| Product Name Description | Temperature transmitter |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection material | AISI 316 Ti |
| Connection type | M |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Flying leads |
| Electrical connection | Bayonet |
| Electrical connection size | 4 pin |
| Electrical connection standard | DIN 72585 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| In scope of WEEE | No |
| Insertion length [in] | 1.97 in |
| Insertion length [mm] | 50 mm |
| Insertion type | Fixed |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 14x1.5 |
| Process connection standard | ISO 965 |
| Process connection type | M |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 13 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element tolerance | < ± 1% FS |
| Sensor element type | Pt |
| Sensor Insert | Fixed |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 10 V |
| Temperature range [°C] [max] | 200 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 392 °F |
| Temperature range [°F] [min] | -58 °F |
| Transmitter setting range [°C] [max] | 150 °C |
| Transmitter setting range [°C] [min] | -40 °C |
| Transmitter setting range [°F] [max] | 302 °F |
| Transmitter setting range [°F] [min] | -40 °F |
| Transmitter type | Integrated |
| Type designation | MBT 5560-0000-0050-FB-815 |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection material | AISI 316 Ti |
| Connection type | M |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Flying leads |
| Electrical connection | Bayonet |
| Electrical connection size | 4 pin |
| Electrical connection standard | DIN 72585 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| In scope of WEEE | No |
| Insertion length [in] | 1.97 in |
| Insertion length [mm] | 50 mm |
| Insertion type | Fixed |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 14x1.5 |
| Process connection standard | ISO 965 |
| Process connection type | M |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 13 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element tolerance | < ± 1% FS |
| Sensor element type | Pt |
| Sensor Insert | Fixed |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 10 V |
| Temperature range [°C] [max] | 200 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 392 °F |
| Temperature range [°F] [min] | -58 °F |
| Transmitter setting range [°C] [max] | 150 °C |
| Transmitter setting range [°C] [min] | -40 °C |
| Transmitter setting range [°F] [max] | 302 °F |
| Transmitter setting range [°F] [min] | -40 °F |
| Transmitter type | Integrated |
| Type designation | MBT 5560-0000-0050-FB-815 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| 084Z4151 084Z4151 ES_084Z4030.pdf | 1 Mbytes |
|
