View larger

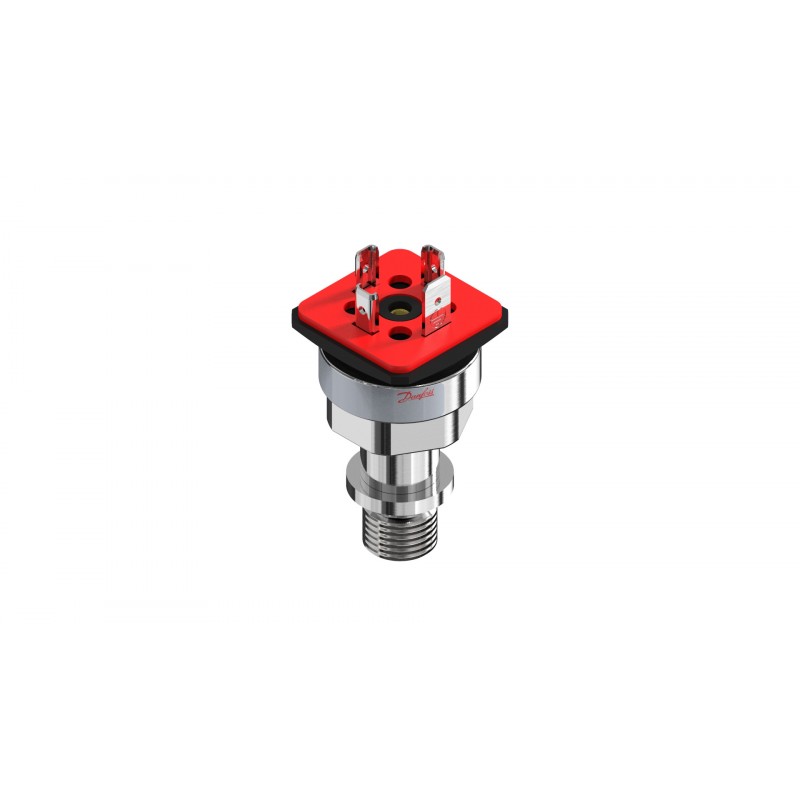

064G6642 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1900
064G6642
DANFOSS INDUSTRIAL AUTOMATION
Pressure transmitter, MBS 1900
Pressure transmitter, MBS 1900, 0.00 bar - 4.00 bar, 0.00 psi - 58.02 psi
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 1900, Pressure transmitter for air and water applications - DANFOSS INDUSTRIAL AUTOMATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Ratio metric, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 1900-1616-A0GB04-2
Product details
| Gross weight | 0.052 Kg |
| Net weight | 0.045 Kg |
| Volume | 0.113 Liter |
| EAN | 5702428828727 |
| Gross weight | 0.052 Kg |
| Net weight | 0.045 Kg |
| Volume | 0.113 Liter |
| EAN | 5702428828727 |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy @ ref. temp. ±FS [%] | 1 % |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | cURus |
| Approval comments | UL-873 |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | Angular connector |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| Fault Monitoring Demand | No |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702428828727 |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 80 °C |
| Medium temperature range [°C] [min] | 0 °C |
| Medium temperature range [°F] [max] | 176 °F |
| Medium temperature range [°F] [min] | 32 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 75 bar |
| Overload pressure max. [psi] | 1088 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 24 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 4 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 58.02 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 45 pc |
| Ratiometric of Vsupply [%] [max] | 90 % |
| Ratiometric of Vsupply [%] [min] | 10 % |
| REACH Candidate List substances | No |
| Reference temperature [°C] | 20 °C |
| Reference temperature [°F] | 68 °F |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 1900-1616-A0GB04-2 |
| Supply voltage [V] DC [max] | 6 V |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| TEB inside CTR ±FS [%] | 3 % |
| Type | MBS 1900 |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy @ ref. temp. ±FS [%] | 1 % |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | cURus |
| Approval comments | UL-873 |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | Angular connector |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| Fault Monitoring Demand | No |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702428828727 |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 80 °C |
| Medium temperature range [°C] [min] | 0 °C |
| Medium temperature range [°F] [max] | 176 °F |
| Medium temperature range [°F] [min] | 32 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 75 bar |
| Overload pressure max. [psi] | 1088 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 24 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 4 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 58.02 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 45 pc |
| Ratiometric of Vsupply [%] [max] | 90 % |
| Ratiometric of Vsupply [%] [min] | 10 % |
| REACH Candidate List substances | No |
| Reference temperature [°C] | 20 °C |
| Reference temperature [°F] | 68 °F |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 1900-1616-A0GB04-2 |
| Supply voltage [V] DC [max] | 6 V |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| TEB inside CTR ±FS [%] | 3 % |
| Type | MBS 1900 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN.pdf | 28 Mbytes |
|
| PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes |
|
| 064G6642 064G6642 EN_064G6564.pdf | 623 Kbytes |
|
