064G6546
DANFOSS INDUSTRIAL AUTOMATION
1

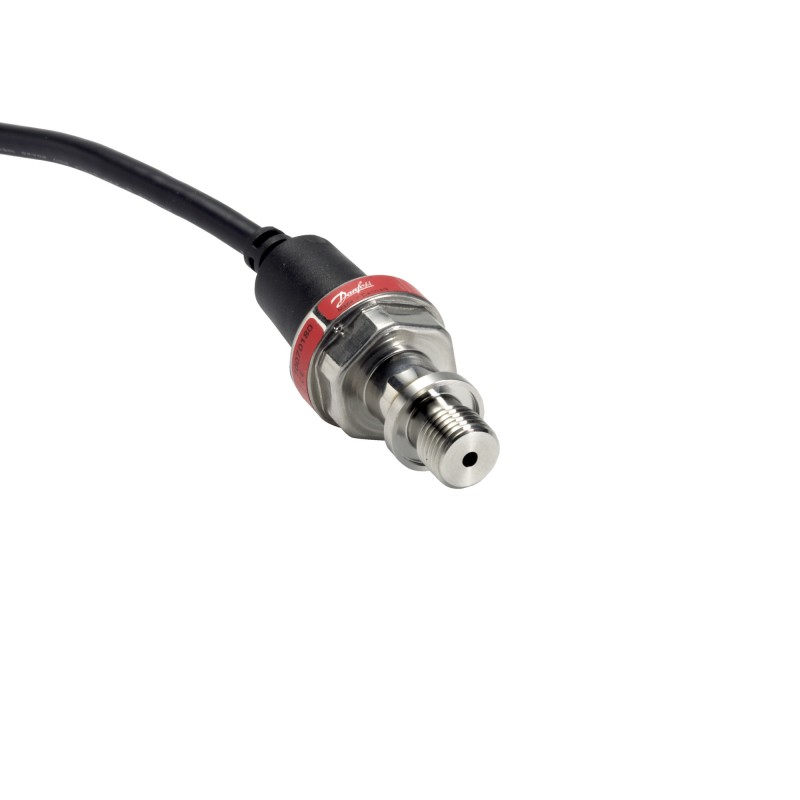

Pressure transmitter, MBS 1900
Pressure transmitter, MBS 1900, 0.00 bar - 10.00 bar, 0.00 psi - 145.04 psi
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 1900, Pressure transmitter for air and water applications - DANFOSS INDUSTRIAL AUTOMATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Cable, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 1900-2011-A3AB04-0
Gross weight | 0.195 Kg |
Net weight | 0.159 Kg |
Volume | 1.261 Liter |
EAN | 5702423281312 |
Gross weight | 0.195 Kg |
Net weight | 0.159 Kg |
Volume | 1.261 Liter |
EAN | 5702423281312 |
+ supply | Red |
- common | Black |
Accuracy @ ref. temp. ±FS [%] | 1 % |
Accuracy, typical [±FS%] | 1 % |
Ambient temperature range [°C] [max] | 80 °C |
Ambient temperature range [°C] [min] | -20 °C |
Ambient temperature range [°F] [max] | 176 °F |
Ambient temperature range [°F] [min] | -4 °F |
Approval | cURus |
Approval comments | UL-873 |
Cable length [in] | 79 in |
Cable length [m] | 2 m |
Compensated temp. range [°C] [max] | 80 °C |
Compensated temp. range [°C] [min] | 0 °C |
Compensated temp. range [°F] [max] | 176 °F |
Compensated temp. range [°F] [min] | 32 °F |
Electrical conn. comments | Screened cable |
Electrical connection | Cable |
Enclosure rating IP | IP67 |
EU RoHS compliance | Yes |
Fault Monitoring Demand | No |
Flush diaphragm | No |
In scope of WEEE and contain batteries | No |
International Article Number | 5702423281312 |
Intrinsically safe | No |
Medium temperature range [°C] [max] | 80 °C |
Medium temperature range [°C] [min] | 0 °C |
Medium temperature range [°F] [max] | 176 °F |
Medium temperature range [°F] [min] | 32 °F |
Non-linearity BFSL [±FS%] | 0.5 % |
Output signal | Current |
Output signal [mA] [max] | 20 mA |
Output signal [mA] [min] | 4 mA |
Overload pressure max. [bar] | 75 bar |
Overload pressure max. [psi] | 1088 psi |
Packing format | Multi pack |
Pressure connection HEX [mm] | 24 mm |
Pressure connection notes | A |
Pressure connection size | 1/4 |
Pressure connection standard | EN 837 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [max] | 10 bar |
Pressure range [bar] [min] | 0 bar |
Pressure range [psi] [max] | 145.04 psi |
Pressure range [psi] [min] | 0 psi |
Pressure reference | Gauge (relative) |
Product group | Sensors |
Product Name Description | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 8 pc |
REACH Candidate List substances | No |
Reference temperature [°C] | 20 °C |
Reference temperature [°F] | 68 °F |
Response time max. [ms] | 4 ms |
Specification key | MBS 1900-2011-A3AB04-0 |
Supply voltage [V] DC [max] | 28 V |
Supply voltage [V] DC [max] | 28 V |
Supply voltage [V] DC [min] | 9 V |
Supply voltage [V] DC [min] | 9 V |
TEB inside CTR ±FS [%] | 3 % |
Type | MBS 1900 |
+ supply | Red |
- common | Black |
Accuracy @ ref. temp. ±FS [%] | 1 % |
Accuracy, typical [±FS%] | 1 % |
Ambient temperature range [°C] [max] | 80 °C |
Ambient temperature range [°C] [min] | -20 °C |
Ambient temperature range [°F] [max] | 176 °F |
Ambient temperature range [°F] [min] | -4 °F |
Approval | cURus |
Approval comments | UL-873 |
Cable length [in] | 79 in |
Cable length [m] | 2 m |
Compensated temp. range [°C] [max] | 80 °C |
Compensated temp. range [°C] [min] | 0 °C |
Compensated temp. range [°F] [max] | 176 °F |
Compensated temp. range [°F] [min] | 32 °F |
Electrical conn. comments | Screened cable |
Electrical connection | Cable |
Enclosure rating IP | IP67 |
EU RoHS compliance | Yes |
Fault Monitoring Demand | No |
Flush diaphragm | No |
In scope of WEEE and contain batteries | No |
International Article Number | 5702423281312 |
Intrinsically safe | No |
Medium temperature range [°C] [max] | 80 °C |
Medium temperature range [°C] [min] | 0 °C |
Medium temperature range [°F] [max] | 176 °F |
Medium temperature range [°F] [min] | 32 °F |
Non-linearity BFSL [±FS%] | 0.5 % |
Output signal | Current |
Output signal [mA] [max] | 20 mA |
Output signal [mA] [min] | 4 mA |
Overload pressure max. [bar] | 75 bar |
Overload pressure max. [psi] | 1088 psi |
Packing format | Multi pack |
Pressure connection HEX [mm] | 24 mm |
Pressure connection notes | A |
Pressure connection size | 1/4 |
Pressure connection standard | EN 837 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [max] | 10 bar |
Pressure range [bar] [min] | 0 bar |
Pressure range [psi] [max] | 145.04 psi |
Pressure range [psi] [min] | 0 psi |
Pressure reference | Gauge (relative) |
Product group | Sensors |
Product Name Description | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 8 pc |
REACH Candidate List substances | No |
Reference temperature [°C] | 20 °C |
Reference temperature [°F] | 68 °F |
Response time max. [ms] | 4 ms |
Specification key | MBS 1900-2011-A3AB04-0 |
Supply voltage [V] DC [max] | 28 V |
Supply voltage [V] DC [max] | 28 V |
Supply voltage [V] DC [min] | 9 V |
Supply voltage [V] DC [min] | 9 V |
TEB inside CTR ±FS [%] | 3 % |
Type | MBS 1900 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN.pdf | 28 Mbytes | |
PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes | |
064G6546 064G6546 EN_064G6564.pdf | 623 Kbytes |
